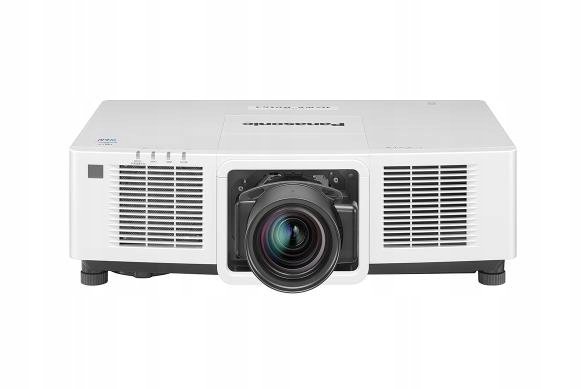

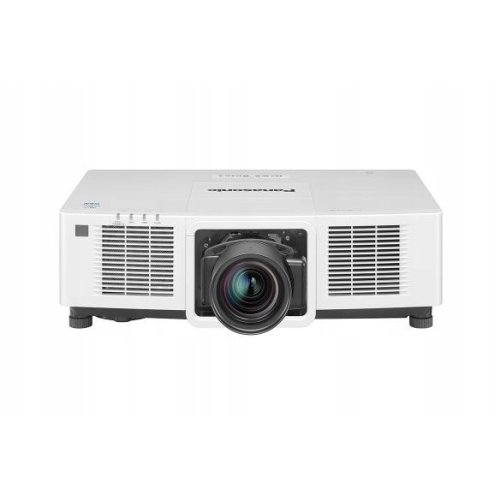

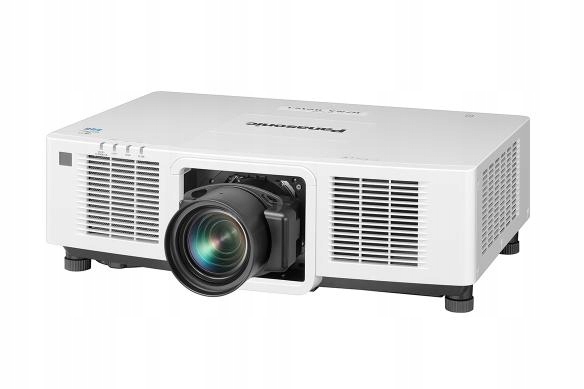

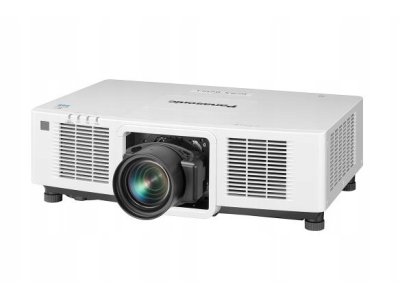

Projector type: LCD projectors
DLP™ chip | Panel size (mm): 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
DLP™ chip | Panel size (inch): 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
DLP™ chip | Display method: Transparent LCD panel (x 3, R/G/B)
DLP™ chip | Number of Pixels: 2,304,000 (1920 x 1200) pixels x 3 , total of 6,912,000 pixels
Light source: Laser diodes
Light output*1: 13,000 lm
Time until light output declines to 50 %*2: 20,000 hours (NORMAL) / 24,000 hours (ECO)
Resolution: 1920 x 1200 pixels
Screen size [diagonal] (mm): 1.78–25.4 m (70–1,000 in), 16:10 aspect ratio
Screen size [diagonal] (inch): 1.78–25.4 m (70–1,000 in), 16:10 aspect ratio
LENS: Optional powered zoom lenses
Lens shift | Vertical (from center of screen): TBD
Lens shift | Horizontal (from center of screen): TBD
Keystone correction range: Vertical: ±40°, Horizontal: ±15°
Keystone correction range with optional ET-UK20 Upgrade Kit: Vertical: ±40°, Horizontal: ±40°
Installation: Ceiling/floor, front/rear, free 360-degree installation
Terminals | SDI IN: BNC x 1: 3G/HD/SD-SDI input
Terminals | HDMI IN: HDMI 19-pin x 1 (Compatible with HDCP, Deep Color)
Terminals | DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminals | MULTI PROJECTOR SYNC IN: BNC x 1
Terminals | MULTI PROJECTOR SYNC OUT: BNC x 1
Terminals | SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | SERIAL OUT: D-sub 9-pin (male) x 1 for link control
Terminals | REMOTE 1 OUT: M3 stereo mini-jack x 1
Terminals | REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
Terminals | LAN: RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
Terminals | DIGITAL LINK/LAN: RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP, Deep Color)
Power supply: AC 100-240 V, 50/60 Hz
Power consumption: TBD
Cabinet materials: Molded plastic
Operation noise*1: 35 dB/TBD/TBD (NORMAL/ECO/QUIET) (TBD)
Dimensions (W x H x D) (mm): 650 x 185*3 x 440 mm (25 19/32˝ x 7 9/32˝*3 x 17 5/16˝ ) (Without lens) (Not including protruding parts)
Dimensions (W x H x D) (inch): 650 x 185*3 x 440 mm (25 19/32˝ x 7 9/32˝*3 x 17 5/16˝ ) (Without lens) (Not including protruding parts)
Operating environment: Operating temperature: 0–45 °C (32–113 °F)*5; Operating humidity: 10–80 % (no condensation)
Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
Note: 1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcastcontents, NORMAL Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 With legs at shortest position.*4 Average value. May differ depending on the actual unit. *5 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level.
Terminals | REMOTE 1 IN: M3 x 1 for wired remote control
Contrast Ratio*1: 3,000,000:1 (Full On/Full Off)
Terminals | USB: USB Connector (Type A) x 1 (Output 5 V/2 A)
Center-to-corner zone ratio*1: 90 %
Filter: Included (Estimated maintenance time: approx. 20,000 hours)
Terminal | RGB In: D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Weight*4: Approx. 22.3 kg (49.2 lbs) (TBD)
