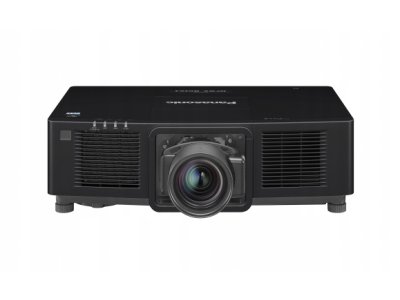

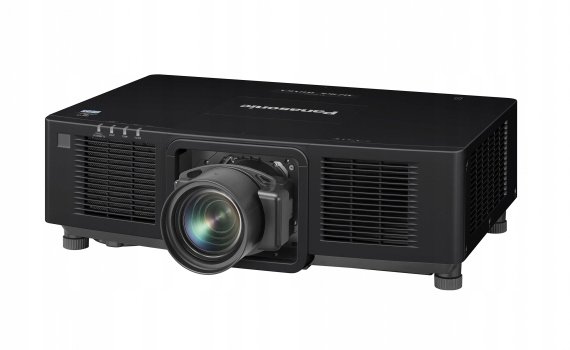

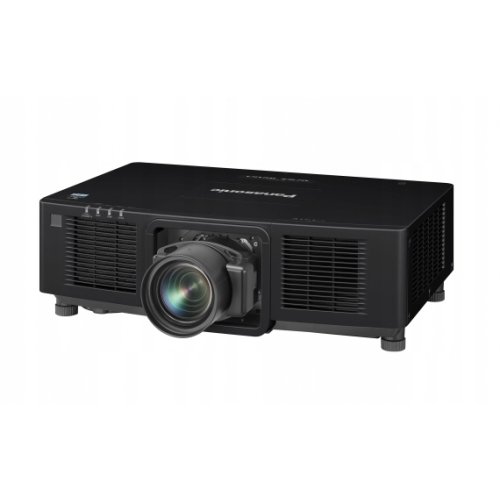

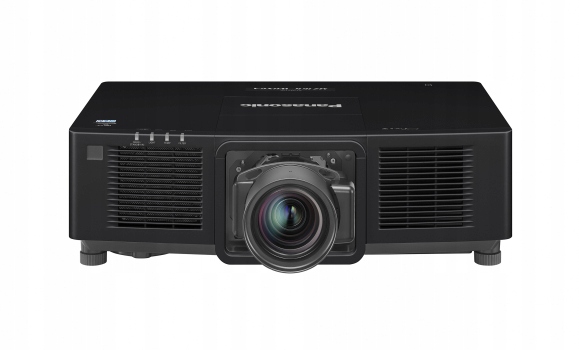

Projector type LCD projectors
Light Source Laser diodes
Light output*1 16,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1920 x 1200 pixels
Contrast Ratio*1 3,000,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to [3]
Screen size [diagonal] 2.03–12.7 m (80–500 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens Optional powered zoom lenses
Lens shift | Vertical (from center of screen) ±60 % (±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Lens shift | Horizontal (from center of screen) ±20 % (±19 % with ET-EMW200) (powered)
Keystone Correction Range Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±15° (±8° with ET-EMW200/ET-EMW300)
Keystone correction range with optional ET-UK20 Upgrade Kit Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±40° (±8° with ET-EMW200/ET-EMW300, ±15° with ET-EMW400/ET-EMW500)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals | SDI In BNC x 1: 3G/HD-SDI input
Terminals | HDMI In HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*3)
Terminals | DVI-D In DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminal | RGB In D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Serial/Multi Projector Sync In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial/Multi Projector Sync Out D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | REMOTE 1 IN D-sub 9-pin (female) × 1 for external control (parallel)
Terminals | Remote 2 In M3 x 1 for wired remote control
Terminals | Remote 2 Out M3 x 1 for link control (for wired remote control)
Terminals | LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net,
HDCP 2.2, Deep Color, 4K/60p signal input*3)
Terminals | DC Out USB Connector (Type A) x 1 (Output 5 V/2 A)
Power Supply AC 100-240 V, 50/60 Hz
Power Consumption 1,050 W
Cabinet Materials Molded plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1 38 dB (NORMAL) / 32 dB (Quiet)
Dimensions (W x H x D) 650 x 211*4 x 440 mm (25 19/32˝ x 8 5/16˝*4 x 17 21/64˝ ) (Without lens)
Weight*5 Approx. 22.3 kg (49.2 lbs)
Operating Environment Operating temperature: 0–45 °C (32–113 °F)*6; Operating humidity: 10–80 % (no condensation)
Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
Note *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcastcontents, NORMAL Mode, Dynamic Contrast [2], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 4K signals are converted to theprojector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. *4 With legs at shortest position. *5 Average value. May differ depending on the actual unit. *6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level,and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
Light output 16,000 lm
LCD Panel | Panel Size 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD Panel | Number of pixels 2,304,000 ( Pixels 1920 x 1200) pixels x 3
