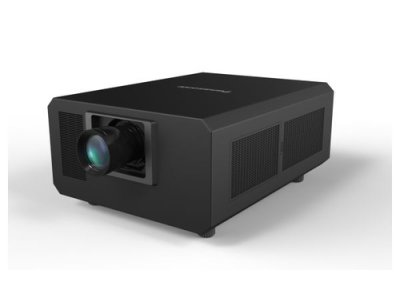

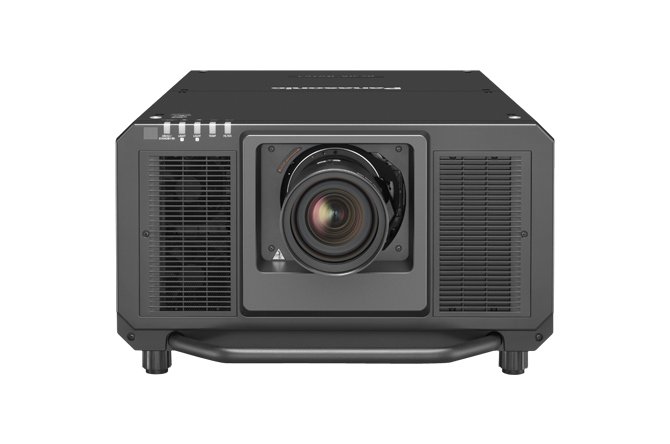

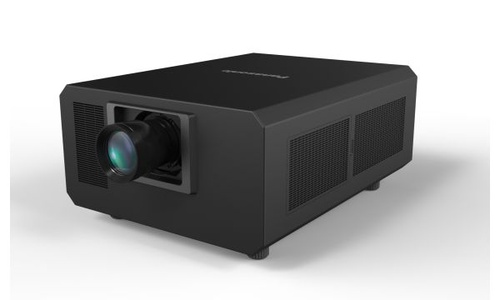

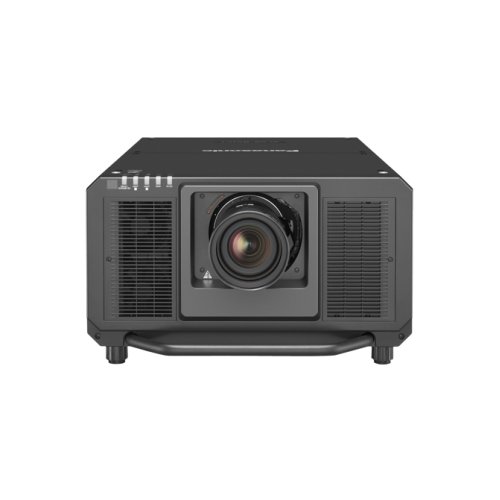

Projektor Panasonic PT-RZ31K

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Projektor Panasonic PT-RZ31K

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

Specifiations


Power supply AC 200-240 V, 50/60 Hz; AC 100-200 V, 50/60 Hz (brightness is restricted with lower voltage)
DLP™ chip Panel size 24.4 mm (0.96 in)
diagonal (16:10 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Refresh rate 120 Hz
Lens Optional powered zoom and fixed-focus lenses (no lens included with this model)
Light source Laser diodes
Screen size (diagonal) 1.78-25.4 m (70-1,000 in) with 16:10 aspect ratio
1.78-15.24 m (70-600 in) with the ET-D75LE8, 16:10 aspect ratio
3.05-15.24 m (120-600 in) with the ET-D75LE95, 16:10 aspect ratio
Brightness 31,000 lm (Center) / 30,000 lm (High Mode)
Center-to-corner uniformity 90 %
Contrast 20,000:1 (Full On/Full O , Dynamic Contrast Mode: 3)
Resolution 1,920 x 1,200 pixels
Scanning Frequency SDI SD-SDI SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
HD-SDI SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/25sF, 1080/30p
Dual-link HD-SDI SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/60i, 1080/50i,
1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p,
[X´Y´Z´ 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
3G-SDI SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p,
[YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p,
[X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
Dual-link 3G-SDI SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p,
2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p,
[RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
HDMI/DVI-D/DIGITAL LINK Compatible with HDCP, 480i*4, 576i*4, 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
640 x 400-WUXGA*5 (1920 x 1200) (compatible with non-interlaced signals only),
dot clock: 25-162 MHz
RGB fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz or lower
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)],
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)],
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p],
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i],
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p],
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p],
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p],		 fH: 15.63 kHz, fV: 50 Hz [576i (625i)],
fH: 31.25 kHz, fV: 50 Hz [576p (625p)],
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p],
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i],
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF],
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p],
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/Y/C fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical (from center of screen) ±55 % (±44 % with the ET-D75LE6,
+68 - +78 % with the ET-D75LE95) (powered)
Horizontal (from center of screen) ±20 % (±15 % with the ET-D75LE6,
±12 % with the ET-D75LE95) (powered)
Keystone correction range Vertical : ±40° (±22° with the ET-D75LE50, ±28° with the ET-D75LE6,
horizontal: ±15°
Keystone correction range
with optional Upgrade Kit ET-UK20		 Vertical: ±45° (±40° with the ET-D75LE10/ET-D75LE20,
±22° with the ET-D75LE50, ±28° with the ET-D75LE6),
horizontal: ±40° (±15° with the ET-D75LE50/ET-D75LE6),
Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
Installation Ceiling/floor, front /rear, free 360-degree installation
Terminals SDI 1 IN BNC x 1 (3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-A), Dual-link 3G-SDI (LINK 1))
SDI 2 IN BNC x 1 (3G/HD/SD-SDI input, Dual-link HD-SDI (LINK-B), Dual-link 3G-SDI (LINK 2))
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP)
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR/YC/VIDEO x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR x 1)
SYNC 1 IN/OUT / MULTI PROJECTOR SYNC IN  BNC x 1
SYNC 2 OUT /
MULTI PROJECTOR SYNC OUT 		 BNC x 1
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN/OUT M3 x 1 for wired remote control, link control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN/DIGITAL LINK RJ-45 x 1 for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net,
PJLink™ (class 1), Deep Color, HDCP
DC OUT USB Type A x 2 (for power supply DC 5V max. 900 mA)
Cabinet materials Metal (Partly Plastic Mold)
Dimensions (W x H x D) 706 x 420 x 1,290 mm (27-25/32 x 16-17/32 x 50-25/32 in) (with protrusion parts)
Weight Approx. 79 kg (174 lbs.)
Operating environment Operating temperature: 0-45 °C (32-113 °F)
Operating humidity: 10-80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,
Geometry Manager Pro (ET-UK20 Upgrade Kit, Smart PJ Control)
