Image Display
Display System 3-Chip 0.64" LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Minimum: 720 x 480
Maximum: 4096 x 2160
Maximum Brightness 5200 Lumens
Uniformity 85%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 3,000,000:1
Scan Horizontal: 15.6 to 91.1 kHz
Vertical: 24 to 100 Hz
Lens
Focus Manual
Lens f/1.6 - 2.12 (f = 15.30 - 24.64 mm)
Lens Shift Vertical: + 44%
Horizontal: ± 20%
Optical Zoom Manual: 1.6x
Throw Ratio 1.09 to 1.77:1 (30" Screen Size @ 2.23' / .68 m)
Projection Size 30 - 300" / .8 - 7.6 m
Features
Keystone Correction Vertical: ± 35°
Horizontal: ± 35°
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Remote Yes

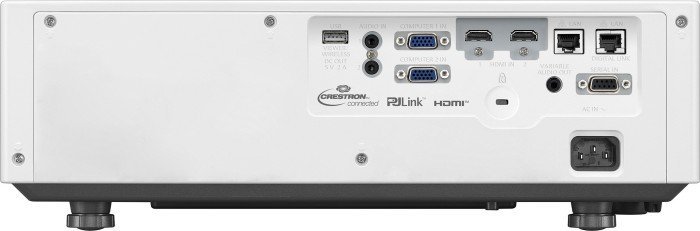

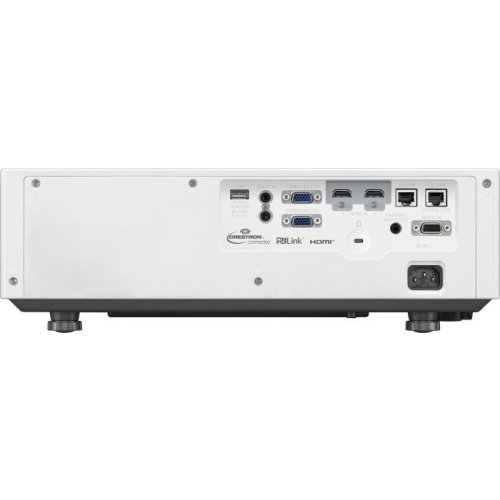

Input/Output Connectors
Inputs/Outputs 2 x HDMI (HDMI) Audio, Video Input
2 x DE-15/DB-15 (VGA) Video Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x DE-9/DB-9 Control Input
1 x RJ45 (HDBaseT) Audio, Control, Data, Power, Video Input
1 x RJ45 (Ethernet) Control Input
1 x USB-A Data, Power Input/Output
HDCP Support Version 1.4
General
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise Medium Brightness: 36 dB
Low Brightness: 26 dB
Security Cable Lock Slot
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Heat Dissipation Medium Brightness: 1045 BTU
Power Consumption Full Brightness: 305 W
Medium Brightness: 260 W
Low Brightness: 175 W
Standby Mode (Lamp Off): 0.5 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 20 to 80% (Non-Condensing)
Dimensions (W x H x D) 15.7 x 5.2 x 13.7" / 399.0 x 133.0 x 348.0 mm
Weight 14.3 lb / 6.5 kg
