Cena
Samsung

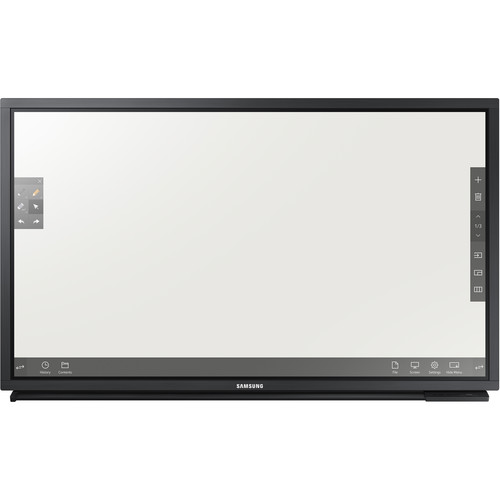

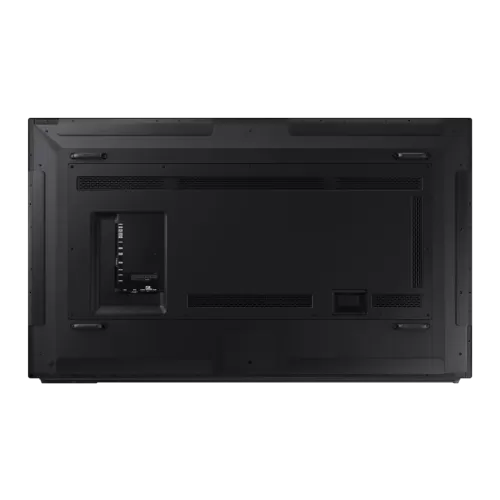

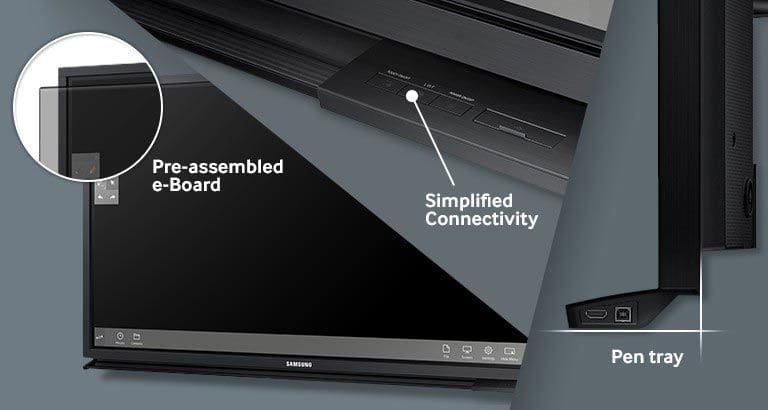

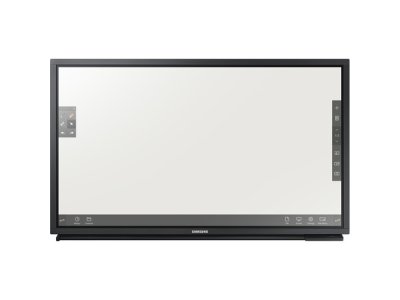

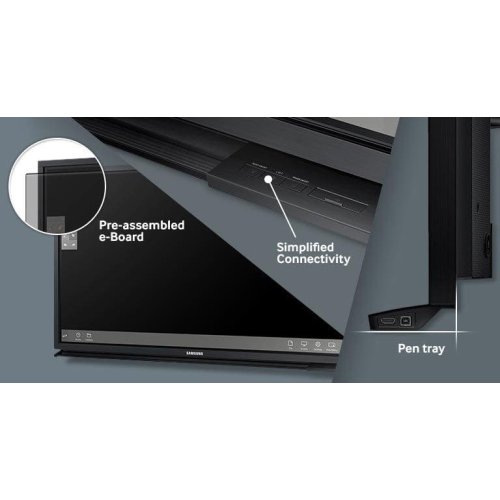

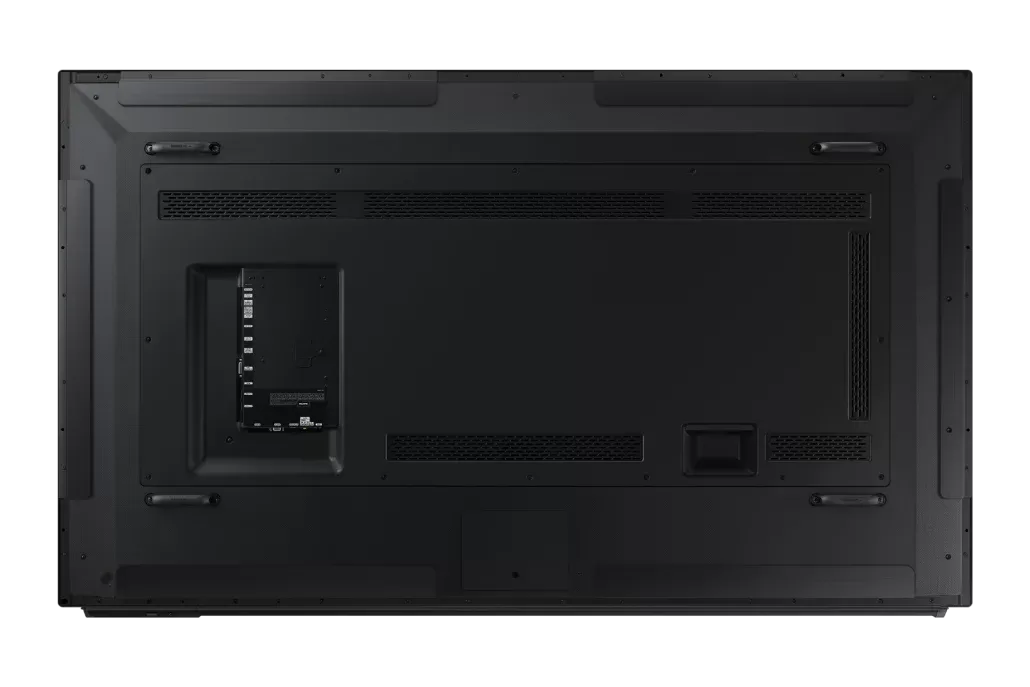

Monitor interaktywny Samsung SMART Signage DM82E-BM (LH82DMEMTBC/EN)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny

Panel

  • Diagonal Size82"
  • Type120Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.3135(H) x 0.9405 (V)
  • Active Display Area(mm)1805.76(H) x 1015.74(V)
  • Brightness(Typ.)430 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)8ms
  • Display Colors10bit Dithering - 1.07Billion
  • Color Gamut0.68
  • Haze2%

Display

  • Dynamic C/R50,000:1
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

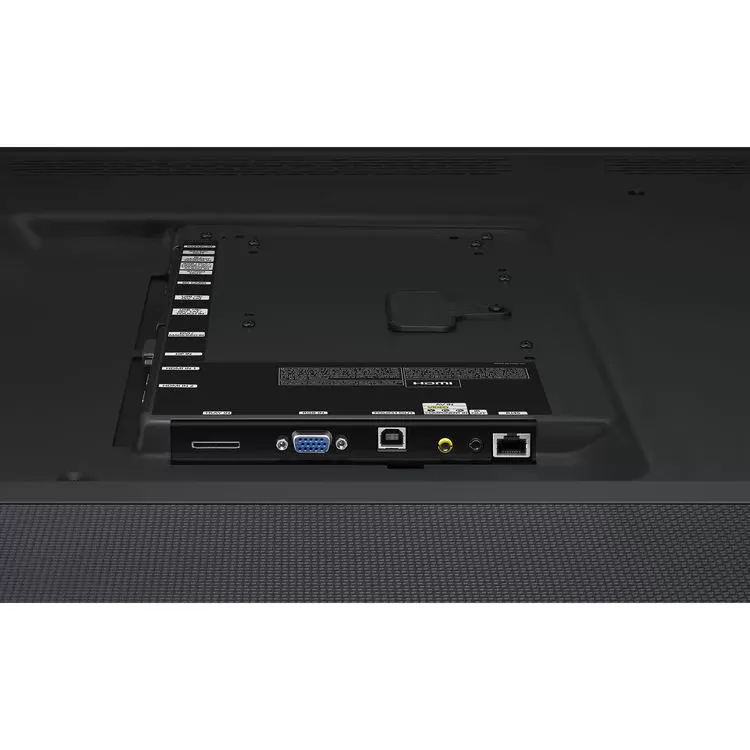

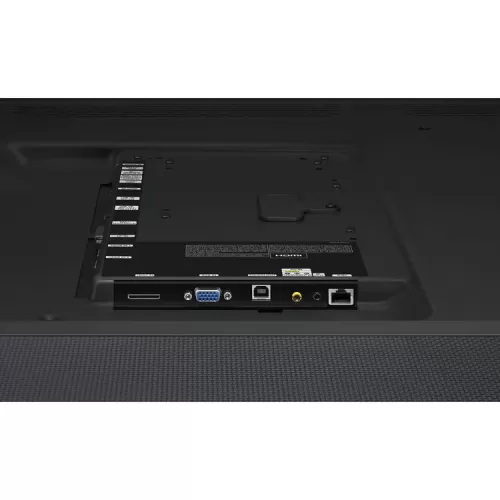

Connectivity

Input
  • RGBAnalog D-SUB, DVI-D, Display Port 1.2
  • VideoRear: HDMI1, HDMI2, Front Connectivity Box: HDMI3 Component(CVBS Common)
  • AudioStereo mini Jack
  • UsbRear: USB 2.0 X 1, Touch in X 1, Front Connectivity Box: USB 2.0 X 2, Touch out (USB Upstream)
Output
  • RGBN/A
  • VideoN/A
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out) thru stereo jack, RJ45
  • External SensorIR, Ambient Light
  • TunerN/A

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]495.0
  • Typical[W/h]329.0
  • BTU(Max)1687.95
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1911.8 X 1121.7 X 140 (178 Handle)
  • Package2069 X 1280 X 513
Weight (kg)
  • Set78.2
  • Package94.6
  • VESA Mount (mm)600 * 400 (mm)
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeEmbbeded, SBB(Attachable), PIM(Attachable)
  • Bezel Width (mm)51.9

Operation

  • Recommended Usage Hours24/7
  • Operating Temperature 0.0  ℃  ~   40.0   ℃
  • Humidity 10.0  %  ~   80.0   %

Feature

  • Key FeaturesSlim & Light LFD with Built-in MagicInfo Player S3, MagicIWB S2, SSSP 3.0
Special Features
  • H/W N/A
  • S/W N/A
Internal Player
  • ProcessorCortex-A9 1GHz Quad Core CPU
  • On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed1GHz CPU Quad
  • Main Memory Interface1.5GB Dual 48bit DDR3-933 (1866MHz)
  • Graphics2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
  • Storage (FDM)8GB (2GB Occupied by O/S, 5.35GB Available)
  • MultimediaVideo Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO PortsUSB 2.0 x 3, Touch in X 1, Touch out X 2
  • Operating SystemSamsung Proprietary OS(VDLinux)

Certification

  • SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
  • EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
  • EnvironmentN/A

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, COVER-JACK, Pen 2, Pen Tray
Optional
  • StandSTN-L7585F
  • Mount WMN8200SD
  • SpecialtyN/A

Media Player

Media Player
  • CPUSBB(Optional), PIM(Optional)
  • N/BSBB(Optional), PIM(Optional)
  • S/BSBB(Optional), PIM(Optional)
  • GPUSBB(Optional), PIM(Optional)
  • FDM/HDDSBB(Optional), PIM(Optional)
  • MemorySBB(Optional), PIM(Optional)
  • EthernetSBB(Optional), PIM(Optional)
  • Connectivity(USB)SBB(Optional), PIM(Optional)
  • Connectivity(Output)SBB(Optional), PIM(Optional)
  • Connectivity(Others)SBB(Optional), PIM(Optional)
