Panel
Diagonal Size
55"

Type
VA
Resolution
3840x2160(16:9)

Pixel Pitch(mm)
0.315 x 0.315
Active Display Area(mm)
1209.6(H) x 680.4(V)
Brightness(Typ.)
500 nit

Contrast Ratio
4000:1 (* IPS - 1200:1)
Viewing Angle(H/V)
N/A

Color Gamut
92% (DCI-P3, CIE 1976)
Operation Hour
24/7

Haze
Non-Glare
Sound
Speaker Type
10W 2ch

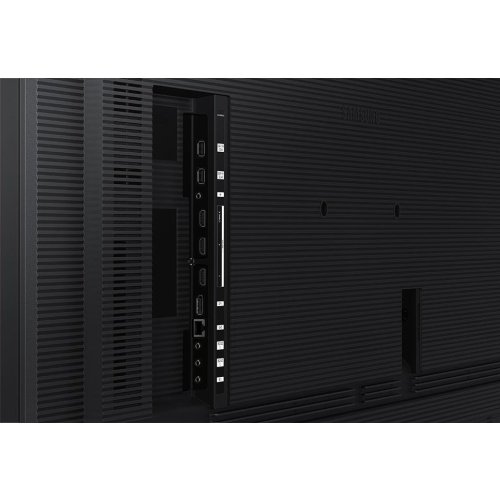

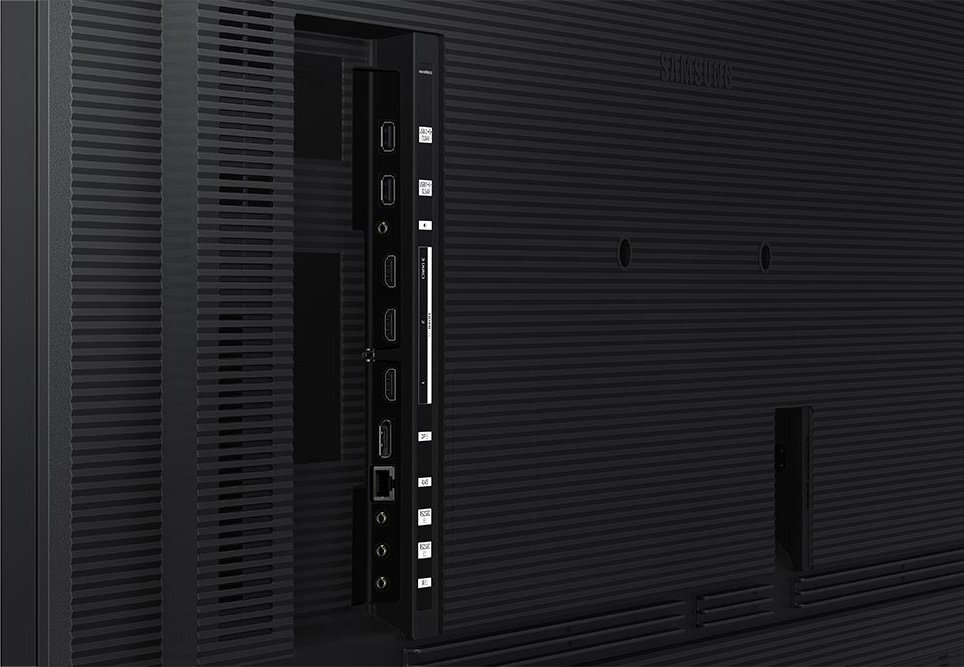

Connectivity
Input
Video
DP 1.2 (1), HDMI 2.0 (3)

HDCP
HDCP2.2
USB
USB 2.0 x 2
Output
Audio
Stereo mini Jack
External Control
RS232C(in/out), RJ45

BT/WiFi
Yes
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]
143.0

Typical[W/h]
108.0

Sleep mode
less than 0.5W
Mechanical Specification
Dimension (mm)
Set
1235.1 x 707.9 x 46.3
Package
1402 x 858 x 163
Weight (kg)
Set
18.1
Package
23.6
VESA Mount (mm)
200 X 200
Bezel Width (mm)
9.2mm(U/L/R), 11.2mm(B)
Operation
Operating Temperature
0 ℃ ~ 40 ℃

Humidity
10.0 % ~ 80.0 %
Feature
Key Features
N/A

Orientation
Landscape / Portrait

Remote Control
N/A
Special Features
H/W: Symmetric Design (same with QxR) Center IR Temperature Sensor Auto Level Wi-Fi(2.4/5.0GHz dual) & BT S/W : Workspace (Microsoft365/VMWare/RDP) Custom Home Auto Source Switching & Recovery Dicom Simulation Mode Director Mode SmartView+(PC) [end of march~] Upgradable Web-Engine Tizen Enterprise Platform Smart Calibration SmartView+(mobile) Video Conference Solution
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
16 GB

Multimedia
N/A

IO Ports
N/A
Operating System
Tizen 6.5
Certification
Safety
60950-1 / 62368-1

EMC
Class B

IP Rating
IP5x

Security
802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord RS232C(IN) Gender Remote Controller & Batteries
Optional
Stand
STN-L4355G

Mount
WMN4070SG (Land Only)WMN750ME

Specialty
CML400XR
Media Player
Media Player
Media Player
N/A
