Dane techniczne

Panel

Diagonal Size65"

TypeEdge LED BLU

Resolution3840*2160 (4K UHD)

Pixel Pitch(mm)0.372 x 0.372

Active Display Area(mm)1428.48 (H) x 803.52 (V)

Brightness(Typ.)350 nit

Contrast Ratio4000:1

Viewing Angle(H/V)178/178

Response Time(G-to-G)8ms(Typ.)

Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)

Color Gamut92% (DCI-P3, CIE 1976)

Operation Hour16/7

Haze2%

Display

Dynamic C/RMEGA

H-Scanning Frequency30 ~ 81kHZ

V-Scanning Frequency48 ~ 75HZ

Maximum Pixel Frequency594MHz

Sound

Speaker TypeBuilt in Speaker(10W + 10W)

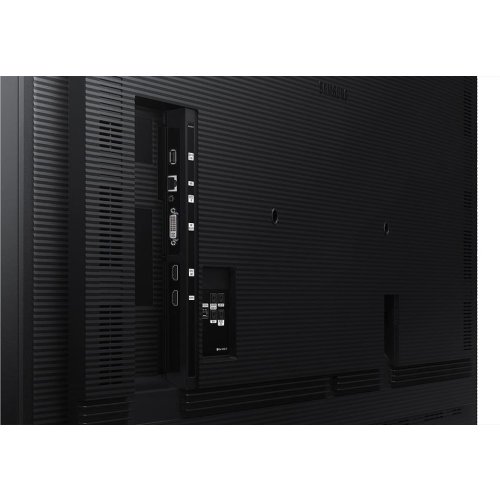

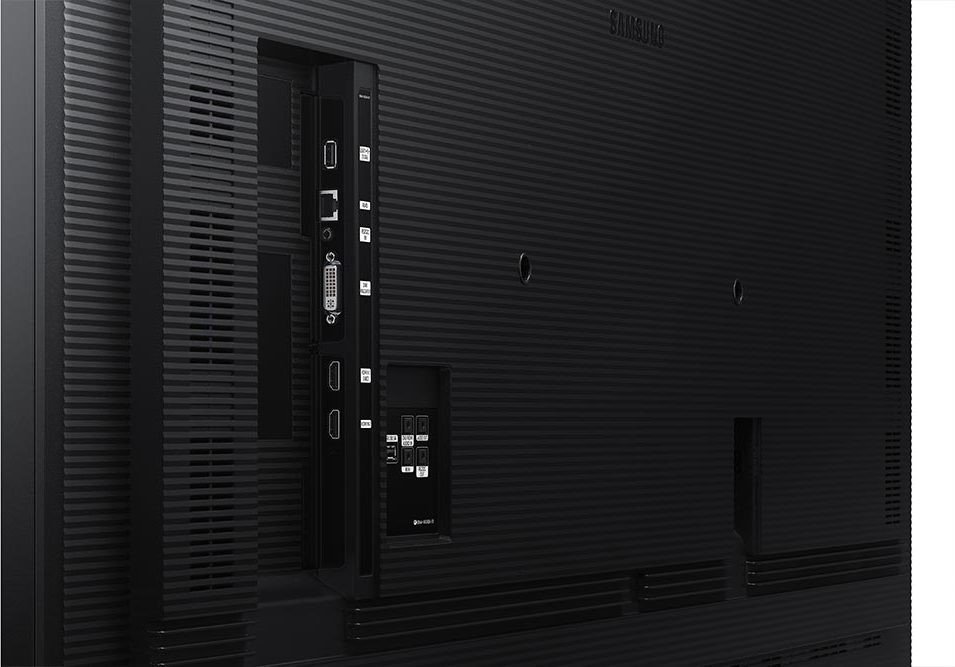

Connectivity

Input

RGBDVI-D

VideoHDMI 2.0 (2)

HDCPHDCP 2.2

AudioStereo Mini Jack, DVI/HDMI/Audio(Common)

USBUSB 2.0 x 2

Output

RGBN/A

VideoN/A

AudioStereo Mini Jack

Power OutN/A

External ControlRS232C(in/out) thru stereo jack, RJ45

External SensorIR

TunerN/A

Power

TypeInternal

Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]181.5

Typical[W/h]128

Rating[W/h]165

BTU(Max)618.9

Sleep mode0.5

Off modeN/A

Mechanical Specification

Dimension (mm)

Set1453.9 x 831.0 x 46.3

Package1611 x 973 x 185

Weight (kg)

Set24.9

Package33.3

VESA Mount (mm)400 X 400

Protection GlassN/A

Stand TypeNo

Media Player Option TypeN/A

Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)

Operation

Operating Temperature0  ℃  ~   40   ℃

Humidity10  %  ~   80   %

Feature

Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special FeaturesH/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

ProcessorCoretex A72 1.7GHz Quad-Core CPU

On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock Speed1.7GHz

Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

GraphicsGraphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO PortsUSB 2.0

Operating SystemTizen 4.0 (VDLinux)

Certification

Safety60950-1

EMCClass B

Accessory

IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
