Monitor Samsung SMART Signage DC49H (LH49DCHPLGC/EN)
Dane techniczne
Panel
Diagonal Size49"
Type60Hz E-LED BLU
Resolution1920*1080 (Full HD)
Pixel Pitch(mm)0.186 x 0.559
Active Display Area(mm)1073.78 x 604.00
Brightness(Typ.)350 nit
Contrast Ratio5000:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)8ms
Display Colors16.7 M
Color Gamut72%
Haze2%
Display
Dynamic C/RMEGA
H-Scanning Frequency30 ~ 81kHZ
V-Scanning Frequency48 ~ 75HZ
Maximum Pixel Frequency148.5MHz
Sound
Speaker TypeBuilt in Speaker(10W + 10W)

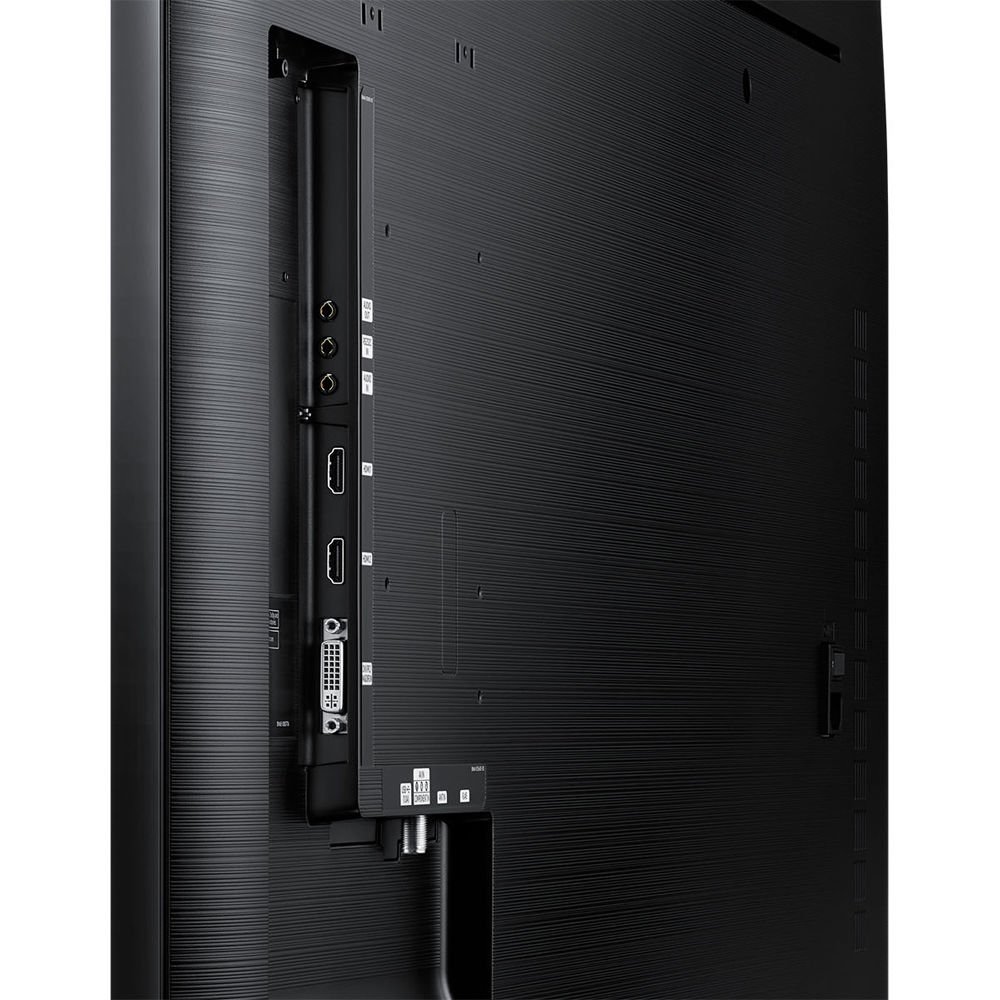

Connectivity
Input
RGBDVI-I
VideoHDMI 1.4 (2), Component(CVBS Common)
HDCPHDCP 1.4
AudioStereo Mini Jack, RGB/DVI/HDMI/Component Audio(Common)
USBUSB 2.0 x 1
Output
RGBN/A
VideoN/A
AudioStereo Mini Jack
Power OutN/A
External ControlRS232C(in) thru stereo jack, RJ45
External SensorN/A
TunerYes(only for NA/KR)
Power
TypeInternal
Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]99
Typical[W/h](W/W)52, (US)45, (KR)66
BTU(Max)337.59
Sleep mode0.5
Off mode0
Mechanical Specification
Dimension (mm)
Set1096.9 X 629.1 X 30.5
Package1214 x 721 x 157
Weight (kg)
Set13.1kg
Package17.4 kg
VESA Mount (mm)400*400mm
Mounting HoleN/A
Protection GlassN/A
Stand TypeFoot Stand (Optional)
Media Player Option TypeN/A
Bezel Width (mm)9.0 (Top/Side), 11.0 (Bottom)
Operation
Recommended Usage Hours16/7
Operating Temperature0.0 ℃ ~ 40.0 ℃
Humidity10.0 % ~ 80.0 %
Feature
Key FeaturesSlim & Light LFD with Built-in MagicInfo Lite
Special FeaturesH/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network
Internal Player
ProcessorMIPS 24K
On-Chip Cache MemoryL1 : 16KB/16KB L2 : 128KB
Clock Speed650MHz
Main Memory Interface512MB
GraphicsN/A
Storage (FDM)179MB
MultimediaN/A
IO PortsN/A
Operating SystemSamsung Proprietary OS(VDLinux)
Certification
SafetyCB (Europe) : IEC60950-1/EN60950-1 , CCC (China) : GB4943.1-2011 , PSB (Singapore ) : PSB+IEC60950-1 , IRAM (Argentina ) : IRAM+IEC60950-1 , SASO (Saudi Arabia ) : SASO+IEC60950-1 , BIS(India) : IEC60950-1 / IS13252 , NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998 , KC(Korea) : K 60950-1 , EAC(Russia) : EAC+IEC60950-1 , INMETRO(Brazil) : INMETRO+IEC60950-1 , BSMI(Taiwan) : BSMI+IEC60950-1 , RCM(Australia) : IEC60950-1/AS/NZS 60950-1 , CSA (Canada) : cUL , UL(USA) : cUL6095
EMCFCC (USA) Part 15, Subpart B Class A , CE (Europe) : EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003 , VCCI (Japan) : VCCI V-3 /2010.04 Class A , KCC/EK (Korea) : Tuner : KN13 / KN20,Tunerless : KN22 / KN24 , BSMI (Taiwan) : CNS13438 (ITE EMI) Class A /CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) , C-Tick (Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008,GB17625.1-2012 , GOST(Russia/CIS) : GOST R 51317 Series,GOST 22505-97, EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:
Accessory
IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter
Optional
StandSTN-L4655E
MountWMN4270SD
SpecialtyCML450H
Media Player
Media Player
Media PlayerSBB
