Strona głównaMONITORY MULTIMEDIALNESAMSUNGMonitor Samsung SMART Signage DM65D (LH65DMDPLGC/EN)
Samsung

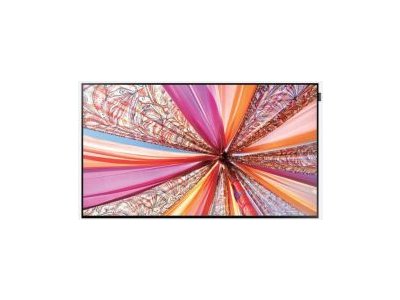

Monitor Samsung SMART Signage DM65D (LH65DMDPLGC/EN)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Monitor Samsung SMART Signage DM65D (LH65DMDPLGC/EN)

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

Panel

  • Diagonal Size65"
  • Type60Hz D-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.248(H) × 0.744(V)
  • Active Display Area(mm)1428.48(H) x 803.52(V)
  • Brightness(Typ.)450 nit
  • Contrast Ratio4000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)6.5ms
  • Display Colors10bit Dithering - 1.07Billion
  • Color Gamut72%
  • Haze2%

Display

  • Dynamic C/R50,000:1
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input
  • RGBAnalog D-SUB, DVI-D, Display Port 1.2
  • VideoHDMI1 Component(CVBS Common)
  • HDCPHDCP 1.4
  • AudioStereo mini Jack
  • USBUSB 2.0 x 1
Output
  • RGBDP1.2(Loop-out)
  • VideoN/A
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out) thru stereo jack, RJ45
  • External SensorIR, Ambient Light
  • TunerYes(only for NA/KR)

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]264
  • Typical[W/h]105(US), 200(W/W, Kor)
  • BTU(Max)900.24
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1467.4 X 848.0 X 55.9
  • Package1600 X 980 X 217
Weight (kg)
  • Set27.4
  • Package40.3
  • VESA Mount (mm)400*400mm
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeEmbbeded, SBB, PIM
  • Bezel Width (mm)18.0 (Top/Side), 23.5 (Bottom)

Operation

  • Recommended Usage Hours24/7
  • Operating Temperature N/A  ℃  ~   N/A   ℃
  • Humidity 10  %  ~   80   %

Feature

  • Key FeaturesSlim & Light LFD with Built-in MagicInfo Player S2, SSSP 2.0
  • Special Features H/W: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
Internal Player
  • ProcessorCortex-A9 1GHz Quad Core CPU
  • On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed1GHz CPU Quad
  • Main Memory Interface1.5GB Dual 48bit DDR3-933 (1866MHz)
  • Graphics2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
  • Storage (FDM)4GB (2GB Occupied by O/S, 2GB Available)
  • MultimediaVideo Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO PortsUSB 2.0
  • Operating SystemSamsung Proprietary OS(VDLinux)

Certification

  • SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
  • EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
Optional
  • StandSTN-L6500E
  • Mount WMN6575SD
  • SpecialtyCML450D (Ceiling Mount)

Media Player

Media Player
  • Media PlayerSBB, PIM (Optional)
