Dane techniczne

Panel

Diagonal Size32"

TypeLED BLU

Resolution1920*1080 (Full HD)

Pixel Pitch(mm)0.3637 x 0.3637

Active Display Area(mm)698.4(H) x 392.85(V)

Brightness(Typ.)1000 nit

Contrast Ratio3000:1

Viewing Angle(H/V)178/178

Response Time(G-to-G)8ms

Display Colors8 bit - 16.7M

Color Gamut72%

Haze0%

Display

Dynamic C/R100,000:1

H-Scanning Frequency30 ~ 81 kHz

V-Scanning Frequency48 ~ 75 Hz

Maximum Pixel Frequency148.5 MHz

Sound

Speaker TypeN/A

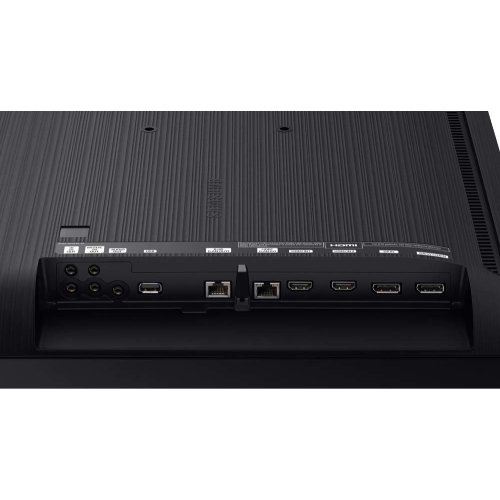

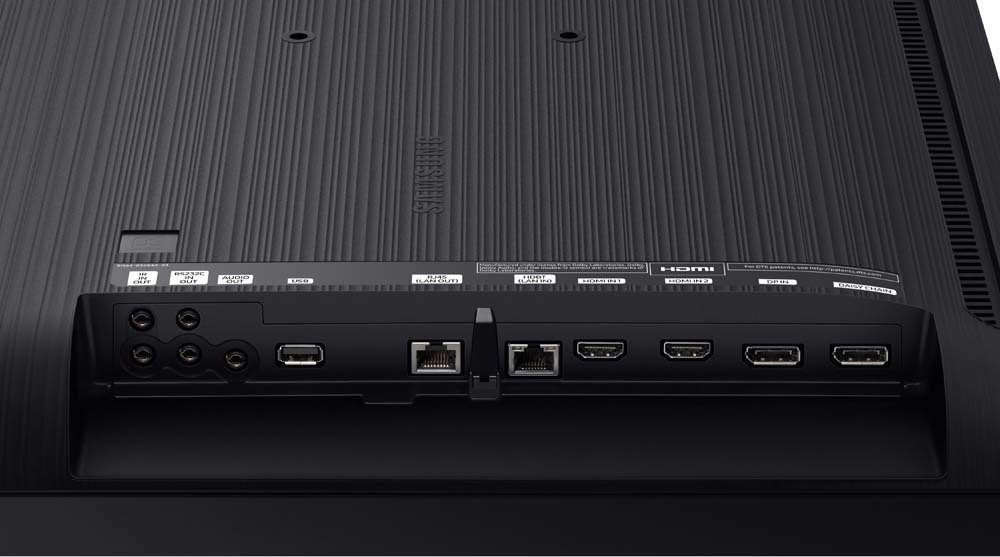

Connectivity

Input

RGBDisplay Port (1)

VideoHDMI (2)

HDCPHDCP 2.2

AudioN/A

USBUSB (1)

Output

RGBDP1.2 (Daisy Chain)

VideoYes

AudioStereo Mini Jack

Power OutN/A

External ControlRS232C (In/Out), RJ45 (In/Out), HDBaseT (In)

External SensorDetachable Type (IR)

TunerN/A

Power

TypeInternal

Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]110

Typical[W/h]W/W(EU) : 103 US : 105

BTU(Max)376.0

Sleep mode0.5W

Off mode0.5W

Mechanical Specification

Dimension (mm)

Set734.7 x 429.2 x 55.3

Package829 x 141 x 518

Weight (kg)

Set7.9kg

Package9.7kg

VESA Mount (mm)100 x 100 mm

Mounting HoleN/A

Protection GlassN/A

Stand TypeN/A

Media Player Option TypeN/A

Bezel Width (mm)14 / 14 / 14 / 14

Operation

Recommended Usage Hours16/7

Operating Temperature0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)

Humidity10.0  %  ~   80.0   %

Feature

Key FeaturesMagicInfo Player S4, SSSP 4.0, HD Base T

Special FeaturesPolarized Sun Glasses Viewable, Noise-less, Internal Temperature Sensor, Portrait / Landscape Installation

Internal Player

ProcessorCortex-A12 1.3GHz Quad Core CPU

On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB

Clock Speed1.3GHz CPU Quad

Main Memory Interface2.5GB 3 channel 96bit DDR3-933 (1866MHz)

Graphics2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES

Storage (FDM)8GB (3.75GB Occupied by O/S, 4.25GB Available, )

MultimediaVideo Decoder & Audio DSP (Decoder)

IO PortsUSB 2.0

Operating SystemTizen 2.4 (VDLinux)

Certification

Safety60950-1

EMCClass A

Accessory

IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, External IR Sensor

Optional

StandN/A

MountN/A

SpecialtyN/A

Media Player

Media Player

Media PlayerN/A
