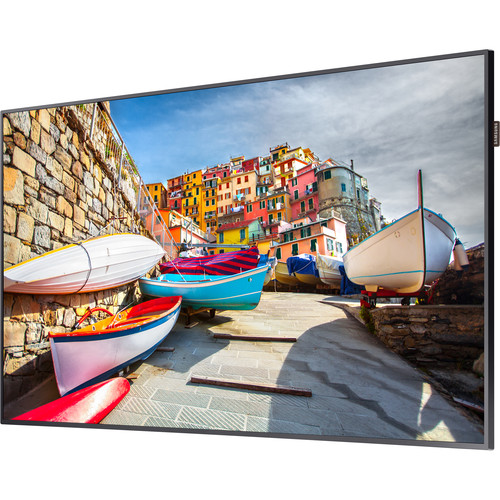

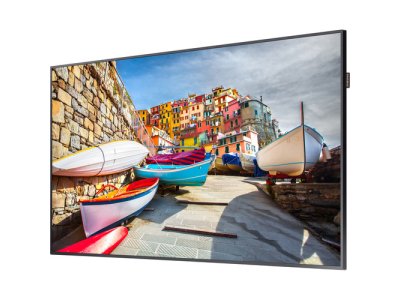

Monitor Samsung SMART Signage PM43H (LH43PMHPBGC/EN)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny

Panel

  • Diagonal Size43"
  • Type60Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.163(H) x 0.49(V)
  • Active Display Area(mm)940.89(H) x 529.25(V)
  • Brightness(Typ.)500 nit
  • Contrast Ratio3000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)8ms
  • Display Colors10bit Dithering - 1.07Billion
  • Color Gamut72%
  • Haze44%

Display

  • Dynamic C/RMega
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

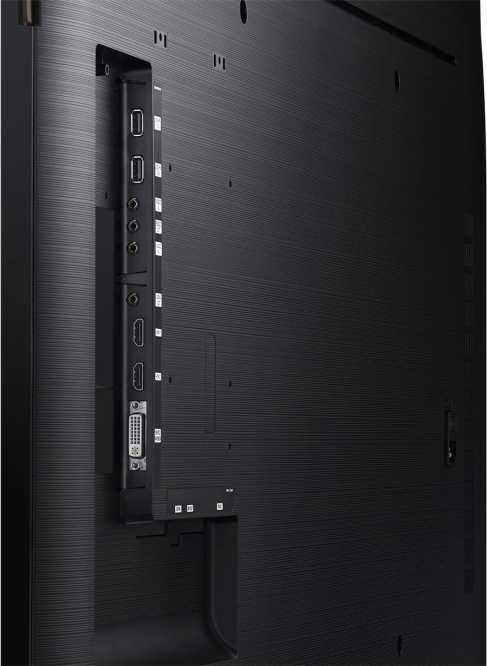

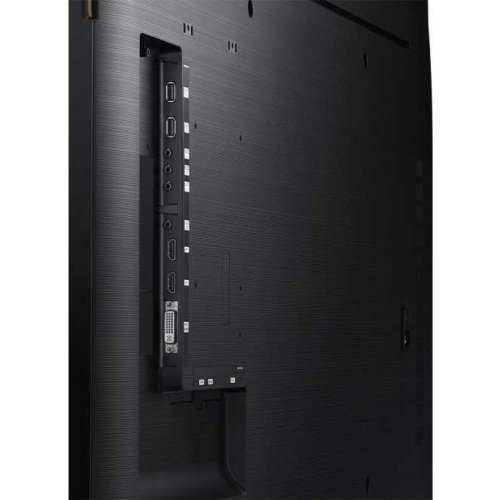

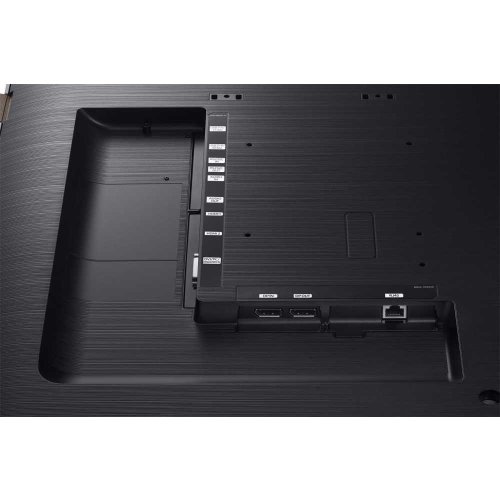

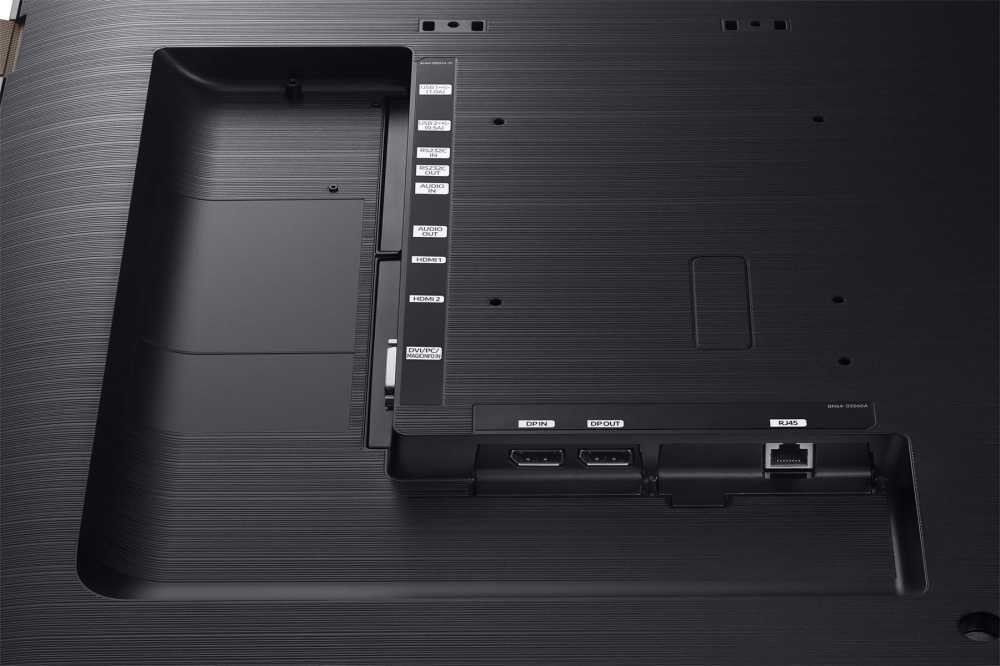

Connectivity

Input
  • RGBDVI-I(D-Sub Common), Display Port 1.2 (2)
  • VideoHDMI 2.0 (2) / HDCP 2.2
  • HDCPHDCP 2.2
  • AudioStereo mini Jack, RGB/DVI/HDMI
  • USBUSB 2.0 x 2
Output
  • RGBDP1.2(Loop-out)
  • VideoN/A
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out) thru Stereo Jack, RJ45
  • External SensorN/A
  • TunerYes(only for NA)

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]154
  • Typical[W/h]EU123, US 66, WW 123
  • BTU(Max)525.14
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set964.0 X 554.3 X 30.5
  • Package1077 x 661 x 154
Weight (kg)
  • Set9.5
  • Package13.3
  • VESA Mount (mm)200x200
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeN/A
  • Bezel Width (mm)9.0/9.0/11.0

Operation

  • Recommended Usage Hours24/7
  • Operating Temperature 0.0  ℃  ~   40.0   ℃
  • Humidity 10.0  %  ~   80.0   %

Feature

  • Key FeaturesSlim & Light Signage with Built-in MagicInfo S4, SSSP 4.0
  • Special Features H/W : Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall(external source only), Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Player
  • ProcessorCortex-A12 1.3GHz Quad Core CPU
  • On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed1.3GHz CPU Quad
  • Main Memory Interface2.5GB 3 channel 96bit DDR3-933 (1866MHz)
  • Graphics2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES
  • Storage (FDM)8GB (3.75GB Occupied by O/S, 4.25GB Available, )
  • Multimedia Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO PortsUSB 2.0
  • Operating SystemTizen 2.4 (VDLinux)

Certification

  • SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE
  • EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack
Optional
  • StandSTN-L3240E
  • Mount WMN4070SD
  • SpecialtyCML400XJ

Media Player

Media Player
  • Media PlayerSBB
