Panel
Diagonal Size
98"

Type
Direct LED BLU
Resolution
3840*2160 (4K UHD)

Pixel Pitch(mm)
0.562 x 0.562 (mm)
Active Display Area(mm)
2158.848(H) x 1214.352(V)
Brightness(Typ.)
350 nit

Contrast Ratio
1200:1
Viewing Angle(H/V)
178/178

Response Time(G-to-G)
8ms(Typ.)
Display Colors
16.7M(True Display)1.07B(Ditherd 10bit)
Color Gamut
72%
Operation Hour
24/7

Haze
25%
Display
Dynamic C/R
Mega
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
594MHz
Sound
Speaker Type
Built in Speaker(10W + 10W)
Connectivity

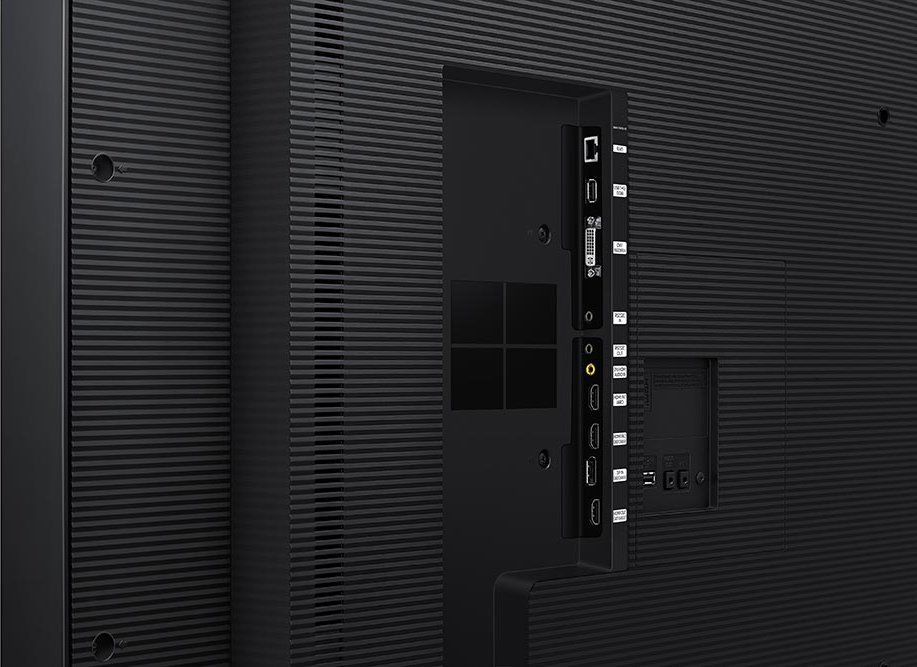

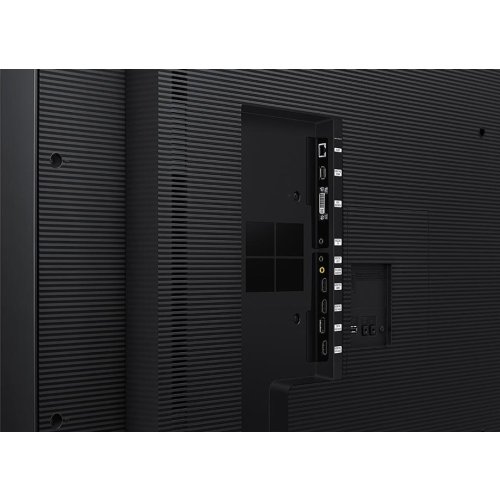

Input
RGB
DVI-D, Display Port 1.2 (1)
Video
HDMI 2.0 (2)

HDCP
HDCP2.2
Audio
Stereo mini Jack, DVI, HDMI
USB
USB 2.0 x 2
Output
RGB
HDMI 2.0 (Loop-out)
Audio
Stereo mini Jack
External Control
RS232C(in/out) thru stereo jack, RJ45

External Sensor
IR
Power
Type
Internal
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]
462.0

Typical[W/h]
360.0

Rating[W/h]
420.0
BTU(Max)
1576.41
Sleep mode
0.5
Mechanical Specification
Dimension (mm)
Set
2195.8 x 1250.8 x 96.5
Package
2369 x 1405 x 350
Weight (kg)
Set
83.0
Package
106.0
VESA Mount (mm)
800 x 400
Bezel Width (mm)
17.9
Operation
Operating Temperature
0 ℃ ~ 40 ℃

Humidity
10.0 % ~ 80.0 %
Feature
Key Features
UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Orientation
Landscape / Portrait

Remote Control
N/A
Special Features
H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Wi-Fi S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock Speed
1.7GHz

Main Memory Interface
2.5GB LPDDR4 1.5GHz 64bit
Graphics
Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports
USB 2.0
Operating System
Tizen 4.0 (VDLinux)
Certification
Safety
60950-1

EMC
Class A

Security
802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
-

Mount
WMN8200SG (Land Only)

Specialty
-
Media Player
Media Player
Media Player
N/A
