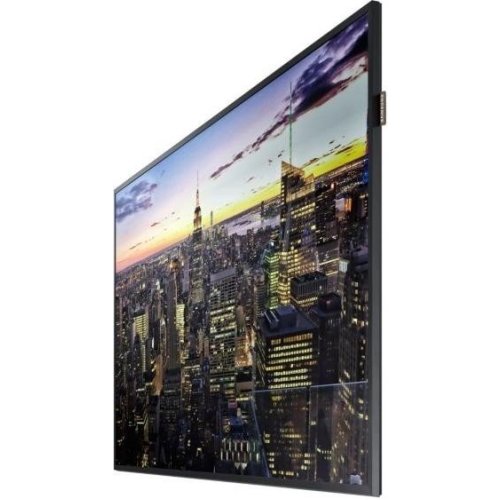

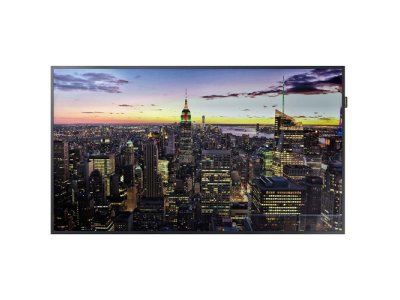

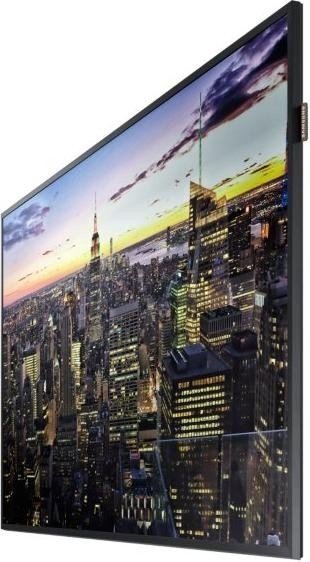

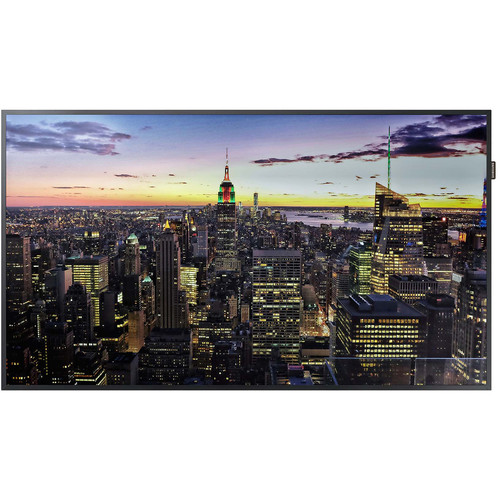

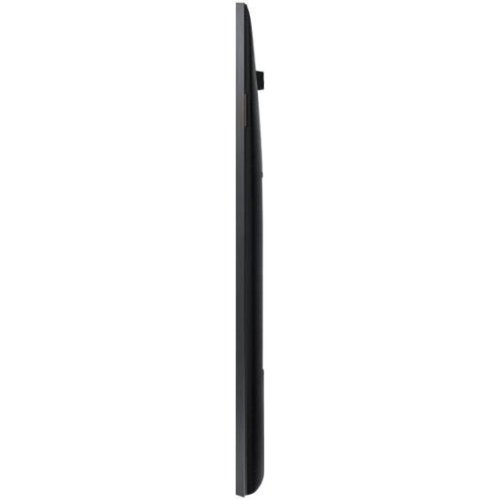

Monitor Samsung SMART Signage QM55H (LH55QMHPLGC/EN)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Monitor Samsung SMART Signage QM55H (LH55QMHPLGC/EN)

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

Panel

  • Diagonal Size55"
  • Type60Hz E-LED BLU
  • Resolution3840*2160 (4K UHD)
  • Pixel Pitch(mm)0.105 x 0.315 (mm)
  • Active Display Area(mm)1209.60(H) x 680.40(V)
  • Brightness(Typ.)500 nit
  • Contrast Ratio4000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)8ms (Typ)
  • Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)
  • Color Gamut72%
  • Haze25%

Display

  • Dynamic C/RMega
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency594MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

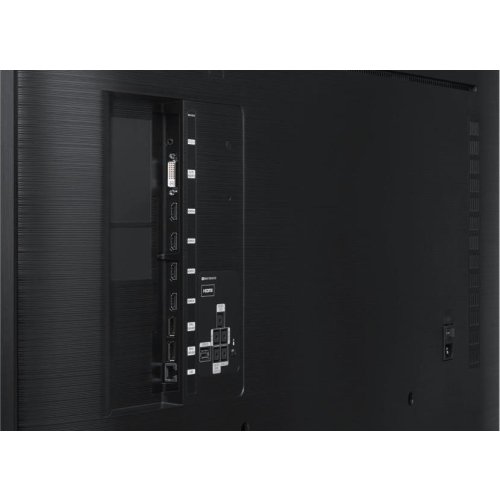

Connectivity

Input
  • RGBDVI-D, Display Port 1.2 (1)
  • VideoHDMI 2.0 (2)
  • HDCPHDCP2.2
  • AudioStereo mini Jack, DVI, HDMI
  • USBUSB 2.0 x 2
Output
  • RGBHDMI 2.0 (Loop-out)
  • VideoN/A
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out), RJ45
  • External SensorIR
  • TunerN/A

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]165
  • Typical[W/h]111
  • BTU(Max)N/A
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1235.3 X 710.4 X 36.8
  • Package1335.0 x 812.0 x 182.0
Weight (kg)
  • Set17.1
  • Package23.2
  • VESA Mount (mm)400x400
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeN/A
  • Bezel Width (mm)11.0/11.0/12.0

Operation

  • Recommended Usage Hours24/7
  • Operating Temperature 0.0  ℃  ~   40.0   ℃
  • Humidity 10.0  %  ~   80.0   %

Feature

  • Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0
  • Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • ProcessorCoretex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed1.7GHz Quad-Core CPU
  • Main Memory Interface3GB 3ch 64bit LPDDR4 1.6GHz
  • Graphics2D & 3D Graphic Accelerator Data Format : 32bpp Output resolution : 3840x2160p
  • Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • MultimediaVideo Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
  • IO PortsUSB 2.0
  • Operating SystemTizen 3.0 (VDLinux)

Certification

  • Safety60950-1
  • EMCClass A

Accessory

  • IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
  • StandSTN-L4655E
  • Mount WMN4270SD
  • SpecialtyCLM450D

Media Player

Media Player
  • Media PlayerSBB
