Panel
Diagonal Size
55"

Type
Edge LED BLU
Resolution
3840*2160 (4K UHD)

Pixel Pitch(mm)
0.315 x 0.315
Active Display Area(mm)
1209.6(H) x 680.4(V)
Brightness(Typ.)
500 nit

Contrast Ratio
4000:1
Viewing Angle(H/V)
178/178

Response Time(G-to-G)
8ms(Typ.)
Display Colors
16.7M(True Display)1.07B(Ditherd 10bit)
Color Gamut
92% (DCI-P3, CIE 1976)
Operation Hour
24/7

Haze
25%
Display
Dynamic C/R
MEGA
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
594MHz
Sound
Speaker Type
Built in Speaker(10W + 10W)
Connectivity

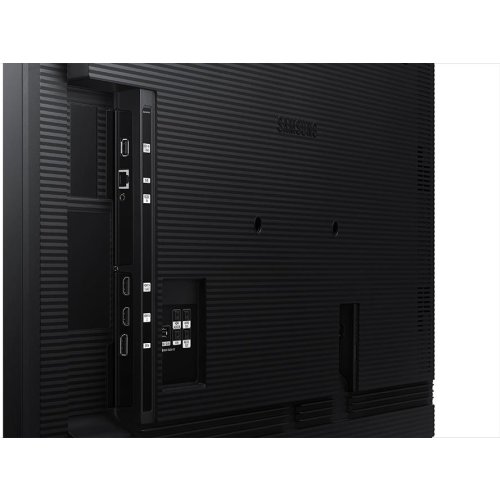

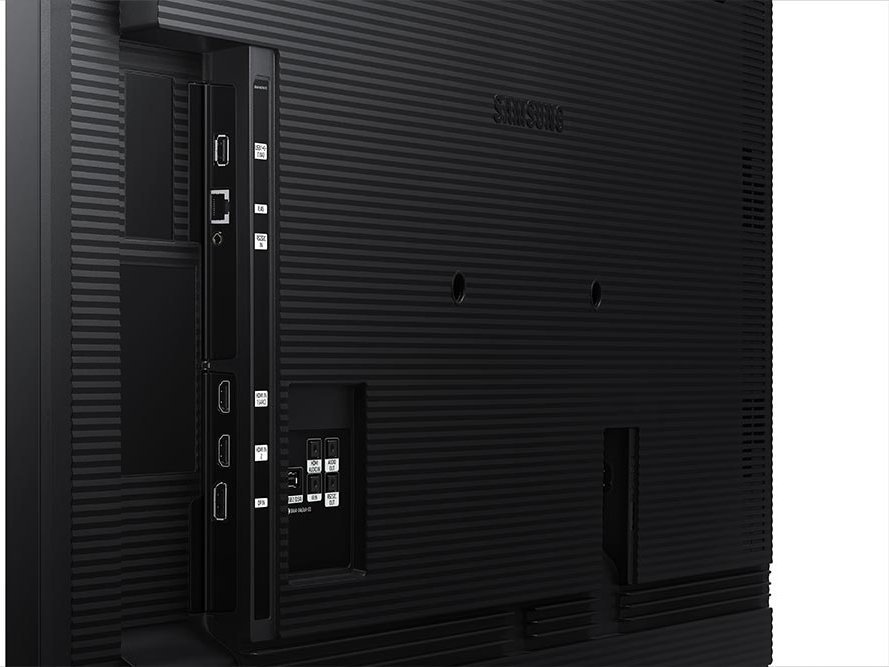

Input
RGB
Display Port 1.2 (1)
Video
HDMI 2.0 (2)

HDCP
HDCP2.2
Audio
Stereo Mini Jack, HDMI/Audio(Common)
USB
USB 2.0 x 2
Output
Audio
Stereo mini Jack
External Control
RS232C(in/out) thru stereo jack, RJ45

External Sensor
IR
Power
Type
Internal
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]
143.0

Typical[W/h]
108.0

Rating[W/h]
130.0
BTU(Max)
487.6
Sleep mode
0.5
Mechanical Specification
Dimension (mm)
Set
1235.1 x 707.9 x 46.3
Package
1402 x 858 x 163
Weight (kg)
Set
18.1
Package
23.6
VESA Mount (mm)
200 X 200
Stand Type
Foot Stand (Optional)
Bezel Width (mm)
9.2mm(U/L/R), 11.2mm(B)
Operation
Operating Temperature
0 ℃ ~ 40 ℃

Humidity
10.0 % ~ 80.0 %
Feature
Key Features
UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Orientation
Landscape / Portrait

Remote Control
N/A
Special Features
H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock Speed
1.7GHz

Main Memory Interface
2.5GB LPDDR4 1.5GHz 64bit
Graphics
Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO Ports
USB 2.0
Operating System
Tizen 4.0 (VDLinux)
Certification
Safety
60950-1

EMC
Class B

Security
802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
STN-L4355F

Mount
WMN4070SE (Land Only) WMN750ME

Specialty
CML400XK
Media Player
Media Player
Media Player
N/A
