Dane techniczne

Panel

Diagonal Size55"

TypeNew Edge

Resolution3840*2160 (4K UHD)

Pixel Pitch(mm)0.105 x 0.315

Active Display Area(mm)1209.6(H) x 680.4(V)

Brightness(Typ.)500 nit

Contrast Ratio4000:1

Viewing Angle(H/V)178/178

Response Time(G-to-G)8ms

Display Colors16.7M

Color Gamut72%

Haze25%

Display

Dynamic C/RMEGA

H-Scanning Frequency30 ~ 81kHZ

V-Scanning Frequency48 ~ 75HZ

Maximum Pixel Frequency594MHz

Sound

Speaker TypeBuilt in Speaker(10W + 10W)

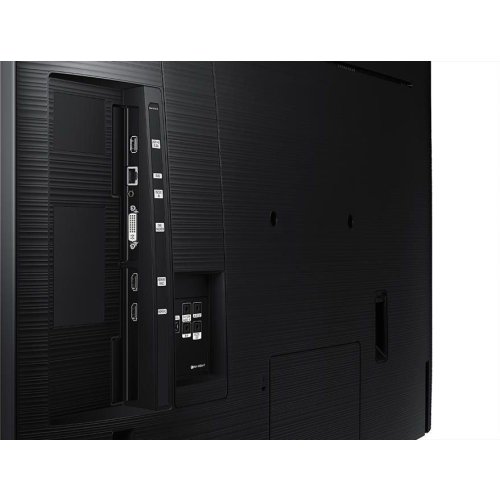

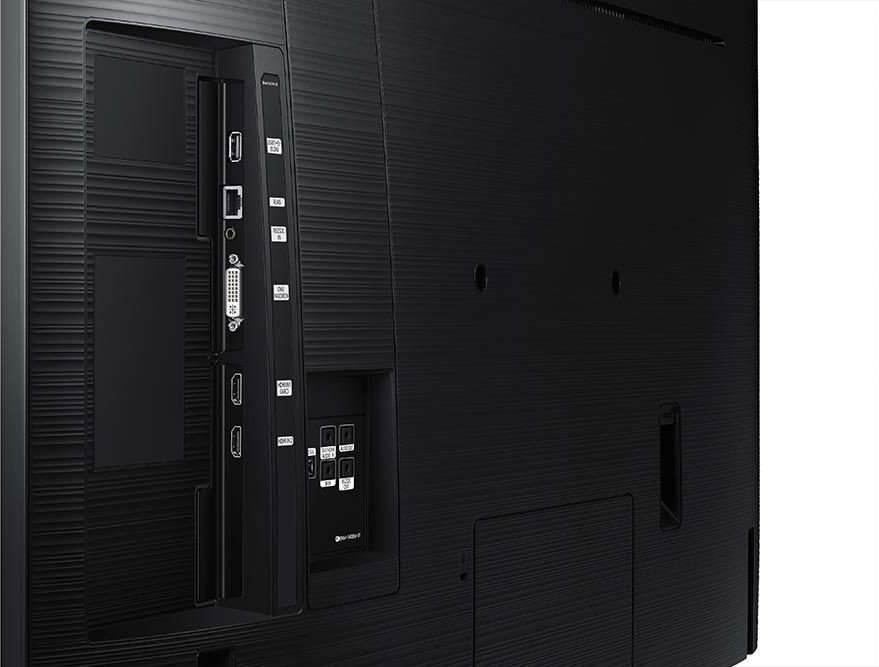

Connectivity

Input

RGBDVI-D, Display Port 1.2 (1)

VideoHDMI 2.0 (2)

HDCPHDCP2.2

AudioStereo mini Jack, DVI, HDMI

USBUSB 2.0 x 2

Output

RGBHDMI 2.0 (Loop-out)

VideoN/A

AudioStereo mini Jack

Power OutN/A

External ControlRS232C(in/out) thru stereo jack, RJ45

External SensorIR

TunerN/A

Power

TypeInternal

Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]N/A

Typical[W/h]N/A

BTU(Max)N/A

Sleep modeTBD

Off modeTBD

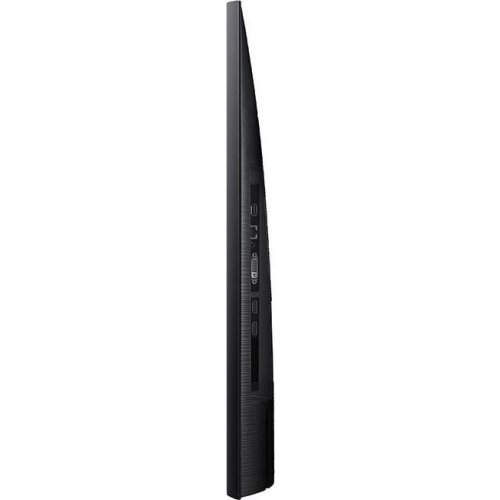

Mechanical Specification

Dimension (mm)

Set1238.6 X 714.2 X 59.0

Package1346 X 852 X 158

Weight (kg)

Set17.4

Package23

VESA Mount (mm)200 X 200

Mounting HoleN/A

Protection GlassN/A

Stand TypeFoot Stand (Optional)

Media Player Option TypeN/A

Bezel Width (mm)13.5(top,side), 17.7(bottom)

Operation

Recommended Usage Hours24/7

Operating Temperature0  ℃  ~   40   ℃

Humidity10  %  ~   80   %

Feature

Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special FeaturesH/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

ProcessorCoretex A72 1.7GHz Quad-Core CPU

On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock Speed1.7GHz

Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

GraphicsGraphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

IO PortsUSB 2.0

Operating SystemTizen 4.0 (VDLinux)

Certification

Safety60950-1

EMCClass A

Accessory

IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

StandNew Stand Accessory

MountWMN4070SE

SpecialtyTBD

Media Player

Media Player

Media PlayerN/A
