Panel
Diagonal Size
24"

Type
IPS
Resolution
1920*1080 (Full HD)

Pixel Pitch(mm)
0.2745 x 0.2745 mm
Active Display Area(mm)
527.04(H) x 296.46(V) mm
Brightness(Typ.)
1500 nit

Contrast Ratio
1000:1
Viewing Angle(H/V)
N/A

Color Gamut
72 %
Operation Hour
24/7

Haze
0%

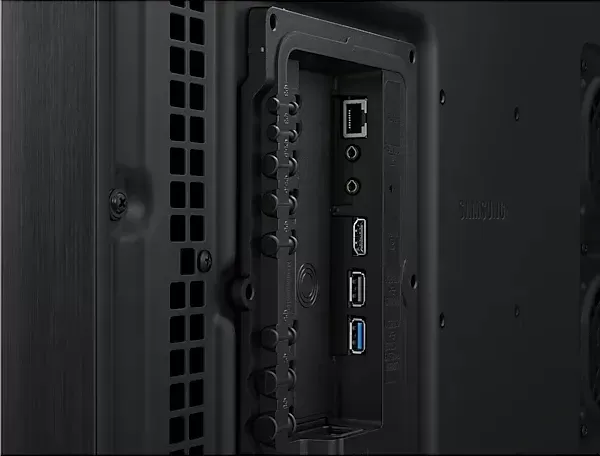

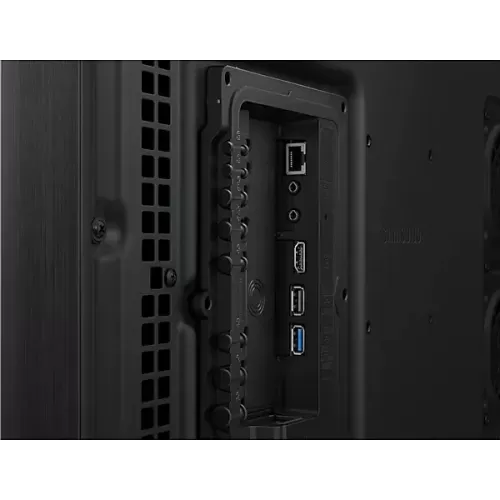

Connectivity
Input
Video
HDMI 2.0

HDCP
HDCP2.2

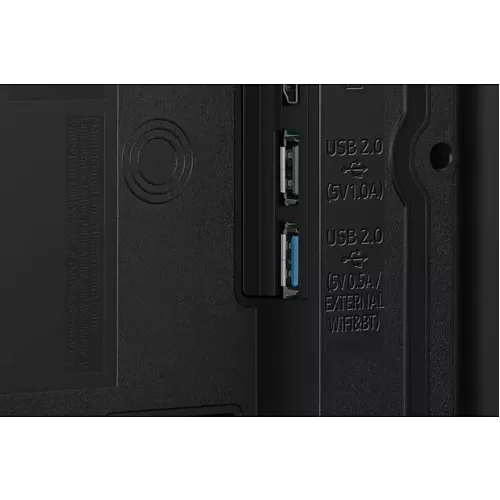

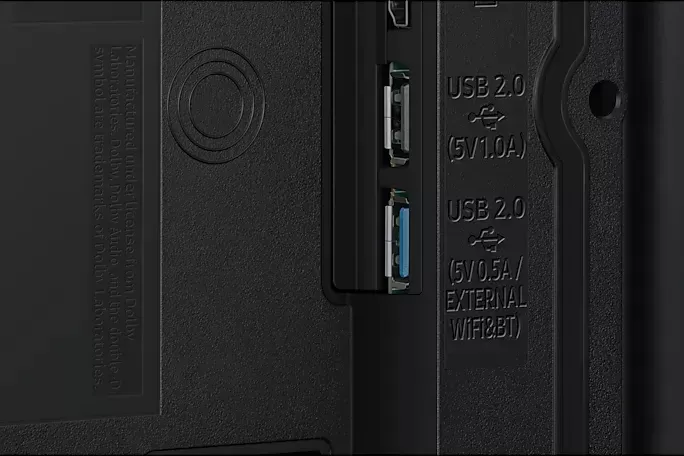

USB
USB 2.0 x 2
Output
Audio
Stereo mini Jack
External Control
RS232C(in), RJ45

BT/WiFi
BT (In-box Accessory) / External WiFi
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]
90 W/h

Typical[W/h]
70W ※ IEC 62087 measurement standard

Sleep mode
0.5W
Mechanical Specification
Dimension (mm)
Set
573.0 x 342.4 x 59.8 mm
Package
730.0 x 438.0 x 140.0 mm
Weight (kg)
Set
8.4 kg
Package
10 kg
VESA Mount (mm)
100 x 100
VESA Mount Screw (Min~Max)
M4, 4~6
Bezel Width (mm)
21.9 mm
Operation
Operating Temperature
-30 ℃ ~ 50 ℃

Humidity
10 % ~ 100 % (Non-condensing)
Feature
Key Features
Power-box Integrated, IP66, IK-10, Built-in MagicInfo Player S10, SSSP 10.0, External WiFi/BT

Orientation
Landscape / Portrait

Remote Control
N/A
Special Features
H/W : IP66, IK-10, Polarized Sunglasses Viewable, Brightness Sensor, Temperature Sensor, Kensington Lock, 3T Chemical Strengthening Tempered Glass / S/W : Auto Source Switching & Recovery RJ45 MDC, MS365, Vmware, Google Meet, VXPlayer
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia
N/A

IO Ports
N/A
Operating System
Tizen 6.5 (VDLinux)
Certification
Safety
60950-1, 62368-1

EMC
Class A

IP Rating
IP66
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller + Batteries, External WiFi/BT
Optional
Stand
N/A

Mount
Sold Separately

Specialty
N/A
Media Player
Media Player
Media Player
N/A
