Panel
Diagonal Size
46"

Type
VA
Resolution
1920*1080 (Full HD)

Pixel Pitch(mm)
0.53 x 0.53 mm
Active Display Area(mm)
1018.08(H) x 572.67(V) mm
Brightness(Typ.)
3500(peak 4,000) nit

Contrast Ratio
6000:1
Viewing Angle(H/V)
N/A

Color Gamut
72 %
Operation Hour
24/7

Haze
0%

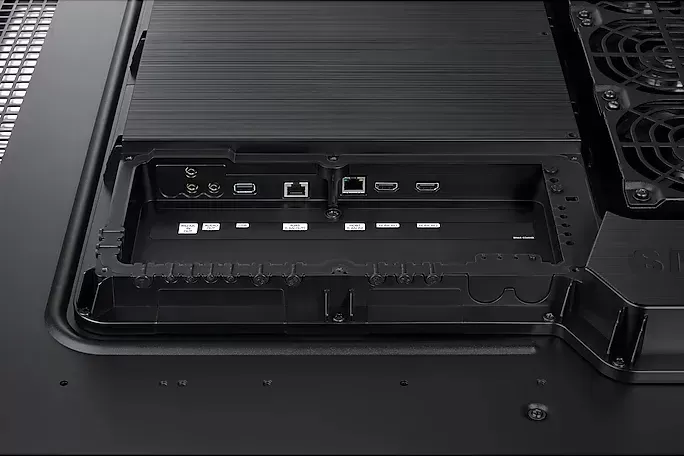

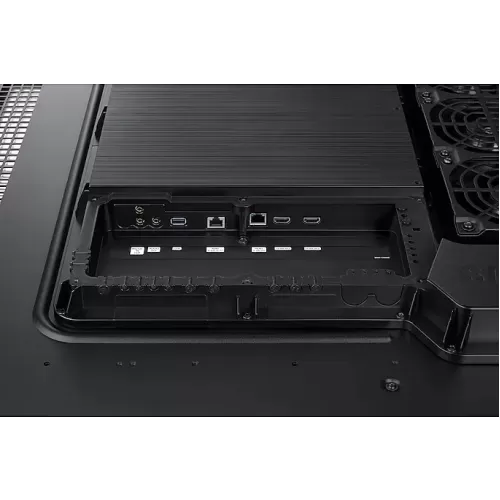

Connectivity
Input
Video
HDMI 2.0 (2), HDBaseT

HDCP
HDCP2.2
USB
USB 2.0 x 1
Output
Audio
Stereo mini Jack
External Control
RS232C(in/out), RJ45 (in/out), HDBaseT
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
Max[W/h]
430W/h

Typical[W/h]
203W ※ IEC 62087 measurement standard

Sleep mode
0.5 W/h
Mechanical Specification
Dimension (mm)
Set
1069 x 623.6 x 85 mm
Package
1156 x 713 x 200 mm
Weight (kg)
Set
36 kg
Package
40.5 kg
VESA Mount (mm)
995 x 500 / 1000 x 400 (VESA Bracket Option)
VESA Mount Screw (Min~Max)
M8, 9~11
Bezel Width (mm)
24.9mm
Operation
Operating Temperature
-30 ℃ ~ 50 ℃

Humidity
10 % ~ 100 % (Non-condensing)
Feature
Key Features
Power-box Integrated, IP56 Outdoor,Built-in MagicInfo Player S10, SSSP 10.0

Orientation
Landscape / Portrait

Remote Control
N/A
Special Features
H/W : IP56, IK-10, Polarized Sunglasses Viewable, Brightness Sensor, Temperature Sensor, Kensington Lock / S/W : Auto Source Switching & Recovery RJ45 MDC, MS365, Vmware, Google Meet, VXPlayer
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia
N/A

IO Ports
N/A
Operating System
Tizen 6.5 (VDLinux)
Certification
Safety
60950-1, 62368-1

EMC
Class A

IP Rating
IP56
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller + Batteries
Optional
Stand
N/A

Mount
Sold Separately

Specialty
N/A
Media Player
Media Player
Media Player
N/A
