LIGHT ENGINE
DLP™ Type Proprietary sealed optical Engine based on 1 HD2+ DMD™ Chip.
Resolution 1280x720 pixels
Lens High quality, high resolution optics with both motorised zoom and focus adjustments
Throw ratio(16:9 mode) 1.8 - 2.4:1
Throw ratio (4:3 mode) 2.4 - 3.0:1
Lamp power consumption & life time 120W, 6000 hours*
INSTALLATION
Optical keystone adjustment +/-8°
Digital keystone adjustment +/-18° vertical, +/-12° horizontal
Picture size 50-300 inches diagonal.
Aspect ratio 4:3, 16:9, anamorphic, letterbox, panoramic pixel to pixel + 3 custom-user adjustments
ELECTRONICS
Horiz. Scan freq. 15-80KHz (max horizontal freq. corresponding to UXGA, 60Hz)
Vert. Scan freq. 48-100Hz
Video standard & graphic resolutions PAL B,G,H,I,M,N,60, SECAM, NTSC 3.58 &4.43 automatically selected; HDTV: ATSC (480p, 720p, 1080i); VGA, SVGA, XGA, SXGA, UXGA
DCDi™ by Faroudja built-in
Contrast Ratio (full On / full Off) > 2800:1
Colour Temperature 3 preset colour temperatures + 1 user adjustment with separate adjustments for high and low light

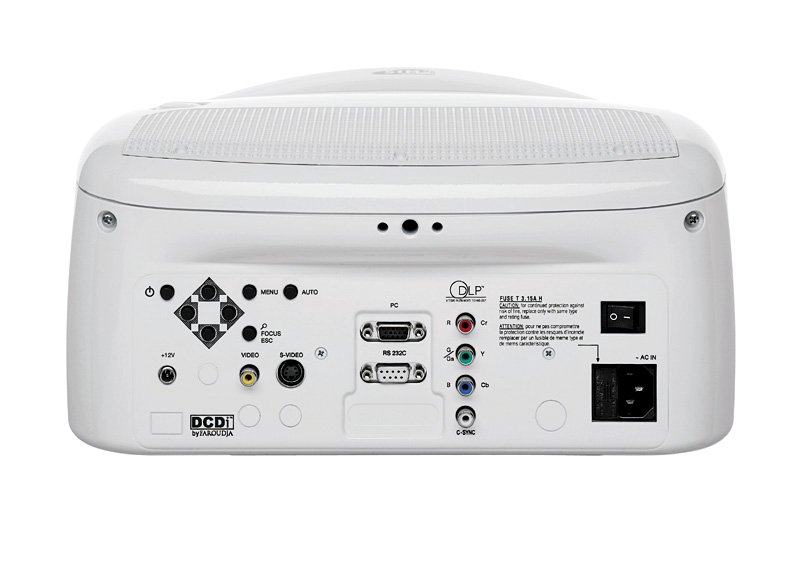

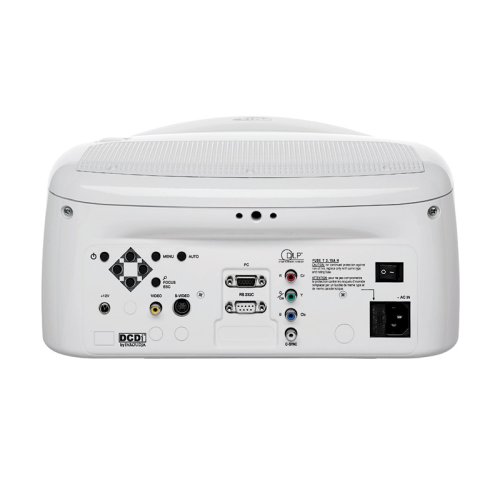

INPUTS/OUTPUTS
Analog 1 x Composite video via RCA connectors
1 x S –VHS via mini Din 4 pin
1 x RGBHV via Dsub 15 (PC input)
1 x RGBS/YCrCbS via 4xRCA connectors
Digital 1 x HDMI™-HDCP
1 x optical S/PDIF audio output from HDMI™
1 x DVI+HDCP via DVI-HDMI™ cable
Miscellaneous 1 x RS232 on Dsub 9 pins connector
2 x OUT 12 V 100 mA
GENERAL SPECIFICATIONS
Control Software can be upgraded via RS232 serial interface
Power Consumption 180 W max
Mains voltage range 120 - 240 Vac, -/- 10%
Mains frequency range 48/62 Hz
Cabinet dimensions (W x H x D) 350 x 167 x 318mm (13,8" x 6,6" x 12,5")
Weight 5.0 Kg. (11 lbs)
CABINET COLOURS
Cabinet Colours Black Shadow or White Evolution
CERTIFICATIONS
Safety In compliance with EN 60950/UL 60950
Emission In compliance with EN 55022 class B/150KHz - 30MHz
Recyclable packaging
ACCESSORIES
Supplied AC power cords (EU,UK, and USA) length 3m
User standard remote control with batteries
Installation and user manual
