Light Engine
DLP™ Type Proprietary sealed optical Engine based on 1 DMD™ Chip. Sealed housing
Resolution True 16:9 – 1280x720 pixels
Lens High quality, high resolution improved optics for higher contrast and better black level with both motorised zoom and focus adjustments
Lamp power consumption & life time 120W, 6000 hours*
Installation
Optical keystone adjustment +/-10°
Digital keystone adjustment +/-13° vertical, +/-10° horizontal
Throw ratio 1.8 – 2.4:1
Picture size 50-300 inches diagonal.
Aspect ratio 4:3, 16:9, anamorphic, letter box plus 3 custom-user adjustments, panoramic and pixel to pixel
Electronics
Horiz. Scan freq. 15-80KHz (max horizontal freq. corresponding to UXGA, 60Hz)
Vert. Scan freq. 48-100Hz
Video standard & graphic resolutions PAL B,G,H,I,M,N,60, SECAM, NTSC 3.58 &4.43 automatically selected; HDTV: ATSC (480p, 720p, 1080i); VGA, SVGA, XGA, UXGA (1600 x 1200 pixels)
DCDi™ by Faroudja built-in
Contrast Ratio (full On / full Off) > 1100:1
Colour Temperature 3 preset colour temperatures plus a RC user adjustment acting directly on each colour (red, green and blue)
Special Video Enhancements Luma-Choma Delay Adjustment by OSD

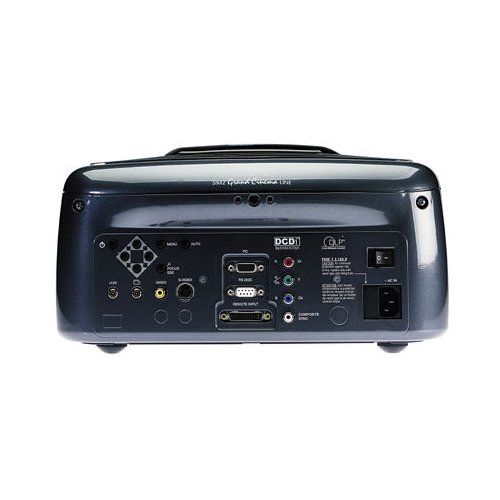

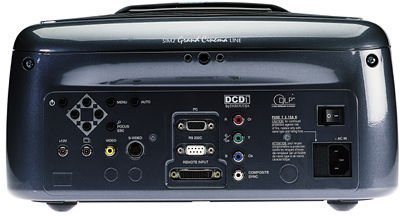

Inputs/Outputs
Analog 1 Composite video via RCA connectors
1 S-VHS via mini Din 4 pin
1 RGBHV via Dsub 15 (PC input)
1 x RGBS/YCrCbS via 4xRCA connectors
Contorl 1 Remote Input Interface, type Microcross P&DA (EVC), Standard VESA
1 x RS232 on Dsub 9 pins connector
MIscellaneous 1 x jack 12V power output, active when the projector is ON
1 x jack 12V power output, active when 16:9 format is selected (max 12V power output 100 mA )
General Specifications
Control Software can be upgraded via RS232 serial interface
Power Consumption 180 W max
Mains voltage range 100 - 240 Vac, -/- 10%
Mains frequency range 48/62 Hz
Cabinet dimensions (W x H x D) 350 x 173 x 318mm (13,8" x 6,8" x 12,5")
Weight 5.8 Kg. (12.8 lbs)
Certifications
Vibration in compliance with IEC 68-2-6
Safety In compliance with EN 60950/UL 1950
Emission In compliance with EN 55022 class B/150KHz - 30MHz
Recyclable packaging
Accessories
Supplied AC power cords (EU, UK and USA), length 3m
User standard remote control with batteries
Installation and user manual + CD Rom
Optional Remote Input Interface including special connection cable between the Projector and the Remote Input Interface, 10m long
Ceiling bracket and Grand Cinema Style floor/ceiling stand
Cabinet Colour
Standard Gun Metal

Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
