Light Engine
DLP™ Type 3-chip DMD (HD2 chip).
Resolution True 16:9 (1280 x 720 pixels)
Lens High quality, high resolution improved optics for higher contrast and better black level with both motorized zoom and focus adjustments
Lamp power consumption & life time 250W UHP; 1500 hours (*)
Installation
Shift +100%, -50% vertical, +/-20% horizontal
Keystone 22° max.
Picture size 50-300 inches diagonal
Aspect ratio 4:3, 16:9, Anamorphic, Letterbox, 3 custom-user (H&V) adjustments, panoramic and pixel-to-pixel
Lens options
Lens 1 Throw ratio 1.44 - 1.8:1 zoom
Lens 2 Throw ratio 1.2 - 1.44:1 zoom
Lens 3 Throw ratio 1.8 - 2.4:1 zoom
Lens 4 Throw ratio 2.4 - 3.6:1 zoom
Lens 5 Throw ratio 3.6 - 5.6:1 zoom
Electronics
Horizontal & vertical scan freq. 15-80 KHz / 48-100 Hz (max horizontal freq. corresponding to UXGA, 60 Hz)
Video standards and graphic resolutions PAL B,G, H, I, M, N, 60, SECAM, NTSC 3.58 & 4.43 automatically selected; HTDT ATSC (480p, 720p, 1080i) PC graphic standard up to UXGA (1600 x 1200 pixels).
Deinterlacer & processing On-board DCDi™ by Faroudja. 3:2 & 2.2 pull-down sequencing automatically detected
Colour temperature 3 preset colour temperatures + a RC user adjustment acting directly on each colour (R, G, B)
Special video adjustments noise reduction, Luma-chroma Delay, high and low brightness, fleshtone regulation, Y/C delay, gamma correction, Microvision Anticopy Pulses Cleaner, Image panning and zooming
General Specifications
Control control software upgradable via RS232 serial interface
Power Consumption 170W
Mains voltage range 120-240 Vac, +/- 10% (48/62Hz)
Cabinet dimension (WxHxD) 537x235x631 mm
Inputs/Outputs
Analog 2 x composite video via RCA connectors
2 x S-VHS via mini Din-4 pin
2 x RGB via DB15 HD connector
3 x RGBH/V YCrCbH/V via RCA connectors
1 x RGBH/V YCrCbH/V via 5 BNC connectors
Digital 1 x DVI via DVI-D connector
1 x HDMI™-HDCP
1 x optical S/PDIF audio output from HDMI™
2 fibre optics links via RJ-45 type LC connectors
Control 1 x RS232 on Dsub 9 pin connector
Miscellaneous 2 x jack 12V power outputs
Cabinet dimensions (WxHxD) 435x55x285 mm
Accessories

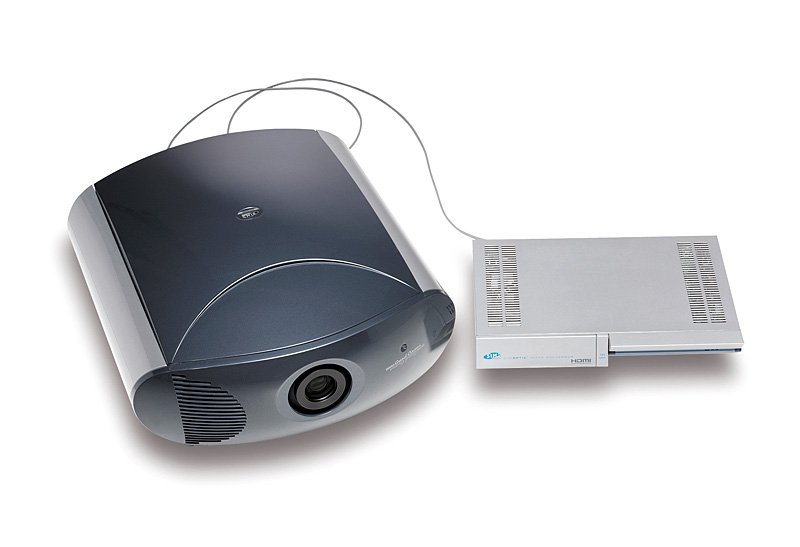

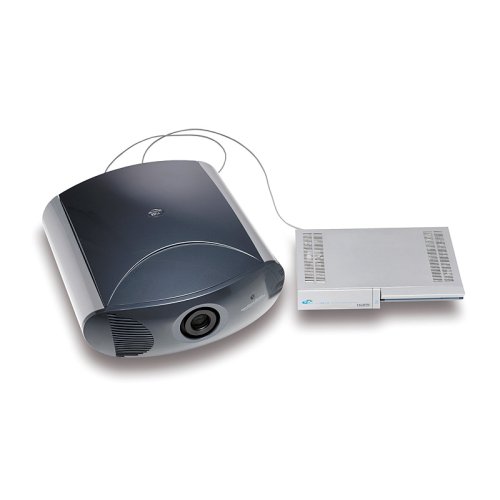

Supplied DigiOptic™ mage Processor, fibre optic cable (20 m), backlit remote control, AC power cords (EU, UK, and USA); length 2 m; installation and user manual
Cabinet color
Standard Dark Gray
