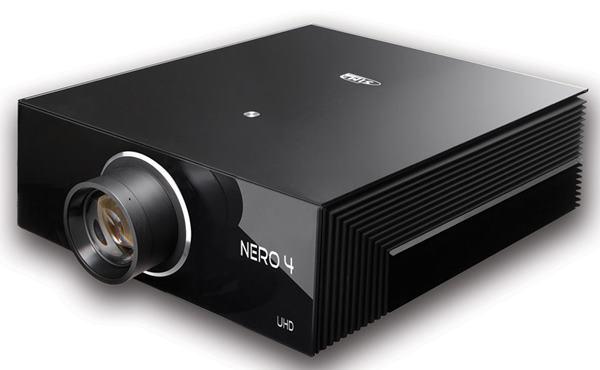

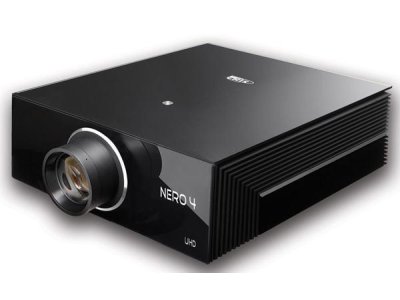

Projektor Sim2 NERO 4 UHD HDR
LIGHT ENGINE and DISPLAY
DLP® Type1-chip DMD UHD
Image resolution4K UHD (3840x2160 pixels): 8.3M pixels
Light Source and brightness(1)450W lamp (dimmable) - up to 5.000 Ansi Lumens (in 2D mode)
Lamp life expectancy(2)3000 hours typical in ECO mode
Adjustable iris12 apertures memorized
HDR capability
SIM2 Perfect Fit
LensSuper high definition pure-glass lens with telecentric optics
Lens resolution93 lines per millimeter
INSTALLATION
Lens Throw ratio (+/-5%)1.36-2.68:1
Zoom & FocusMotorized with position encoders
Optical Shift+/-75% Vertical, +/- 30% Horizontal
ELECTRONICS AND CONNECTIVITY
Horizontal & vertical scan freq.15-91kHz/24-120Hz
UHD@ 24/25/30/50/60/70/72/75 Hz
HDTV480p, 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p
PC graphic standardVGA, SVGA, XGA, SXGA, UXGA, WUXGA, UHD, 4K (4096x2160), 10 bit Full Channel Signal Board Video Processing
Color CalibrationLive Colors Calibration software 2.0
INPUTS/OUTPUTS
Digital1 x HDMI (v.2.0a - HDCP 2.2)
2 x HDMI (v.1.4a - HDCP 1.4)
1 x HDMI audio/video out (v.1.4a - HDCP)
1 x Display Port 1.2
AnalogGraphic RGBVH (VGA-UXGA) (D-sub 15 pin)
Component - Analog YPbPr/RGBs/RGBHV
Control2 x IR receivers
1 x LAN (RJ45)
1 x RS232 (D-sub 9 pin)
1 x USB (A type for FW upgrade)
Miscellaneous2 x 12V 200mA output
GENERAL SPECIFICATIONS
Mains voltage range100-240 +/-10% (48/62 Hz)
Projector Weight32 Kg. / 70.5 lbs
Projector dimensions528 x 197 x 525 mm (20.8" x 7.7" x 20.7")
ACCESSORIES
SuppliedInstallation and User Manual
AC power cords
Remote control and batteries
OptionalProjector ceiling bracket
Anamorphic lens systems (fixed or motorized)
(1) ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer's projectors. Measurements are taken in a totally dark test room, brand new lamp at full power, lamp's native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification.
(2) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
Due to constant product development, specifications are subject to change without notice.
