Cena
Sony

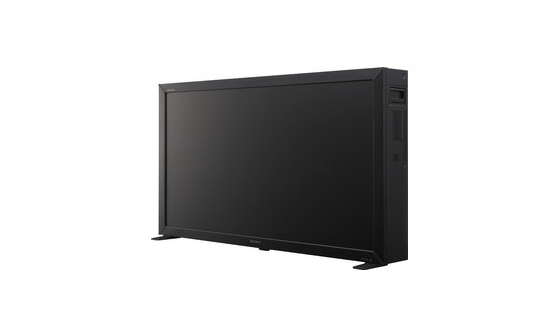

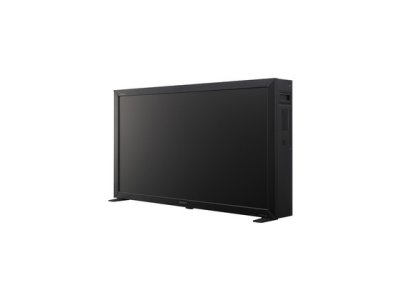

Monitor referencyjny LCD Full HD Sony SRM-L560

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Cena na telefon
Produkt niedostępny

Specyfikacja techniczna

Picture Performance

Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 570.6 mm
Picture Size (Diagonal) 22 1/2 inches
Effective Picture Size (H x V) 483.8 x 302.4 mm
Effective Picture Size (H x V) 21 1/2 x 12 1/8 inches
Resolution (H x V) 1920 x 1200 pixels (WUXGA)
Aspect 16:10
Pixel Efficiency 0.9999
Backlight CCFL
Panel Drive RGB 10-bit
Panel Frame Rate 96 Hz, 100 Hz, 120 Hz
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan 0% scan
Native Scan Mapping the pixels of the signal to the panel to one-to-one mode, or displaying an SD signal of nonsquare pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of HDMI video by scaling processing of doubling for the V direction and correct aspect ratiofor the H direction and also optimizing and sidplaying a picture by modifying the aperture coefficient value, filter coefficient value, etc.
Under Scan 3% under scan
Over Scan Mask of 5% over scan portion in the normal scan
Color Temperature D65, D93, User
Standard Luminance 100 cd/m2 (Preset1 to Preset5)
Standard Luminance (1.0 Vp-p reference signal, 100% white signal input)
Color Space (Color Gamut) ITU-R BT.709, EBU, SMPTE-C, L2300 Native (The PVM-L3200 individual chromaticity points. The widest color space setting of the signal is reproduced by the PVML3200. R (x = 0.650, y = 0.329)/G (x = 0.221, y = 0.665)/B (x= 0.150, y= 0.060) (typical))
Warm-up Time Approx. 30 minutes

Input

HDMI Input HDMI (x1) (HDCP correspondence, Deep Color correspondence)
DVI-D Input DVI-D (x1) (HDCP correspondence)
Option Port Four (4) ports
Parallel Remote D-sub 9-pin (female) (x1)
Serial Remote (LAN) RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
Option A Input Mini-DIN 8-pin (female) (x1)
Option B Input USB (Type A) (x1) (used for future expansion)

Output

DC 5 V Output Circle 4-pin (female) (x1)

General

Power Requirements 100 V to 240 V AC, 1.4 A to 0.6 A, 50/60 Hz
Power Consumption Approx. 140 W (max.)
Power Consumption Approx. 80 W (with BKM-243HS, average power consumption in the default status)
Inrush Current (1) Power ON, current probe method:
Inrush Current 20 A (100 V), 53 A (240V)
Inrush Current (2) Hot switching inrush current, measured in accordance with European standard EN55103-1:
Inrush Current 12 A (230 V)
Operating Temperature 0°C to 35°C (Recommended: 20°C to 30°C)
Operating Temperature 32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity 0% to 90% (no condensation)
Storage/Transport Temperature '-20°C to +60°C
Storage/Transport Temperature -4°F to +140°F
Storage/Transport Humidity 0% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) [*1] 565.5 x 435.2 x 243.1 mm
Dimensions (W x H x D) [*1] 22 3/8 x 17 1/4 x 9 5/8 inches
Mass Approx. 16.0 kg
Mass Approx. 35 lb 4 oz
Supplied Accessories AC power cord (1)
Supplied Accessories AC plug holder (1)
Supplied Accessories Bracket (1)
Supplied Accessories Connection Cable for Color Temperature Probe (1)
Supplied Accessories Operation Manual (Japanese, English, each 1)
Supplied Accessories CD-ROM (1)
Supplied Accessories Using the CD-ROM Manual (1)
Optional Accessories BKM-16R Monitor Control Unit
Optional Accessories BKM-37H Controller Attachment Stand
Optional Accessories SMF-700 Monitor Interface Cable
Optional Accessories BKM-220D SDI 4:2:2 Input Adaptor (with serial number 2100001 or higher)
Optional Accessories BKM-227W NTSC/PAL Input Adaptor
Optional Accessories BKM-229X Analog Component Input Adaptor (with serial number 2200001or higher)
Optional Accessories BKM-243HS HD/D1-SDI Input Adaptor (with serial number 2108355 or higher)
Optional Accessories BKM-244CC HD/SD-SDI Closed Caption Adaptor
Optional Accessories BKM-250TG 3G/HD/SD-SDI Input Adaptor (with serial number 7100001or higher)

Notes

Note [*1] The values for dimensions are approximate.
