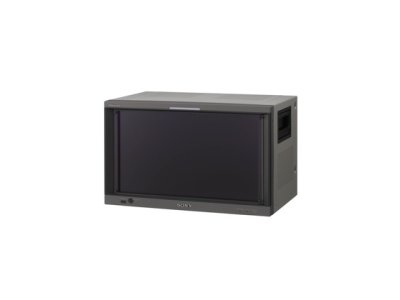

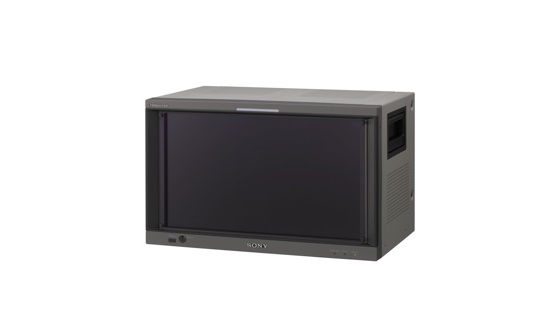

Monitor referencyjny LCD Sony PVM-L1700

Name: Monitor referencyjny LCD Sony PVM-L1700
Brand: Sony
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Specyfikacja techniczna

Picture Performance

Panel	a-Si TFT Active Matrix LCD
Picture Size (Diagonal)	419.0 mm
Picture Size (Diagonal)	16 1/2 inches
Effective Picture Size (H x V)	365.8 x 205.7 mm
Effective Picture Size (H x V)	14 1/2 x 8 1/8 inches
Resolution (H x V)	1920 x 1080 pixels (Full HD)
Aspect	16:9
Pixel Efficiency	0.9999
Backlight	CCFL
Panel Drive	RGB 10-bit
Panel Frame Rate	96 Hz, 100 Hz, 120 Hz
Viewing Angle (Panel Specification)	89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan	0% scan
Native Scan	Mapping the pixels of the signal to the panel to one-to-one mode, or displaying an SD signal of nonsquare pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of HDMI video by scaling processing of doubling for the V direction and correct aspect ratiofor the H direction and also optimizing and sidplaying a picture by modifying the aperture coefficient value, filter coefficient value, etc.
Under Scan	3% under scan
Over Scan	Mask of 5% over scan portion in the normal scan
Color Temperature	D65, D93, User
Standard Luminance	100 cd/m2 (Preset1 to Preset5)
Standard Luminance	(1.0 Vp-p reference signal, 100% white signal input)
Color Space (Color Gamut)	ITU-R BT.709, EBU, SMPTE-C, L1700 Native (The PVM-L2300 individual chromaticity points. The widest color space setting of the signal is reproduced by the PVML3200. R (x = 0.643, y = 0.334)/G (x = 0.212, y = 0.673)/B (x= 0.150, y= 0.060) (typical))
Warm-up Time	Approx. 30 minutes

Input

HDMI Input	HDMI (x1) (HDCP correspondence, Deep Color correspondence)
DVI-D Input	DVI-D (x1) (HDCP correspondence)
Option Port	Four (4) ports
Parallel Remote	D-sub 9-pin (female) (x1)
Serial Remote (LAN)	RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
Option A Input	Mini-DIN 8-pin (female) (x1)
Option B Input	USB (Type A) (x1) (used for future expansion)
DC Input	XLR-type 3-pin (male) (x1), 24V DC (output impedance 0.05 Ω or less)

Output

DC 5 V Output	Circle 4-pin (female) (x1)

General

Power Requirements	100 V to 240 V AC, 1.2 A to 0.5 A, 50/60 Hz
Power Requirements	24V to 28V DC, 4.6A to 4.06 A
Power Consumption	Approx. 110 W (AC power supply), 100 W (DC power supply) (max.)
Power Consumption	Approx. 90 W (AC power supply), 80 W (DC power supply) (with BKM-243HS, average power consumption in the default status)
Inrush Current	(1) Power ON, current probe method:
Inrush Current	20 A (100 V), 53 A (240V)
Inrush Current	(2) Hot switching inrush current, measured in accordance with European standard EN55103-1:
Inrush Current	13 A (230 V)
Operating Temperature	0°C to 35°C (Recommended: 20°C to 30°C)
Operating Temperature	32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity	0% to 90% (no condensation)
Storage/Transport Temperature	'-20°C to +60°C
Storage/Transport Temperature	-4°F to +140°F
Storage/Transport Humidity	0% to 90%
Operating/Storage/Transport Pressure	700 hPa to 1060 hPa
Dimensions (W x H x D) [*1]	436 x 265.8 x 278.6 mm
Dimensions (W x H x D) [*1]	17 1/4 x 10 1/2 x 11 inches
Mass	Approx. 11.0 kg
Mass	Approx. 24 lb 4 oz
Supplied Accessories	AC power cord (1)
Supplied Accessories	AC plug holder (1)
Supplied Accessories	Rack mount bracket (Left, right, each 1)
Supplied Accessories	Rack mount attachement screws (6)
Supplied Accessories	Connection Cable for Color Temperature Probe (1)
Supplied Accessories	Operation Manual (Japanese, English, each 1)
Supplied Accessories	CD-ROM (1)
Supplied Accessories	Using the CD-ROM Manual (1)
Optional Accessories	BKM-16R Monitor Control Unit
Optional Accessories	BKM-39H Controller Attachment Stand
Optional Accessories	SMF-700 Monitor Interface Cable
Optional Accessories	BKM-220D SDI 4:2:2 Input Adaptor (with serial number 2100001 or higher)
Optional Accessories	BKM-227W NTSC/PAL Input Adaptor
Optional Accessories	BKM-229X Analog Component Input Adaptor (with serial number 2200001or higher)
Optional Accessories	BKM-243HS HD/D1-SDI Input Adaptor (with serial number 2108355 or higher)
Optional Accessories	BKM-244CC HD/SD-SDI Closed Caption Adaptor
Optional Accessories	BKM-250TG 3G/HD/SD-SDI Input Adaptor (with serial number 7100001or higher)
