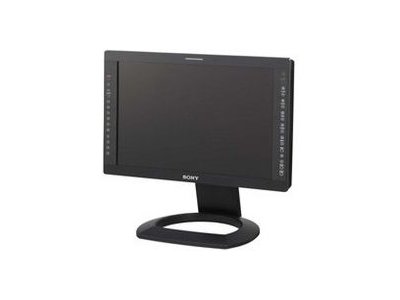

Monitor Sony LMD-2051W

Name: Monitor Sony LMD-2051W
Brand: Sony
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Specyfikacja techniczna

Picture Performance

Panel	a-Si TFT Active Matrix LCD
Picture Size (Diagonal)	511.1 mm
Picture Size (Diagonal)	20 1/8 inches
Effective Picture Size (H x V)	433.4 x 270.9 mm
Effective Picture Size (H x V)	17 1/8 x 10 3/4 inches
Resolution (H x V)	1680 x 1050 pixels (WSXGA)
Aspect	16:10
Pixel Efficiency	0.9999
Backlight	CCFL
Colors	Approx.16.7 million colors
Viewing Angle (Panel Specification)	89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan	0% scan
Over Scan	5% over scan

Input

Composite Input	BNC (x1), 1 Vp-p ±3dB sync negative
Y/C Input	Mini-DIN 4-pin (x1)
Y/C Input	Y: 1 Vp-p ± 3dB sync negative
Y/C Input	C: 0.286 Vp-p ± 3dB (NTSC burst signal level), 0.3 Vp-p ± 3dB (PAL burst signal level)
RGB, Component Input	BNC (x3)
RGB, Component Input	RGB: 0.7 Vp-p ± 3dB (Sync On Green, 0.3 Vp-p sync negative)
RGB, Component Input	Component: 0.7 Vp-p ± 3dB
DVI-D Input	DVI-D (x1)
DVI-D Input	TMDS single link
HD15 Input	D-sub 15-pin (x1),
HD15 Input	R/G/B: 0.7 Vp-p sync positive (Sync On Green, 0.3 Vp-p sync negative)
HD15 Input	Sync : Total level (polarity free, H/V separate sync)
HD15 Input	Plug & Play function : corresponds to DDC2B
Audio Input	Phono jack (x2) -5 dBu 47 kΩ or higher
External Sync Input	BNC (x1)
External Sync Input	0.3 to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
Option Port	Two (2) ports
Option Port	Signal format: H: 15 kHz to 45 kHz, V: 48 Hz to 60 Hz
Parallel Remote	Modular connector 8-pin (x1)
Parallel Remote	(Pin-assignable)
Serial Remote (LAN)	D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input	XLR-type 4-pin (male) (x1), 24V DC (output impedance 0.05 Ω or less)

Output

Composite Output	BNC (x1), Loop-through, with 75 Ω automatic terminal function
Y/C Output	4-pin mini-DIN (x1), Loop-through, with 75 Ω automatic terminal function
RGB, Component Output	BNC (x3), Loop-through, with 75 Ω automatic terminal function
External Sync Output	BNC (x1), Loop-through, with 75 Ω automatic terminal function
Audio Monitor Output	Phono jack (x2)
Speaker (Built-in) Output	1.0 W + 1.0 W (stereo)

General

Power Requirements	100 V to 240 V AC, 0.8 A to 0.4 A, 50/60 Hz
Power Requirements	24 V DC, 3.3 A
Power Consumption	Approx. 95 W (max.) (with 2 x BKM-229X)
Inrush Current	(1) Power ON, current probe method:
Inrush Current	16 A (100 V), 34 A (240 V)
Inrush Current	(2) Hot switching inrush current,
Inrush Current	measured in accordance with
Inrush Current	European standard EN55103-1: 36A (230 V)
Operating Temperature	0°C to 35°C (Recommended: 20°C to 30°C)
Operating Temperature	32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity	30% to 85% (no condensation)
Storage/Transport Temperature	'-20°C to +60°C
Storage/Transport Temperature	-4°F to +140°F
Storage/Transport Humidity	0% to 90%
Operating/Storage/Transport Pressure	700 hPa to 1060 hPa
Dimensions (W x H x D) [*1]	518.5 x 328.7 x 104.7 mm (without a stand)
Dimensions (W x H x D) [*1]	518.5 x 468.4 x 269.9 mm (with a supplied stand)
Dimensions (W x H x D) [*1]	20 1/2 x 13 x 4 1/8 inches (without a stand)
Dimensions (W x H x D) [*1]	20 1/2 x 18 1/2 x 10 3/4 inches (with a supplied stand)
Mass (with options)	Approx. 10.5 kg (when 2x BKM-229X installed)
Mass (with options)	Approx. 23 lb 2 oz (when 2x BKM-229X installed)
Mass	Approx. 10.1 kg (when no input adaptor installed)
Mass	Approx. 22 lb 4 oz (when no input adaptor installed)
Supplied Accessories	AC power cord (1)
Supplied Accessories	AC plug holder (1)
Supplied Accessories	Operating Instructions (1)
Supplied Accessories	CD-ROM (1)
Supplied Accessories	Using the CD-ROM Manual (1)
Supplied Accessories	Warranty book (1)
Optional Accessories	BKM-220D SDI 4:2:2 Input Adaptor
Optional Accessories	BKM-243HS HD/D1-SDI Input Adaptor
Optional Accessories	BKM-227W NTSC/PAL Input Adaptor
Optional Accessories	BKM-229X Analog Component Input Adaptor
Optional Accessories	BKM-244CC HD/SD-SDI Closed Caption Adaptor
Optional Accessories	BKM-250TG 3G/HD/SD-SDI Input Adaptor
Optional Accessories	MB-529 Mounting Bracket
