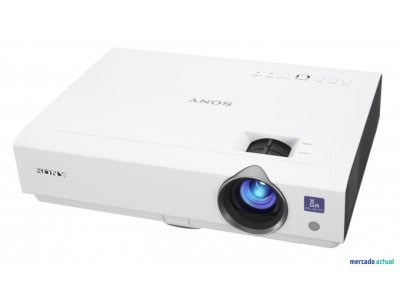

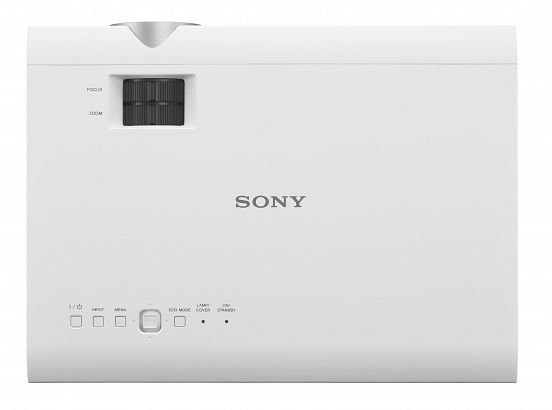

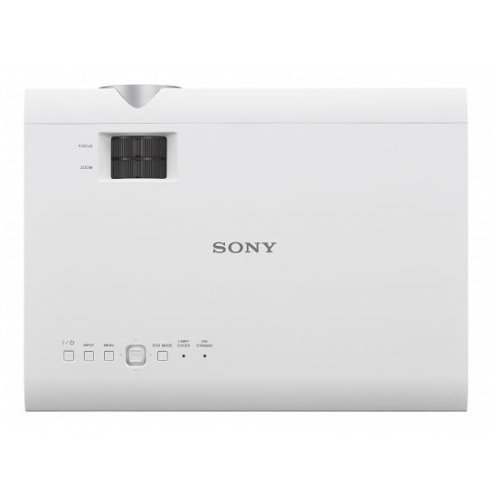

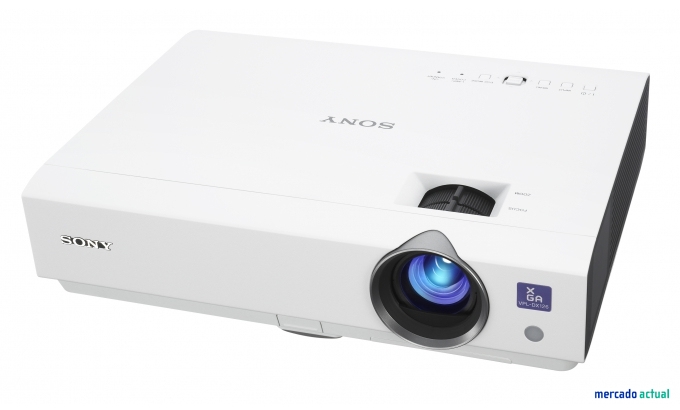

Projektor Sony VPL-DX146

Name: Projektor Sony VPL-DX146
Brand: Sony
Price: 2460 PLN
Availability: InStock

2 460,00 zł ~~2 899,00 zł~~

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Produkt dostępny

downloadPobierz kartę produktu

Technical Specifications

Display system

Display system	3 LCD system

Display device

Size of effective display area	0.63” (16.0 mm)
Number of pixels	XGA (1024 x 768)
Aspect ratio	4:3

Projection lens

Focus	Manual
Zoom > Powered / Manual	Manual
Zoom > Ratio	Approx. 1.3 x
Throw ratio	1.36:1 to 1.77:1

Light source

Type	*1 lamp
Wattage	210 W type

Recommended　lamp replacement time*2

Lamp mode: High	3000 H
Lamp mode: Standard	5000 H
Lamp mode: Low	7000 H

Filter cleaning / replacement cycle*2 (Max.)

Filter cleaning / replacement cycle*2 (Max.)	1000 H (cleaning)

Screen size

Screen size	30” to 300” (0.76 m to 7.62 m)

Light output

Lamp mode: High	3200 lm
Lamp mode: Standard	2300 lm*3
Lamp mode: Low	1900 lm*3

Color light output

Lamp mode: High	3200 lm
Lamp mode: Standard	2300 lm*3
Lamp mode: Low	1900 lm*3

Contrast ratio (full white / full black)*4

Contrast ratio (full white / full black)*4	2500:1

Input

Composite video > Pin Jack	1
Computer > Mini D-sub 15-pin	1
HDMI (HDCP)	1
Audio > Stereo mini jack	1

I/O, Control, Others

LAN > RJ-45, 10BASE-T/100BASE-TX	1
USB > Type A	1
USB > Type B	1
Wireless	IFU-WLM3(Supply)*5

Speaker

Speaker	1 W x 1 (monaural)

Keystone correction (Max.)*6

Vertical	+/- 30°

Power requirements

Power requirements	AC 100 V to 240 V 3.0 A to 1.2 A, 50/60 Hz

Power consumption

AC 100 V to 120 V > Lamp mode: High	291 W
AC 100 V to 120 V > Lamp mode: Standard	229 W*3
AC 100 V to 120 V > Lamp mode: Low	199 W*3
AC 220 V to 240 V > Lamp mode: High	279 W
AC 220 V to 240 V > Lamp mode: Standard	223 W*3
AC 220 V to 240 V > Lamp mode: Low	194 W*3

Standby mode power consumption

AC 100 V to 120 V > Standard	5.7 W
AC 100 V to 120 V > Low	0.4 W
AC 220 V to 240 V > Standard	5.9 W
AC 220 V to 240 V > Low	0.5.W

Heat dissipation

AC 100 V to 120 V	992 BTU
AC 220 V to 240 V	951 BTU

Dimensions (W x H x D) (without protrusions)

Dimensions (W x H x D) (without protrusions)	315 x 75 x 230.5 mm 12 13/32 x 2 15/16 x 9 1/16 in

Mass

Mass	2.6 kg / 5.8 lb

Supplied accessories

Remote commander	RM-PJ8
Wireless LAN Module	IFU-WLM3

Optional accessories

Replacement lamp	LMP-D213
Wireless LAN Module	IFU-WLM3 (Supply)

Notes

*1	Ultra high pressure mercury.
*2	The figures are the expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used.
*3	The values are estimate.
*4	This value is average.
*5	Connect to USB Type-A terminal.
*6	Depends on resolution.
