Specyfikacja techniczna

Image Display

Display System 3-Chip 0.74" SXRD LCoS

Native Chip Resolution 4096 x 2160 (DCI 4K)

Max Brightness 1500 Lumens

Aspect Ratio Native: 17:9

DLP Link 3D Yes

Lens

Focus Manual Powered

Lens Shift Vertical: -80 to 85%

Horizontal: + 31%

Optical Zoom Powered: 2.1x

Throw Ratio 1.38 - 2.83:1

Projection Size 60 - 300" / 152.40 - 762.00 cm

Features

Ceiling Mountable Yes

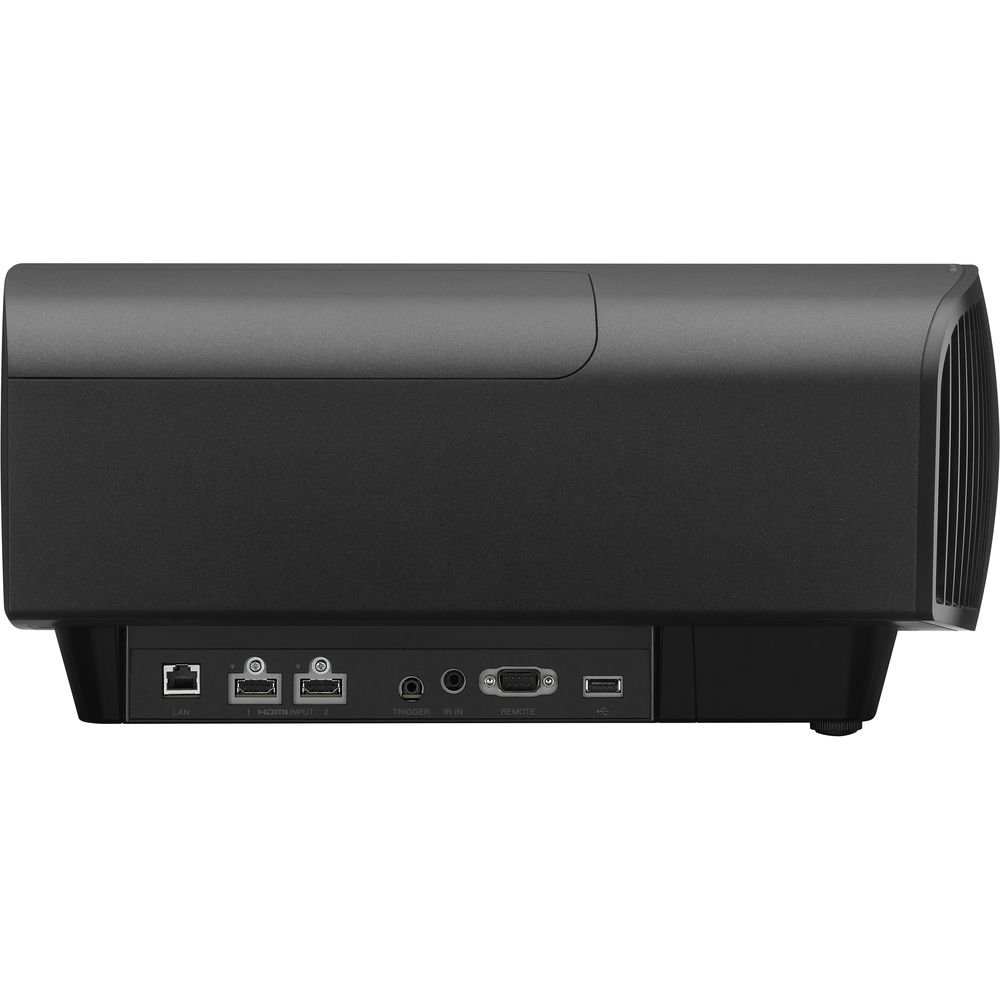

Input/Output Connectors

Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input

1 x Ethernet (RJ45) LAN

1 x 1/8" (3.5 mm) Mini Control Input

1 x 1/8" (3.5 mm) Mini Control Output

1 x USB 2.0 (USB Type-A) Service Input

Memory Card Slot None

General

Light Source Lamp (1 x UHP)

Lamp Power 225 W

Expected Lamp Life Medium Brightness: 6000 Hours

Fan Noise Medium Brightness: 26 dB

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Power Consumption Full Brightness: 390 W

Standby Mode (Lamp Off): <1 W

Operating Temperature 41 to 95°F / 5 to 35°C

Storage Temperature -4 to 140°F / -20 to 60°C

Operating Humidity 35 - 85%

Storage Humidity 10 - 90%

Dimensions (W x H x D) 19.5 x 8.3 x 18.3" / 496.0 x 212.0 x 464.0 mm Excluding protrusions

Weight 31.00 lb / 14.06 kg

Special Features: Anamorphic Ready, Full HD 3D, Frame Interpolation, HDR
