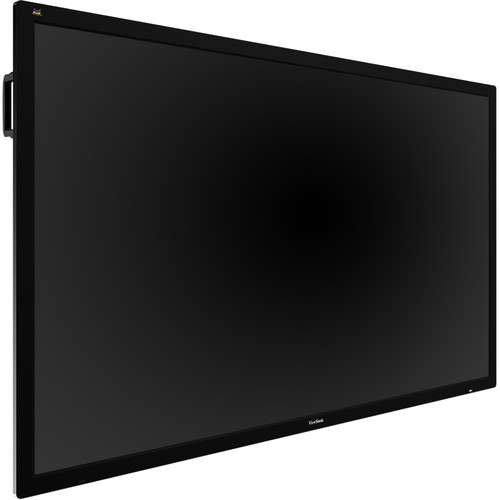

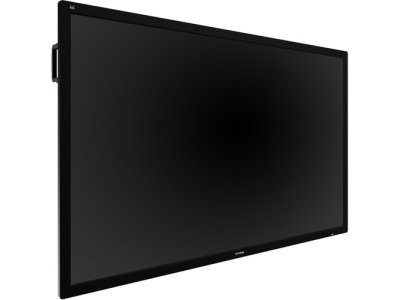

SPECIFICATIONS

• LCD PANEL

  Panel Size : 86"

  Type/ Tech : TFT LCD Module with LED Backlight

  Display Area (mm) : 1895.04 (H) x 1065.96 (V)

  Aspect Ratio : 16:09

  Resolution : 3840 x 2160

  Colors : 1.07B colors (10bit)

  Brightness : 400 nits(typ.)

  Contrast Ratio : 1200:1 (typ.)

  Response Time : 8 ms

  Viewing Angles : H = 178, V = 178 (typ.)

  Backlight : DLED

  Backlight Life : 30,000 Hours Min.

  Hardness : 7H

• INPUT

  HDMI : x 4

  RGB / VGA : x 1

  Audio : x 1

  CVBS (AV) : x 1

  YPbPr : x 1

  RS232 : x 1

  PC Slot : x 1 PC Slot (Intel OPS Standard)

  x1 SDM

• OUTPUT

  HDMI : x 1 (for one of HDMI1/2/3)

  Audio (Earphone Out) : x 1

  SPIDF : x 1

  RS232 : x 1

• LAN

  RJ45 : x 1

• USB

  2.0 Type A : x 1

  3.0 Type A : x 2

• SPEAKERS

  20W x 2

• BUILT-IN PC

  Processor : ARM Cortex A53 Quad Core 1.5G Hz CPU

  Memory : 2GB DDR3

  Storage : 16GB eMMC

• COMPATIBILITY

  VGA : Refer to timing table

  HDMI : 480i, 480p,720p, 1080p, up to 2160p

  CVBS : 480i

• POWER

  Voltage : 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

  Consumption : 540 W (Max.)

• ERGONOMICS

  Wall Mount (VESA® ) : 600 x 400 mm / Screw: M8 x 20 mm; 700 x 400mm / Screw: M8 x 20 mm

• OPERATING CONDITIONS

  Temperature (º C) : 32°F to 104°F (0°C to 40°C)

  Humidity : 10% ~ 90% non-condensing

• DIMENSIONS

  Physical W/o Stand (mm / Inch) : 1962 x 102.6 x 1133 mm / 77.24 x 4.04 x 44.61 inch

  Packaging (mm / Inch) : 2125 x 275 x 1275 mm / 83.66 x 10.83 x 50.2 in

  Pallet Size (mm / Inch) : 2150 x 1140 x 114 mm / 84.64 x 44.88 x 4.49 in

• WEIGHT

  Net W/o Stand (kg / Lb) : 55.6 kg / 122.58 lbs

  Gross (kg / Lb) : 77.1 kg / 169.98lbs

• REGULATIONS

  Standard : cTUVus, FCC DoC(ClassB), Mexican CoC and energy, RCM, CE(EMC), CB, RoHS/REACH, ErP(with EEI label Class A), REACH, WEEE, EAC, Ukr

• WHAT'S IN THE BOX?

  1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)

  2. Remote control with batteries

  3. 3M HDMI cable

  4. QSG
