PARAMETRY:

• DISPLAY

  Panel Size : 50"

  Type/ Tech : TFT LCD Module with LED Backlight

  Display Area (mm) : 1095.84 (H) x 616.4 (V)

  Aspect Ratio : 16:09

  Colours : 1.07B colours

  Brightness : 350 nits (typ.)

  Contrast Ratio : 4000:1 (typ.)

  Response Time : 8 ms

  Viewing Angles : H = 178, V = 178 (typ.)

  Backlight Life : 30,000 Hours

  Surface Treatment : Anti-Glare,3H (Haze=2%)

  Bezel : Slim

  Orientation : Landscape

• INPUT

  HDMI : x2

  RGB / VGA : x1

  DVI : x1

  Audio : x1 PC audio(3.5mm)

  RS-232 : x1

  IR Pass Thru : x1

  SD/SDHC : x1 (Micro SD)

• OUTPUT

  Audio : x1 (RCA)

  RS232 : x1

  IR Pass Thru : x1

• LAN

  RJ45 : x1

• USB

  Type A : 2.0 Type A : x 1 (USB Playback)

  3.0 Type A : x 1 (USB Playback)

• SPEAKERS

  10W x 2

• COMPATIBILITY

  RGB PC/HDMI PC : Up to 1920x1080 @60Hz. Refer to timing table (RGB PC)

  HDMI : 480i, 480p,720p,1080i,1080p, 4K2K@60Hz

  DVI : 480i, 480p,720p,1080i,1080p

  Android Version : Android 5.0.1

• POWER

  Voltage : 100-240 VAC +/- 10% Wide Range

  Consumption : Normal 140 W, Max 175 W

• ERGONOMICS

  Wall Mount (VESA® ) : 400x400 mm

• OPERATING CONDITIONS

  Temperature (º C) : 5 to 40°C

  Humidity : 20% ~ 80%

• DIMENSIONS (W X H X D)

  Physical (inch / Mm) : 44.24 x 25.46 x 2.67 in/1123.6 x 646.7 x 67.8 mm

  Packaging (inch / Mm) : 50.47 x 33.27 x 7.99 in/1282 x 845 x 203 mm

• WEIGHT

  Net (lb / Kg) : 13 kg / 28.66 lbs (w/o stand); 14.9 kg / 32.85 lbs (with Stand)

  Gross (lb / Kg) : 16.5 kg / 36.38 lbs

• REGULATIONS

  NRTL, FCC, ES7.1, Mexico CoC, Mexico energy, CE, CB, RoHS, ErP, REACH,WEEE

• PACKAGE CONTENTS

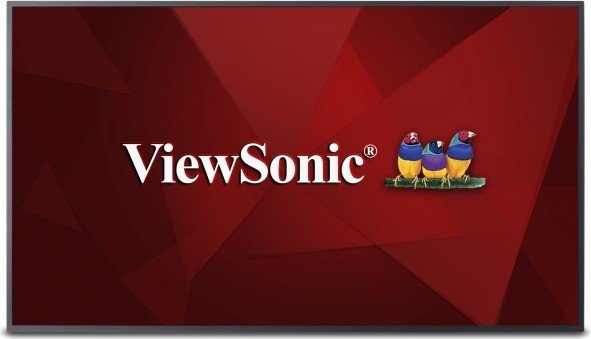

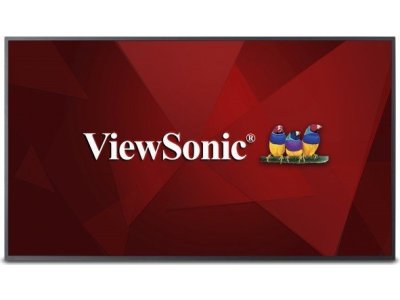

  1. CDE5010 commercial display

  2. Remote Control with batteries

  3. User manual CD wizard

  4. Quick Start Guide

  5. Power Cables

  6. RS232 cable

  7. RS232 daisy chain cable (2.5mm – 2.5mm)

  8. IR sensor cable
