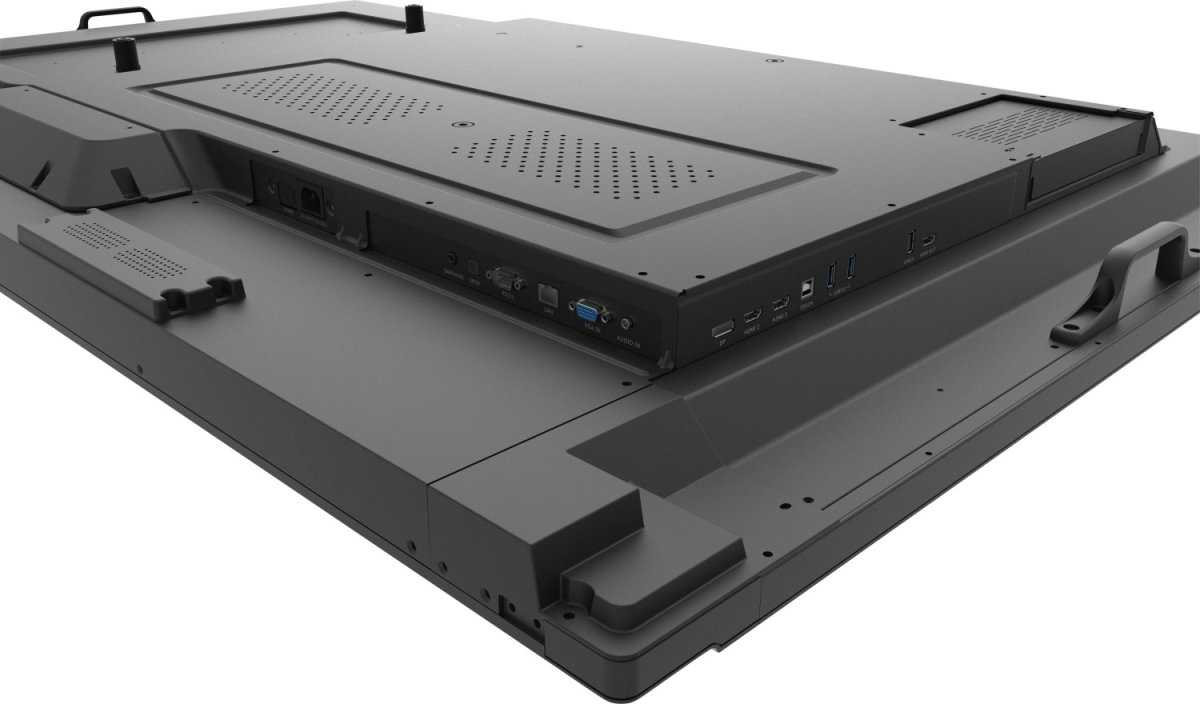

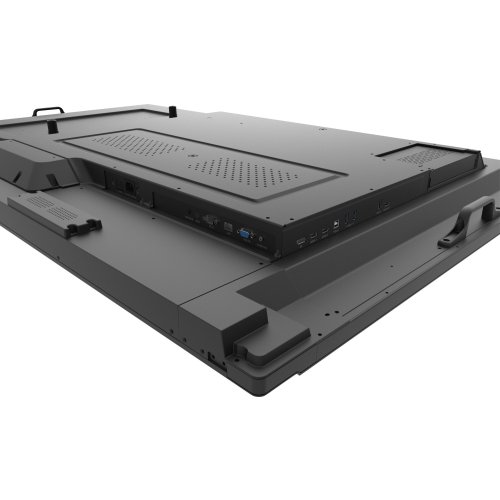

1. INTERNAL SPEAKERS
2. VESA® Wall Mount 600 x 400 mm
3. MENU CONTROLS
4. USB 2.0 x 2
5. HDMI 1.4 IN
6. USB B TOUCH PORT
7. MIC
8. POWER ON / OFF
9. FIPS201 CERTIFIED FINGERPRINT READER
10. DISPLAY PORT
11. HDMI 2.0 In X 2
12. USB TOUCH PORT
13. USB 3.0 X 2
14. USB 2.0
15. HDMI OUT
16. AUDIO IN
17. VGA IN
18. LAN
19. RS232 IN
20. SPDIF
21. EARPHONE
22. Intel Unite® Certivied OPS SLot

 PARAMETRY:

• DISPLAY

  Panel Size : 65"

  Type/Tech : TFT LCD Module with DLED Backlight

  Display Area (mm) : 1428.48(H) x 803.52(V) mm (64.5” diagonal)

  Aspect Ratio : 16:9

  Native Resolution : UHD 3840x2160(Pixels)

  Colors : 16.7M (8bit)

  Brightness : 350 nits (typ.)

  Contrast Ratio : 4000:1 Typ.

  Response Time : 8ms

  Viewing Angles : H = 178, V = 178 typ.

  Backlight Life : 30,000 Hours (Min)

  Surface Treatment : AG G2

  Bezel : Slim

  Orientation : Landscape

• TOUCH

  Type/ Tech : Flatfrog InGlass technology P-series

  Touch Resolution : 22855X12856

  Touch Point : 20 points touch

• INPUT

  HDMI : 1.4a x1 (3840x2160@30Hz); 2.0 x2 (3840x2160@60Hz)

  RGB / VGA : x1

  DisplayPort : x1(3840x2160@30Hz)

  Audio : x1 (PC Audio in)

  RS232 : x1

  OPS : x1 PC Slot (Intel OPS Standard)

• OUTPUT

  RGB / VGA : Refer to timing table

  HDMI : x1( 1080p, 4K@60hz)

  Audio : x1 (Earphone out)

  SPDIF : x1

  RS232 : x1

• LAN

  RJ45 : x1

• USB

  Type A : USB 2.0 x3 (including 2 USB port in front); USB 3.0 x2

  Type B : x2, for touch

• SPEAKERS

  10 Wx2

• CAMERA PLATE ON TOP FOR SREW-IN WEBCAM INSTALLATION

  Yes ( Support external Logitech Meet-up )

• COMPATIBILITY

  RGB PC/HDMI PC : Refer to timing table

  HDMI : 3840x2160

• EMBEDDED OS

  Android 5.0.1

• USB SUPPORTED FILE FORMAT

  Picture -

  MBP, JPG, JEPG

  Video -

  Codec: MPEG1/2, MPEG4, H.263, H.264, MVC, AVS, AVS+, WMV3, VCI, Motion JPEG, VP8, VP9

  Container: MPEG PROGRAM STREAM, MPEG TRANSPORT STREAM, MP4, 3GPP, AVI, MKV, ASF, WMV, WEBM

  Audio -

  Codec: MPEG 1/2, AAC

• BUNDLE SOFTWARE

  Basic Annotation Software : vBoard

  Pro Annotation Software : myviewboard for Windows (Pre-install in VPC12-WPO-3)

  Wireless Presentation With Touch Feedback: Viewboard Cast : Yes

  Screen Split: ViewSplit (Windows Based) : Yes (download from ViewSonic website)

  Zoom : Yes

  ViewSonic Launcher : Embedded

• SPECIAL FEATURES

  All-in-one USB Port (combine Windows/Android USB Port; No Need To Distinguish Them Anymore) : Front USB SmartPort™ to all channels

  One Click To Cloud Drive : Integrate into side tool bar

  Simple LAN Sharing Between IFP And Slot-in Device : Yes

• POWER

  Voltage : 100V-240V,50/60Hz (AC)

  Consumption : Operation:

  210W (typ) - without OPS

  270W (typ.) -with OPS

  ≤ 0.5 W ("Off")

  *Max power consumption from OPS doesn’t over 60W.

• ERGONOMICS

  Wall Mount (VESA® ) : 600 x 400

• OPERATING CONDITIONS

  Temperature (º C) : 0°C to 40°C

  Humidity : 20% ~ 80% RH non-condensing

• DIMENSIONS (W X H X D)

  Physical (inch / Mm) : 61.63x3.72 x 38.07 in/ 1565.5x967.1x94.5 mm

  Packaging (inch / Mm) : 67.52x11.02x40.31 in/1715x280x1100 mm

• WEIGHT

  Net (lb / Kg) : 106.9 lb / 48.5 Kg

  Gross (lb / Kg) : 134.5 lb / 61 Kg

• REGULATIONS

  FCC, CE, cTUVus,CB, RoHS, WEEEFCC, CE, cTUVus,CB, RoHS, WEEE, ES7.1

• PACKAGE CONTENTS

  1. HDMI cable(1.5 meters)

  2. Power cable(3 meters) x 4 (A+E+M+U)

  3. Remote control with AA battery

  4. USB cable(1.8 meters)

  5. Touch pen x 2

  6. Quick Start Guide & Compliance statement

  7. Webcam Plate

  8. Wall mount Screw x 4

• COMPATIBLE SLOT-IN PC

  VPC12-WPO-2 ( Intel i5-6300U with vPro+Win10 Pro 64 bit )
