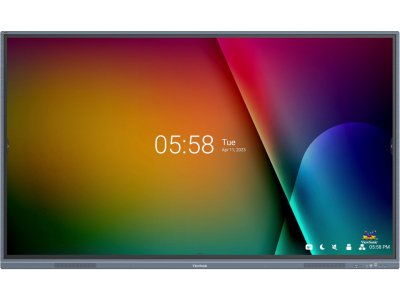

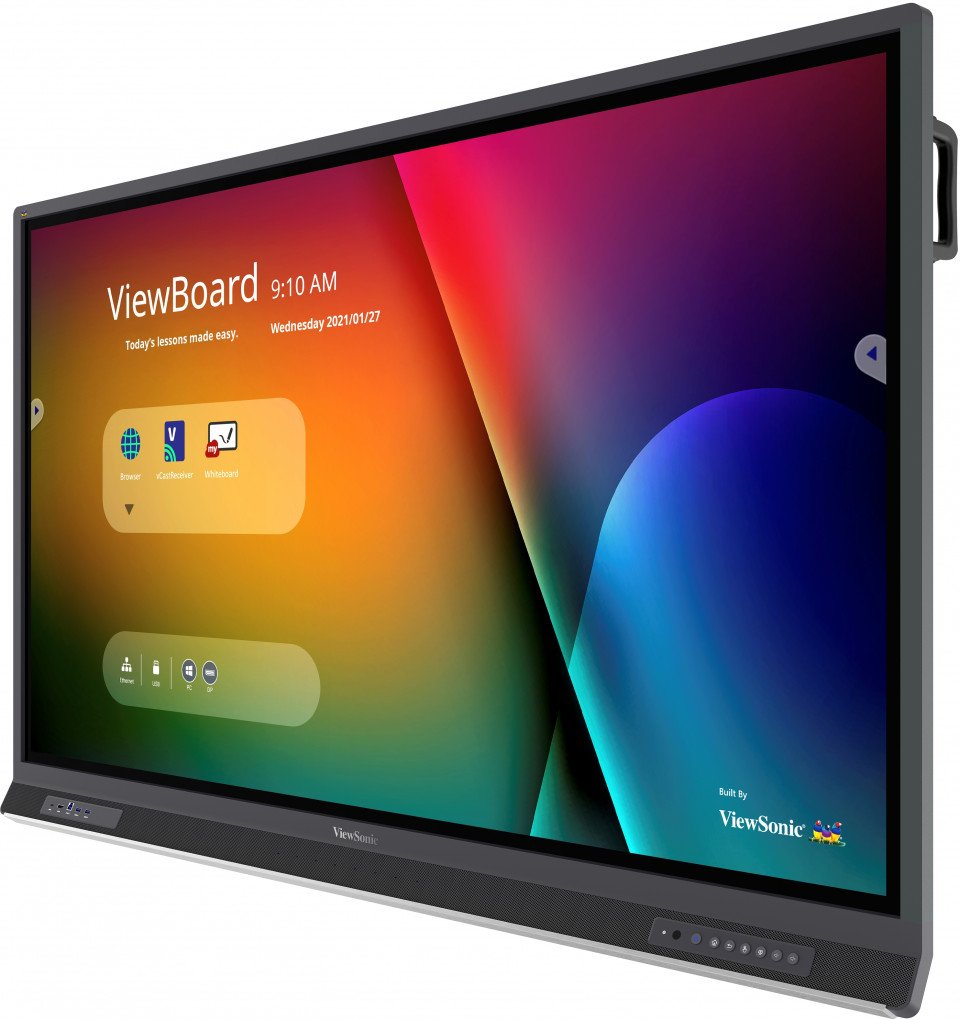

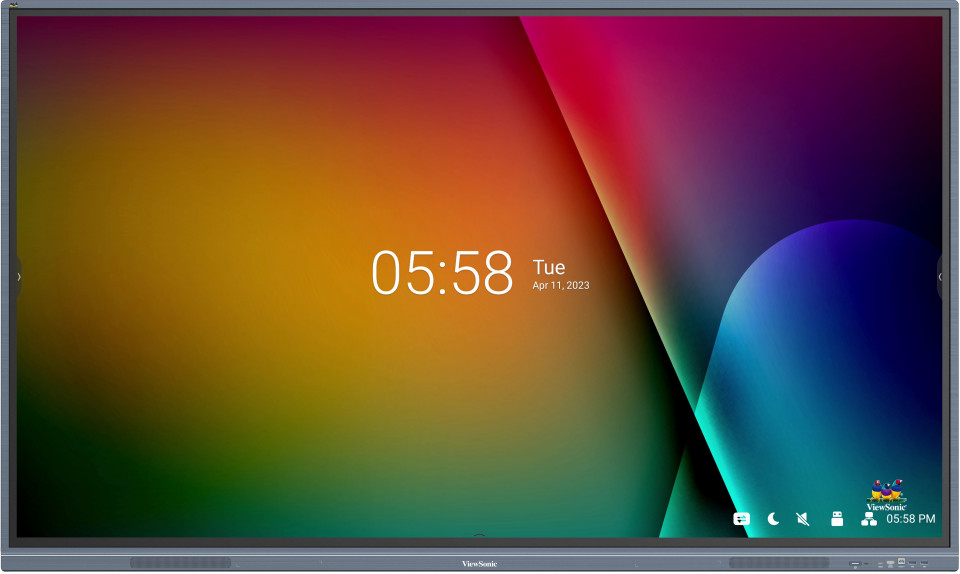

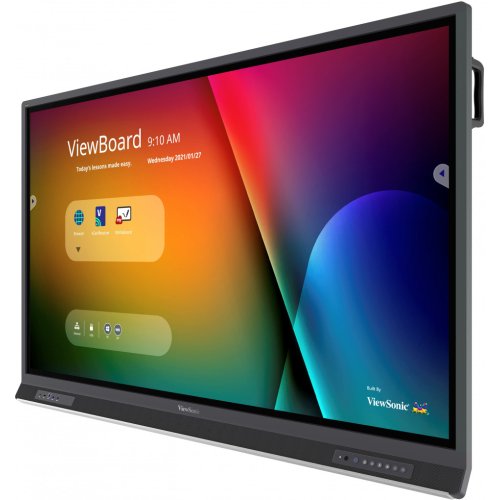

Display
Panel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight. IPS
Display Area (mm): 1428.48(H) × 803.52(V) (64.5" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 400 nits (typ.), 450 nits (max.)
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 8ms
Viewing Angles: H=178, V=178
Backlight Life: 30,000 Hours (Min.)
Surface Treatment: Hardness: 7H Anti-glare coating
Orientation: Landscape
Platform
Processor: Quad-core ARM Cortex (A55*4 )
RAM: 4GB DDR4
Storage: 32 GB
Touch
Type/ Tech: Ultra Fine Touch Technology
Touch Point: 40 points touch
INPUT
HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
OUTPUT
HDMI: HDMI 2.0 x1
Audio: x1
SPDIF: x1
LAN
RJ45: x2
USB
Type A: USB3.0:Front x2, Rear x2； USB2.0 x1
Type B: x2 (Rear x1 + Front x1)
Type C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
SPEAKERS
18W x2
Top Camera Plate
Yes
Embedded OS
Android 11
Bundle Software
Basic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
Special Features
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front "SmartPort™ USB" to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes
Power
Voltage: 100-240V AC
Consumption: On:132W ; Off: ≤ 0.5W
ERGONOMICS

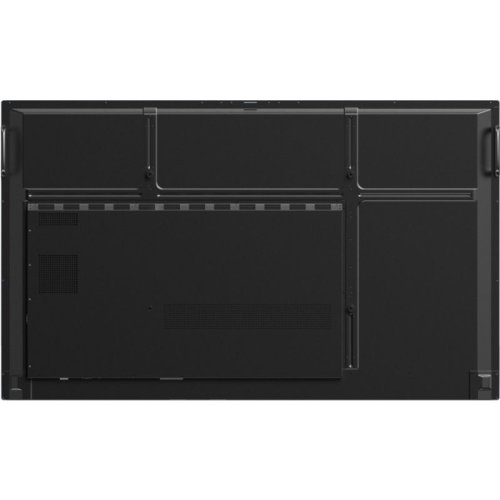

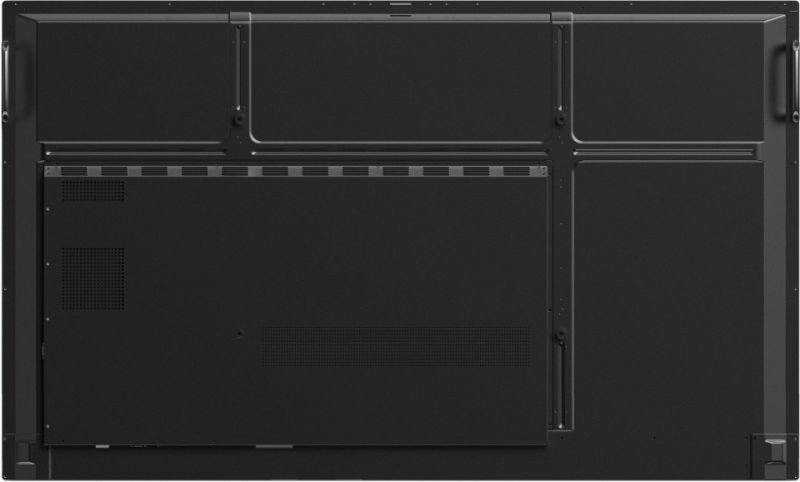

Wall Mount (VESA® ): 600*400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

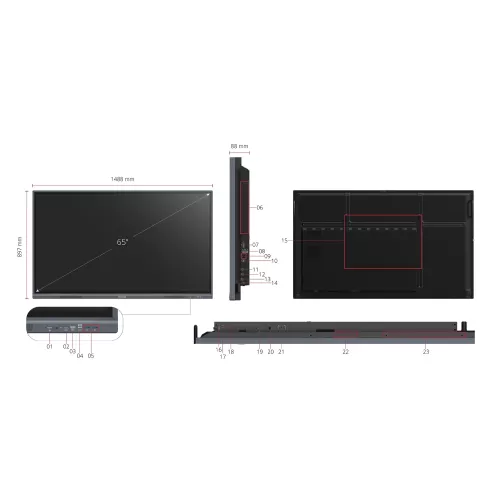

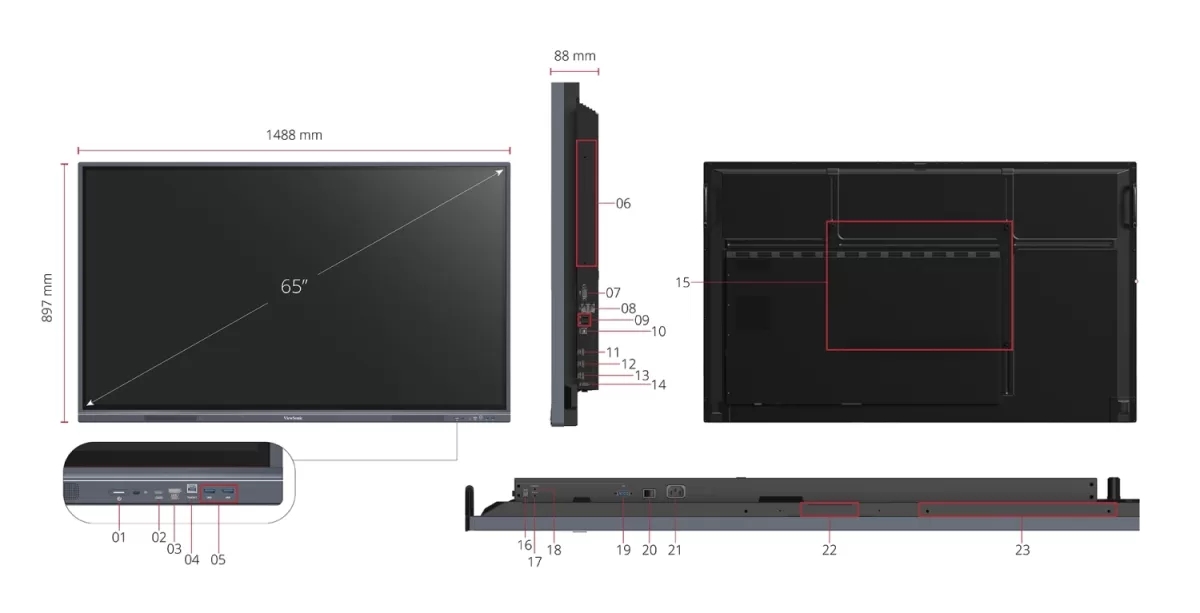

DIMENSIONS (W x H x D)
Physical (inch / mm): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in
Packaging (inch / mm): 1628x208x1005 mm / 64.1x 8.2x 39.6in
WEIGHT
Net (lb / kg): 77.1lb/34.95kg
Gross (lb / kg): 98.5 lb/44.7kg
REGULATIONS
BIS, cTUVus, COC, EPET
PACKAGE CONTENTS
1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
Compatible Slot-in PC
VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
