Display

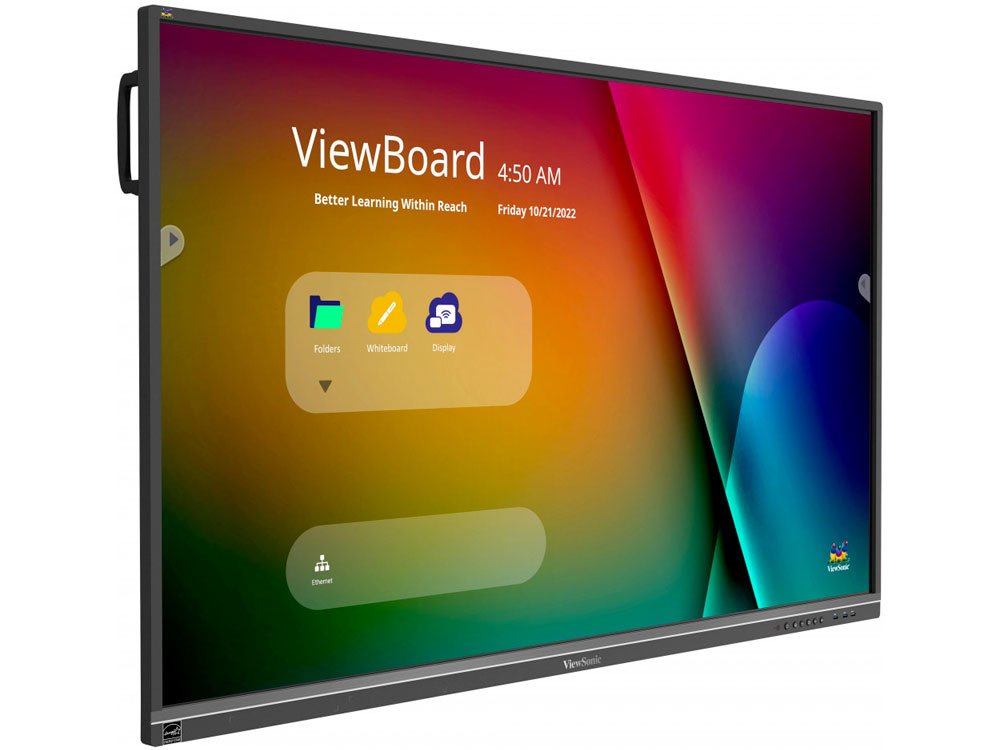

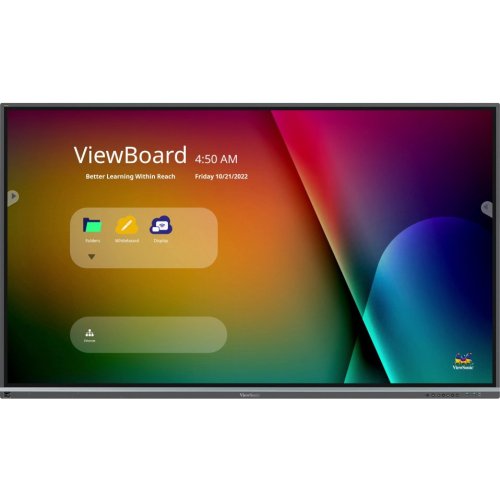

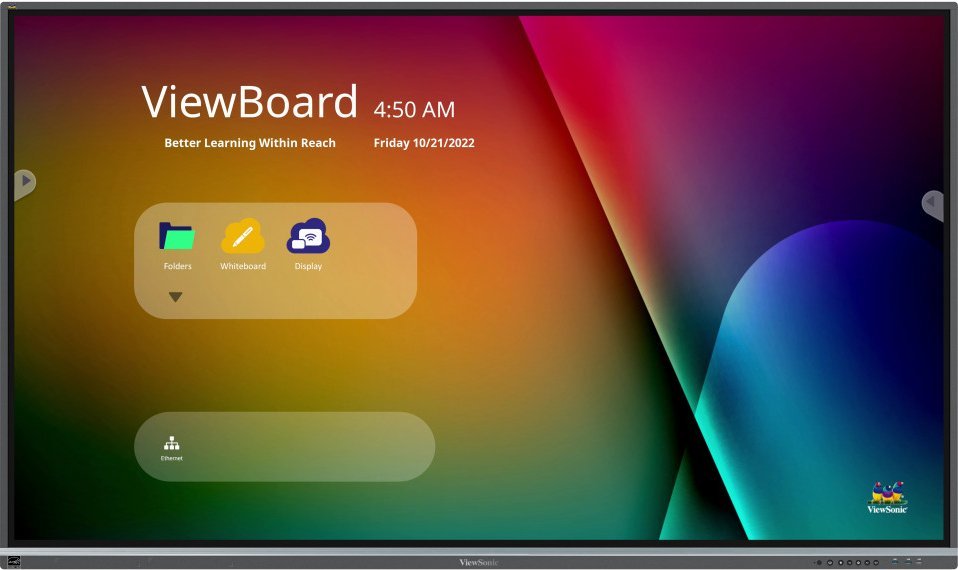

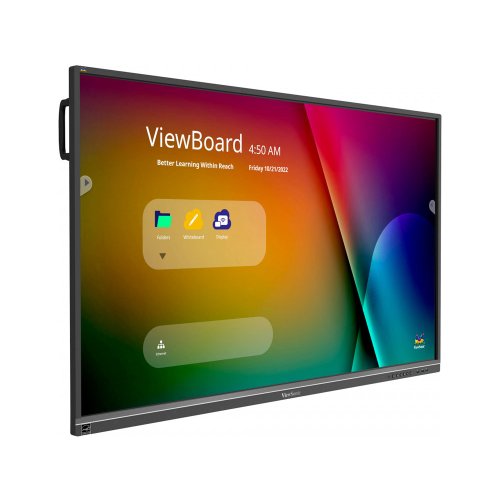

Panel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight.IPS
Display Area (mm): 1428.48(H) × 803.52(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors (10bit)
Brightness: 400 nits (typ.), 450 nits (max.)
Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours (Min)
Surface Treatment: Hardness: 7H, Anti-glare coating
Bezel: Slim
Orientation: Landscape
Platform
Processor: ARM Cortex-A73*4 + Cortex-A53*4
RAM: 8GB
Storage: 64GB
Touch
Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32768 ×32768
Touch Point: Windows: 40 points of touch, Android : 20 points of touch
INPUT
HDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot
OUTPUT
HDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x2
USB
Type A: 2.0 x 2
3.0 x 4
Type B: x2, for touch
Type C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)
SPEAKERS
15W x 2 + 16W x 1 subwoofer
Top Camera Plate
Yes
Embedded OS
Android 11
Bundle Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: vCast/myViewBoard Display App
Special Features
All-in-one USB port: "SmartPort™ USB" to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
Light Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 95W(typ.), 0.5W (off)
ERGONOMICS

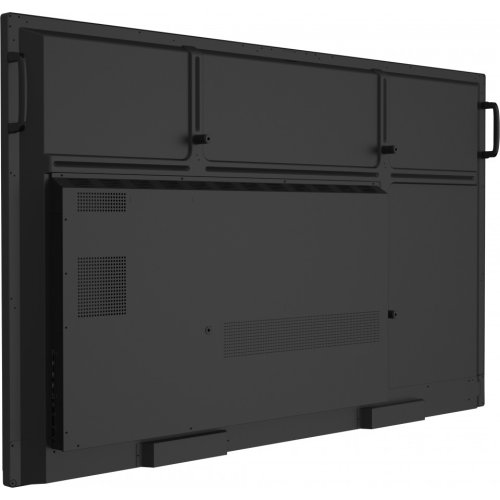

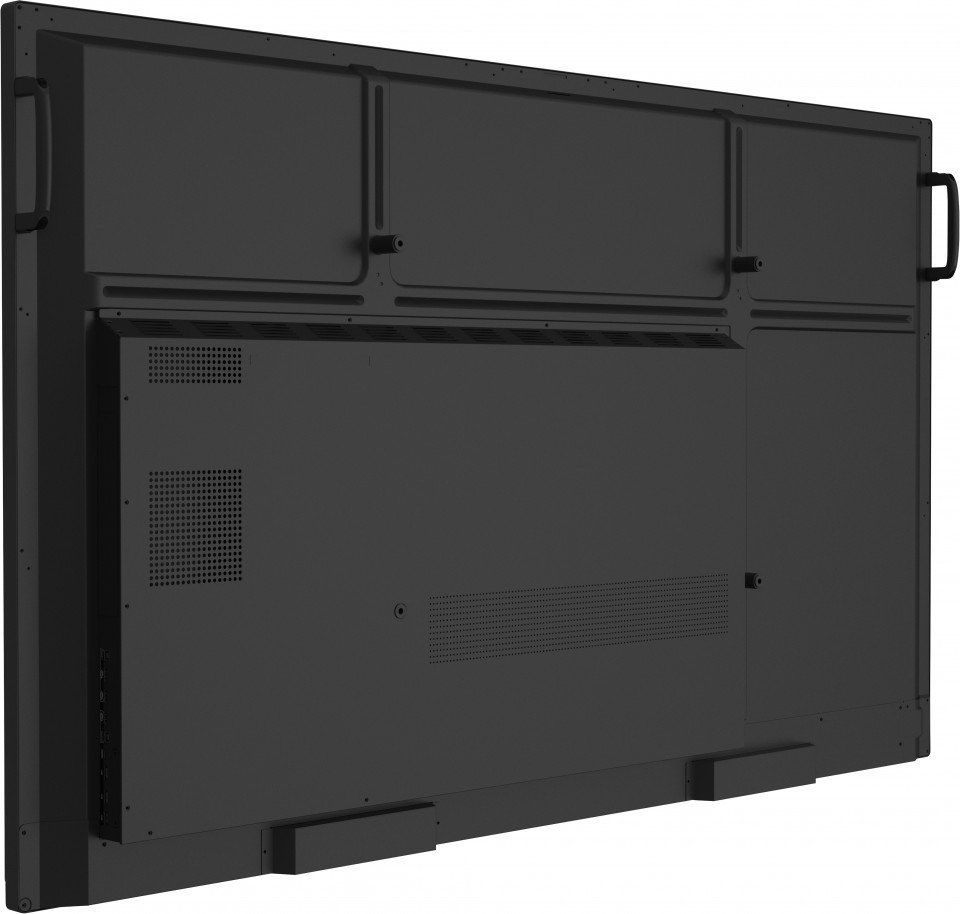

Wall Mount (VESA® ): 600 mm x 400 mm
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
Packaging (inch / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm
WEIGHT
Net (lb / kg): 88.2lb/40kg
Gross (lb / kg): 109.6lb/49.7kg
REGULATIONS
cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA
PACKAGE CONTENTS
1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable
Compatible Slot-in PC
• VPC25-W33-O1-1B
• VPC25-W53-O1-1B
• VPC27-W53-O1-1B
• VPC27-W55-O2-1B
