PARAMETRY:

• DISPLAY

  Panel Size: 75"

  Type/Tech: IPS/V-by-one

  Display Area (mm): 1647.36*926.64mm

  Aspect Ratio: 16:9

  Native Resolution: 4K60hz

  Colours: 10 bits

  Brightness: 450(Typ.)

  400(min.)

  Contrast Ratio: 1200:1

  Response Time: 8ms(Type)

  Viewing Angles: H = 178, V = 178 typ.

  Backlight Life: 30,000hr(min)

  Surface Treatment: Hardness: 7H

  Costing: AG coating

  Thickness: 4mm

  Bezel: 29/29/29/49.7mm(btm.)

  Orientation: Landscape

• PLATFORM

  Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz

  RAM: 3GB DDR4

  Storage: 16GB

• TOUCH

  Type/ Tech: IR Recognition

  Touch Resolution: 32767W*32767D

  Touch Point: 20 points

  10 writing

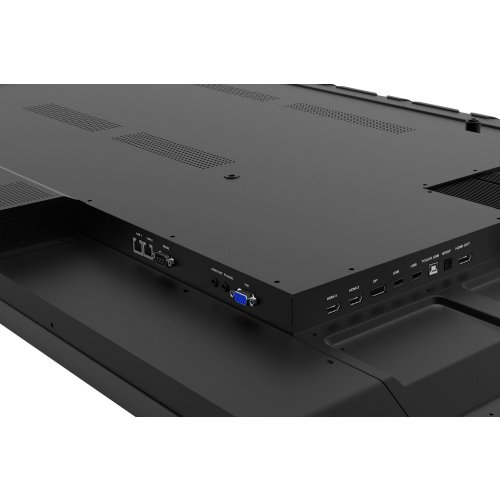

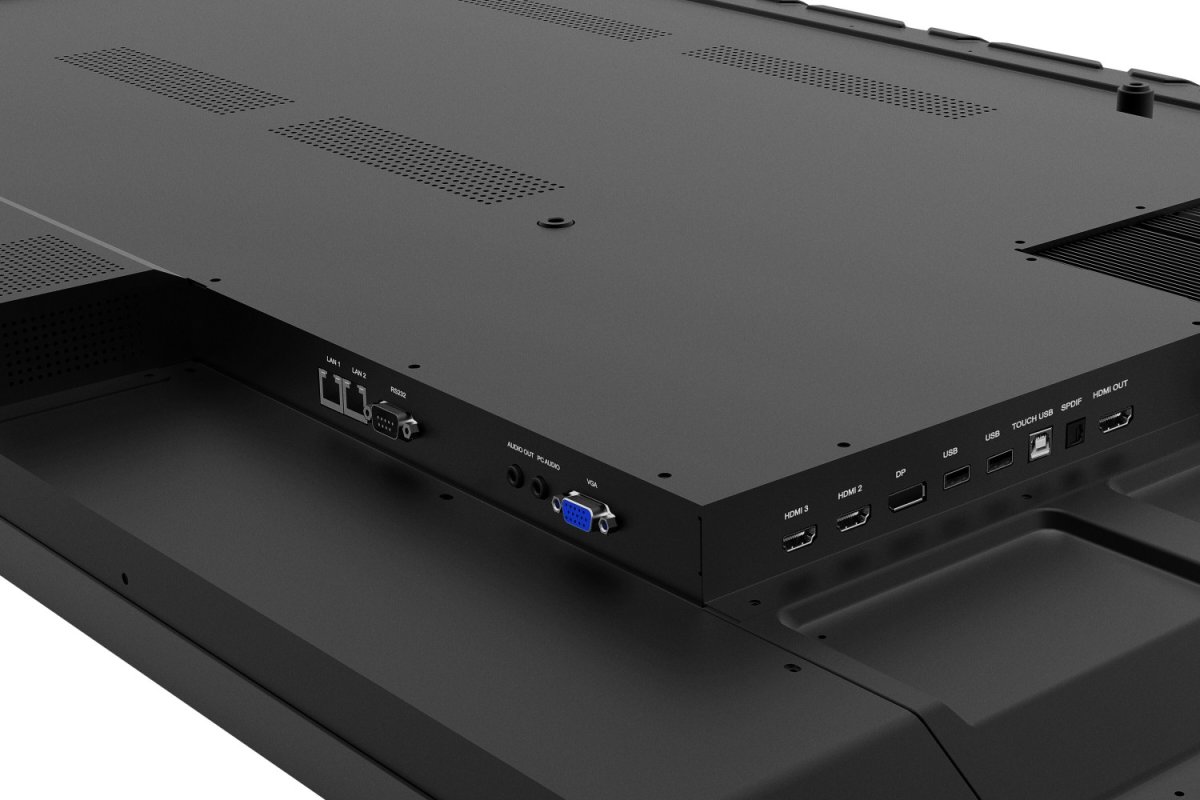

• INPUT

  HDMI: Front*1

  Rear* 2

  All ports HDMI2.0

  RGB / VGA: 1

  DisplayPort: DP1.2*1

  Audio: PC audio in (3.5 mm)*1

  RS232: x1

  OPS: 1

• OUTPUT

  HDMI: *1

  Audio: 3.5mm Earphone Out *1, SPDIF*1

  SPDIF: x1

• LAN

  RJ45: *2

  10M/100

• USB

  Type A: USB2.0 *4 (Front:*2 Rear: *2 )

  Type B: For touch (Front*1, rear*1))

• SPEAKERS

  SPEAKERS: 15WX2

• CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION

  Camera plate on top for screw-in webcam installation: yes

• COMPATIBILITY

  RGB PC/HDMI PC: VGA: 1080p

  HDMI: 4K

  HDMI: 3840x2160

  DisplayPort: 3840x2160

• EMBEDDED OS

  Embedded OS: OS 8.0

  Resolution: 1080p

• POWER

  Voltage: PB model:

  100-240VAC +/- 10% Wide Range

  Consumption: On: 115W(Typ.)

  Off: <0.5W

• ERGONOMICS

  Wall Mount (VESA® ): 600 x 400

• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C

  Humidity: 20% ~ 80% RH Non-Condensing(working)

• DIMENSIONS (W X H X D)

  Physical (inch / mm): 1753.1*1052.3*102.8(mm)

  69.02*41.43*4.05(inch)

  Packaging (inch / mm): 1880*1160*280(mm)

  74*45*11(inch)

• WEIGHT

  Net (lb / kg): 135lb, 61.25kg

  Gross (lb / kg): 173.8lb, 78.85kg

• REGULATIONS

  REGULATIONS: EMC/CE-EU

• ENERGY STAR VERSION

  Energy Star version: YES

• EEI RATING

  EEI rating: A+

• PACKAGE CONTENTS

  PACKAGE CONTENTS:

  1. US/EU/UK/AU power cord 3M, no PE bag

  2. QSG

  3. Compliance statement

  4. HDMI cable 3M*1

  5. Touch USB cable 3M *1

  6. Touch PEN *2. Extra tip: Thick*2, thin*1

  7. Remote control with AAA batteries (VS version)

  8. Webcam plate with screws pack

  a. Need to compatible with Logi CC4000e)

  b. Add screw holes on top of the frame

  9. Pen tray*1 (two pen, detachable, mount for both side)

  10. Wall mount screws

• COMPATIBLE SLOT-IN PC

  Compatible Slot-in PC: VPC12 series
