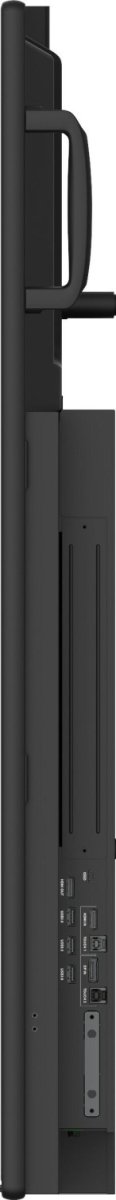

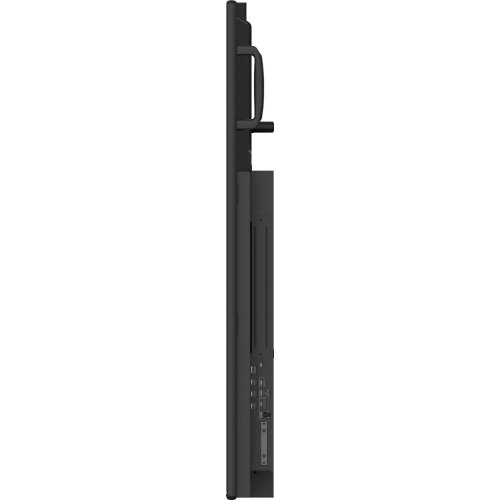

Złącza komunikacyjne i wymiary:

1. Sensor Hub
2. Camera
3. 6 Array Microphone
4. Meun Controls
5. Smart Pen and Charger
6. Intel Unite® Certified OPS Slot
7. USB-C

   (USB 3.0, DP 1.4 Alternate Mode, Ethernet, PD 60W)

8. HDMI Out
9. HDMI In
10. USB 3.0 X 3
11. Touch X 2
12. Display Port
13. WiFi Module Slot
14. VESA Wall Mount

    800x600mm

15. 2.1 Speakers
16. SPDIF
17. RS232
18. Audio Out
19. LAN
20. USB 2.0

PARAMETRY:

• DISPLAY

  Panel Size: 86"

  Type/Tech: TFT LCD Module with DLED Backlight.

  Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)

  Aspect Ratio: 16:9

  Native Resolution: UHD 3840x2160(Pixels)

  Colours: 1.07B colours (10bit)

  Brightness: 350 nits (typ.)

  Contrast Ratio: 1200:1 Typ.

  Response Time: 8ms

  Viewing Angles: H = 178, V = 178 typ.

  Backlight Life: 30,000 Hours (Min)

  Surface Treatment: Anti-Glare/anti finger print

  Bezel: Slim

  Orientation: Landscape

• PLATFORM

  Processor: Dual core A73+Dual core A53

  RAM: 4GB DDR4

  Storage: 32GB

• TOUCH

  Type/ Tech: PCAP

  Touch Resolution: 32767 x 32767

  Touch Point: 20 points touch, 10 points writing

• INPUT

  HDMI: 2.0 x1 (3840x2160 @60Hz)

  DisplayPort: X1 1.4

  RS232: x1

  OPS: x1 PC Slot (proprietary)

• OUTPUT

  HDMI: X1(4K2K@60Hz)

  Audio: x1 (Earphone out)

  SPDIF: 1(optical)

• LAN

  RJ45: x1

• USB

  Type A: USB 3.0 x3

  Type B: USB 3.0 x2, for touch

  Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W

• SPEAKERS

  SPEAKERS: 10W x 2 + 15W x 1 subwoofer

• CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION

  Camera plate on top for screw-in webcam installation: Yes

• COMPATIBILITY

  CVBS: 480i

  HDMI: 3840x2160

• EMBEDDED OS

  Embedded OS: Android 8

• USB SUPPORTED FILE FORMAT

  USB SUPPORTED FILE FORMAT: Picture -

  BMP, JEPG, PNG

  Video -

  Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV

  Container: MPG, MP4, MOV, VOB, DAT, MKV

  Audio -

  Codec: AAC, HEAAC, MPEG1, MPEG2

  Container: AAC, M4A, MP3

• BUNDLE SOFTWARE

  Basic Annotation Software: myViewBoard for android

  Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)

  Wireless Presentation with Touch Feedback: Viewboard Cast: Yes

  Zoom: Yes

  ViewSonic Launcher: Embedded

• SPECIAL FEATURES

  All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Yes

  Simple LAN sharing between IFP and slot-in device: Yes

• POWER

  Voltage: 100-240VAC +/- 10% Wide Range

  Consumption: On:176.6W(Typ.)

  Off: <0.5W

• ERGONOMICS

  Wall Mount (VESA® ): 800 x 600

• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C

  Humidity: 10% ~ 90% RH non-condensing

• DIMENSIONS (W X H X D)

  Physical (inch / mm): 1962X1146X84(mm)

  77.24x45.11x3.3(inch)

  Packaging (inch / mm): 2123X1345X280(mm)

  83.8X52.9X11(inch)

• WEIGHT

  Net (lb / kg): 160.93/73Kg

  Gross (lb / kg): 209.43/95Kg

• REGULATIONS

  REGULATIONS: FCC, cTUVus, CB, CE, RCM,

• ENERGY STAR VERSION

  Energy Star version: Under proceed apply to ES8.0

• EEI RATING

  EEI rating: A+

• PROAV CERTIFICATE READINESS

  Crestron: 75%

  Extron: 20%

  AMX: 0%

• PACKAGE CONTENTS

  PACKAGE CONTENTS: 1. Power cable(3 meters) x 4

  2. Remote control

  3. AAA battery X2

  4. USB cable Type C(1.5 meters pass logo)

  5. activeTouch pen x 2

  6. Pen Charger X1

  7. Quick Start Guide

  8. RS232 adapter

  9. Clamp x 7

  10. Camera

  11. Screw x 6 (4 for wall mount ,2 for sensor hub)

  12. HDMI cable -3M

  13. Sensor hub

  14 .Touch USB cable 3M

  15. Micro USB cable for camera 2M

• COMPATIBLE SLOT-IN PC

  Compatible Slot-in PC: VPC14-WP series

  VPC10-WP series

  VPC15-WP series

  VPC16-WP series

  VPC17-WP series
