PARAMETRY:

SPECIFICATIONS

• DISPLAY

  Monitor Size: 27”W (27” Viewable)

  Panel Technology: AH-IPS panel

  Resolution: UHD 3840 x 2160

  Display Area: 596.74mm (H) x 335.66mm (V)

  Aspect Ratio: 16:9

  Brightness: 350 cd/m2 (Typ)

  Contrast Ratio: 1000:1 (Typ)

  Dynamic Contrast Ratio: 20,000,000:1

  Viewing Angle: 178 degrees / 178 degrees (Typ)

  Refresh Rate: 60Hz

  Response Time: GTG(AVG): 5 ms

  Colours: 1.07 Billion colours, 10bit with FRC

  Colour Gamut: Adobe RGB: 99% Coverage

  NTSC: 72.5% Coverage

  sRGB: 100% Coverage

  REC709: 100% Coverage

  SMPTE-C: 100% Coverage

  EBU: 100% Coverage

  DCI-P3: 95.1% Coverage

  *colour gamut coverage may vary 1% depending on colour mode.

  Pixel Size: 0.1554mm (H) x 0.1554mm (V)

• INPUT SIGNAL

  Frequency: HDMI/ DisplayPort/ mini DP/ Type-C: Fh = 15 ~ 204KHz ; Fv = 24 ~ 120Hz

  Sync: HDMI: TMDS

  DisplayPort/ mini DP/ Type-C: PCI-E

• COMPATIBILITY

  PC: PC Compatibles (3840 x 2160) HDMI/DisplayPort Non-Interlaced)

  Mac®: Power Mac (up to 3840 x2160) HDMI/DisplayPort)

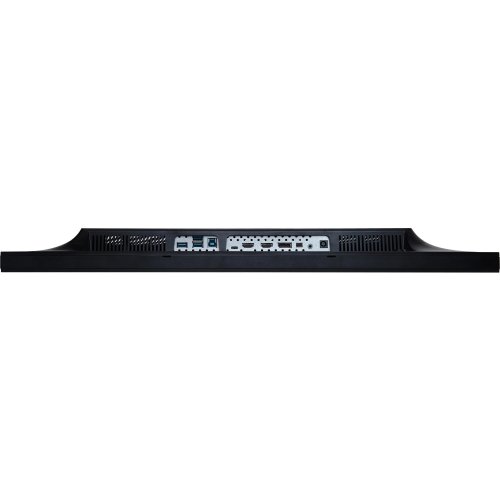

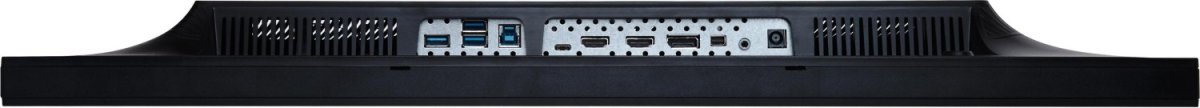

• CONNECTOR

  Digital: DisplayPort 1.4 HDR ready x 1

  Mini DP 1.4 HDR ready x 1

  HDMI 2.0 x 2

  Audio Out: 3.5mm Mini Phone Jack Audio out x 1

• USB

  USB3.1 Gen 1 Type C upstream x1 and Type B upstream x1

  USB3.1 Gen 1 Type A downstream x 3

• POWER

  Power: 7.4 x 5.1 x 10 External DC connector

  Voltage: AC 100-240V (Universal); 50/60Hz

  Consumption: 67W

  Optimise: 55W

  Conserve: 45W

• MODEL COLOUR

  Black

• ERGONOMICS

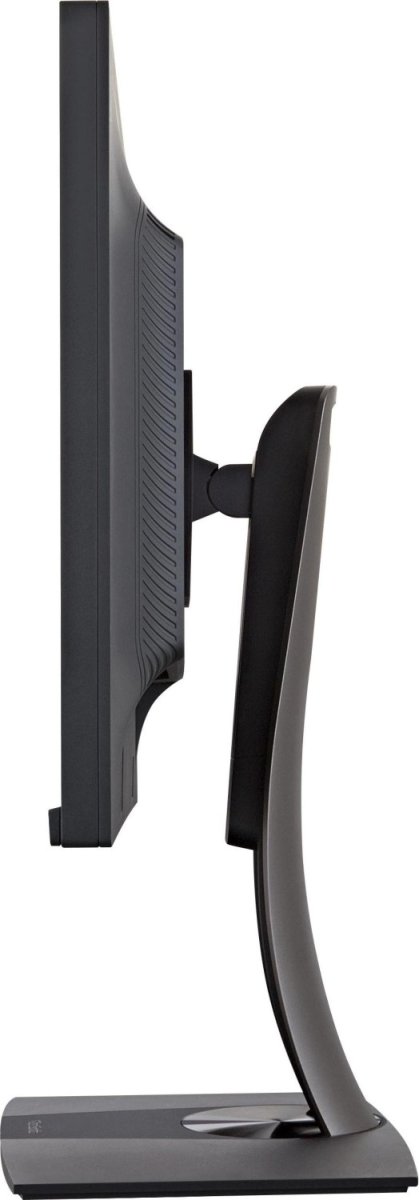

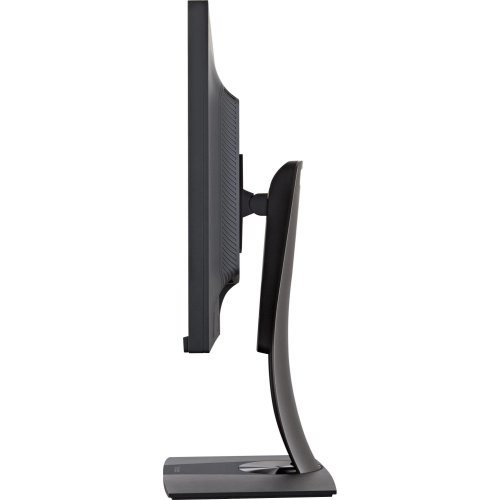

  Tilt: -5.0° ~ 21.0°

  Swivel: 120°

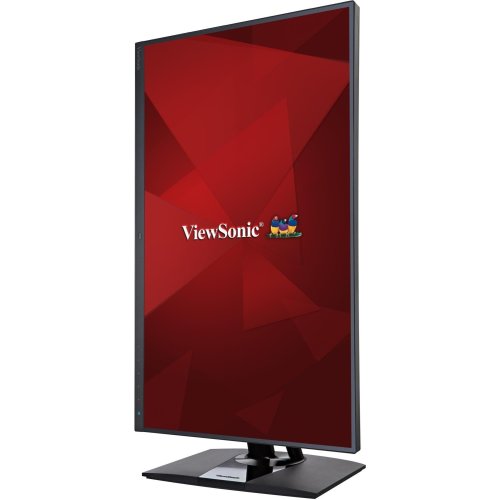

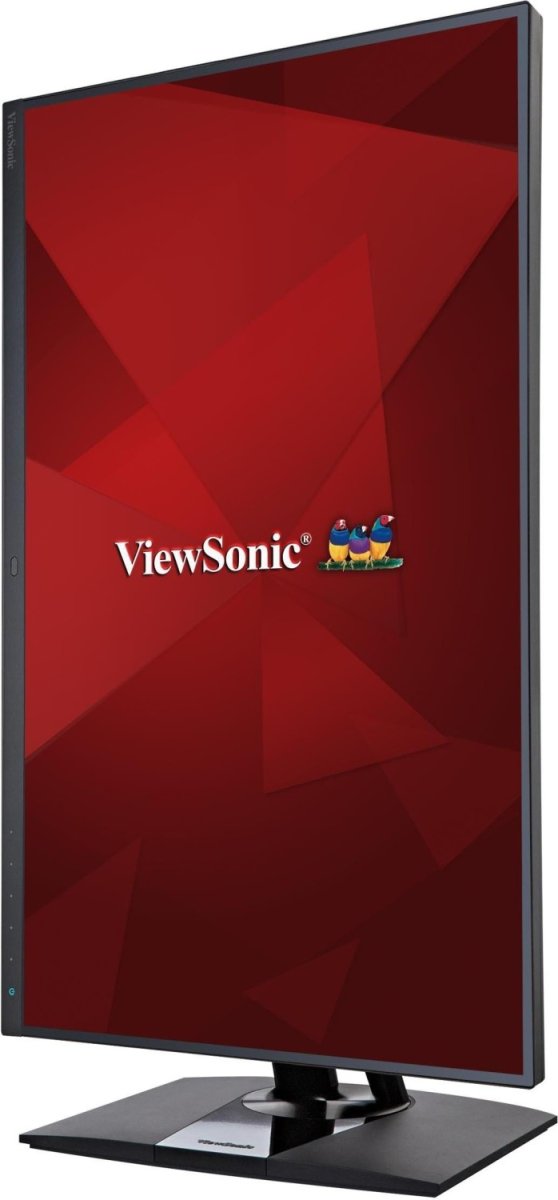

  Pivot: 0~90 degree (Clockwise and Counter Clockwise)

  Height Adjustment: 0~130mm

• WALL MOUNT

  VESA®: 100mm x 100mm

• OPERATING CONDITIONS

  Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)

  Humidity: 20% to 90% (no condensation)

• DIMENSIONS (W X H X D) (MM)

  Physical with stand (mm): 612.4 mm (W) x 545.51 mm (H) x 214.96 mm (D)

  Physical without stand (mm): 612.4mm (W) x 362.7 mm (H) x 57.08 mm (D)

  Packaging (mm): 720 mm (W) x 268 mm (H) x 460 mm (D)

• WEIGHT

  Net with stand (kg): 6.4 kg

  Net without stand (kg): 3.92 kg

  Gross (kg): 10.13 kg

• REGULATIONS

  cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, VCCI, PSE, KC, e-Standby, CCC, China RoHS, CEL

• PACKAGE CONTENTS

  LCD Display

  AC/DC Adapter

  Power Cable(cable length :1.8M)

  Mini DP to DisplayPort Cable (cable length :1.8M)

  USB3.1 Gen 1 Type-C Cable(cable length :1.8M)

  USB3.0 Up Stream Cable(cable length :1.8M)

  Quick Start Guide

  ViewSoinc Wizard CD-ROM

  *Actual content may differ from market to market
