PARAMETRY:

• LCD PANEL

  Panel Size: 32"

  Type/ Tech: TFT LCD Module with LED Backlight

  Display Area (mm): 698.4 (H) x 392.85 (V)

  Aspect Ratio: 16:09

  Resolution: 1920 x 1080

  Colors: 16.7M colors

  Brightness: 350 nits (typ.)

  Contrast Ratio: 1200:1 (typ.)

  Response Time: 8 ms

  Viewing Angles: H = 178, V = 178 (typ.)

  Backlight: WLED

  Backlight Life: 30,000 Hours Min.

  Hardness: 3H

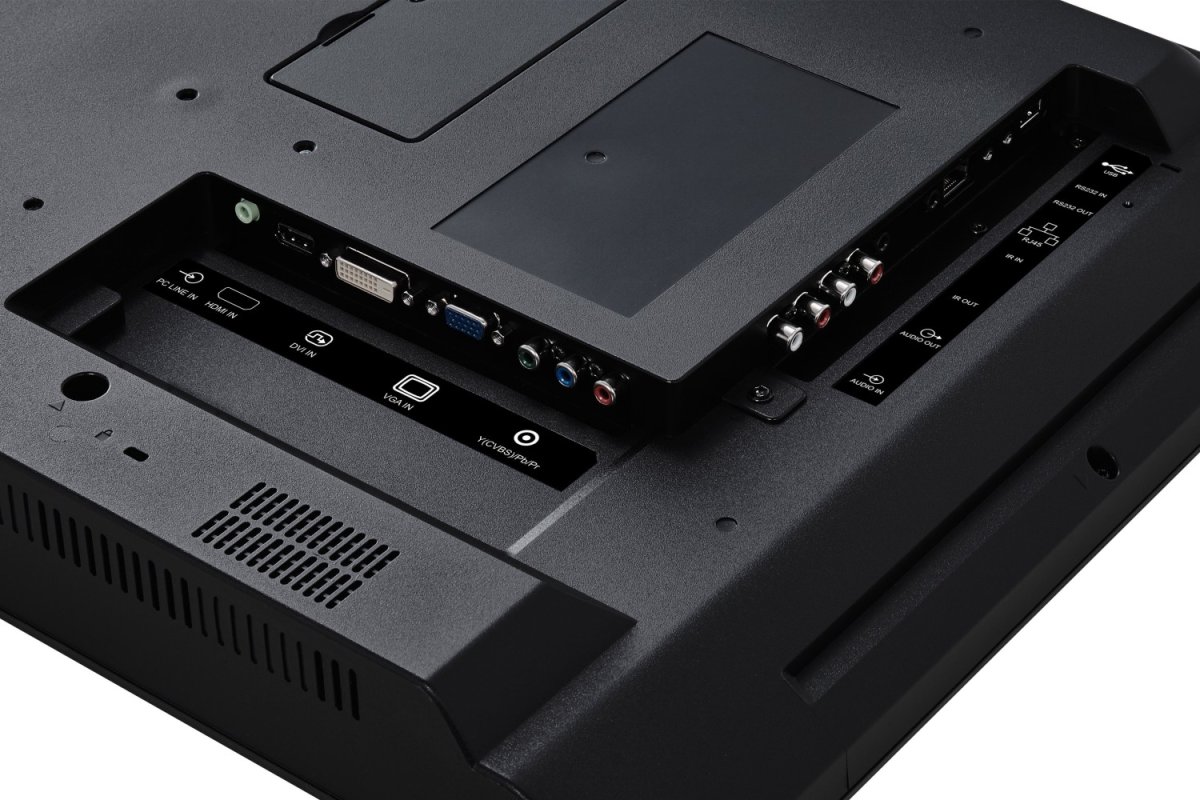

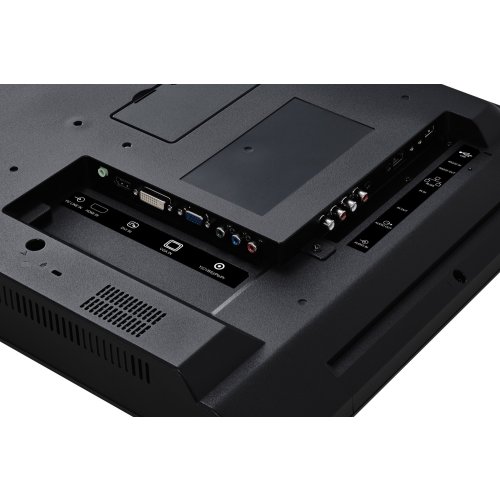

• INPUT

  HDMI: x 1

  RGB / VGA: x 1

  DVI: x 1

  Audio: x1 PC audio (3.5 mm), x 1 (RCA L/R)

  CVBS (AV): x 1 (Share with Y)

  YPbPr: x 1

  RS232: x 1

  IR: x 1 (over audio port)

• OUTPUT

  Audio: x 1 (RCA L/R)

  RS232: x 1

  IR: x 1 (over audio port)

• LAN

  RJ45: x 1

• USB

  2.0 Type A: x 1 (USB Playback)

• SPEAKERS

  10W x 2

• COMPATIBILITY

  VGA: Up to 1920 x 1080

  DVI: Up to 1920 x 1080

  HDMI: 480i, 480p,720p, 1080i, 1080p

  CVBS: 480i

  YPbPr: 480i, 480p,720p, 1080i, 1080p

• POWER

  Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

  Consumption: Normal 57 W, Max 81 W

• ERGONOMICS

  Wall Mount (VESA® ): 100x100mm / 200x200mm ; Screw: M4*8 mm

• OPERATING CONDITIONS

  Temperature (º C): 5°C to 40°C

  Humidity: 20% ~ 80% non-condensing

• DIMENSIONS (W X H X D)

  Physical (mm / inch): 726.5 x 462.93 x 239.8 mm / 28.6 x 18.23 x 9.44 in. (with Stand)

  Physical w/o Stand (mm / inch): 726.5 x 425.4 x 63.6 mm / 28.6 x 16.75 x 2.5 inch

  Packaging (mm / inch): 818 x 547 x139 mm / 32.2 x 21.54 x 5.47 inch

• WEIGHT

  Net (kg / lb): 6.67 kg / 14.7 lbs (with Stand)

  Net w/o Stand (kg / lb): 5.20 kg / 11.46 lbs

  Gross (kg / lb): 7.8 kg / 17.20 lbs

• REGULATIONS

  Standard: CE, CB, RoHS, ErP, WEEE

• WHAT'S IN THE BOX?

  1. CDE3205-EP commercial display

  2. Remote Control with batteries

  3. User manual CD wizard

  4. Quick Start Guide

  5. Power Cables

  6. VGA cable

  7. RS232 cable

  8. RS232 daisy chain cable (2.4mm – 2.4mm)

  9. IR sensor cable
