DISPLAY
DISPLAY SIZE (IN.)
55

VIEWABLE AREA (IN.)
55

RESOLUTION
3840 x 2160

LIGHT SOURCE
DLED

ORIENTATION
Portrait

STATIC CONTRAST RATIO
1,300:1

BRIGHTNESS
400 cd/m2

COLORS
1.07B

VIEWING ANGLES
178º horizontal, 178º vertical

BACKLIGHT LIFE (HOURS)
30,000

RESPONSE TIME (TYPICAL GTG)
9ms

PANEL SURFACE
Anti-Glare 3H, Haze = 2%, 7H / 4mm Tempered glass

PANEL TYPE
MVA

ASPECT RATIO
16:9

OPERATION RATING
16/7

AUDIO
INTERNAL SPEAKERS
10-watt (x2)

CONNECTOR
3.5MM AUDIO IN
1

3.5MM AUDIO OUT
1

HDMI 2.0 (WITH HDCP 2.2)
3

DISPLAYPORT
1

ETHERNET LAN (RJ45)
1

VGA
1

RS232 IN
1

USB 2.0 TYPE A
3

EMBEDDED PLAYER
CPU
Multi-CPU (ARM Cortex A73 x 2 + Cortex A53 x 2)

GPU
G51MP2

OPERATING SYSTEM
Android™ 8.0

RAM
2GB

MEMORY TYPE
DDR4

STORAGE
STORAGE CAPACITY
16GB

STORAGE TYPE
eMMC

POWER
VOLTAGE
100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

CONSUMPTION (MAX)
149W

CONSUMPTION (TYPICAL)
126W

STAND-BY
<0.5W

OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 - 40º C)

HUMIDITY (NON-CONDENSING)
10-85%

WEIGHT (IMPERIAL)
GROSS (LBS)
164.7

NET (LBS)
138.2

WEIGHT (METRIC)
GROSS (KG)
74.7

NET (KG)
62.7

DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
38.2 x 80.1 x 24.0

PHYSICAL (IN.)
30.3 x 73.6 x 17.7

DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
970.0 x 2034.0 x 609.0

PHYSICAL (MM)
768.5 x 1870.0 x 400.0

GENERAL
REGULATIONS
cTUVus, FCC, Energy Star, CE, CB, RoHS, ErP, EEI, WEEE, BSMI

PACKAGE CONTENTS
EP5542 Multimedia Digital Poster, Remote Control with batteries, Quick Start Guide, Power Cable

RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.

WARRANTY
One-year limited warranty on parts, labor and backlight

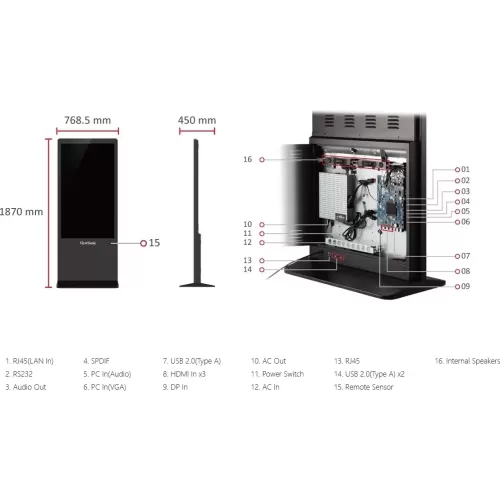

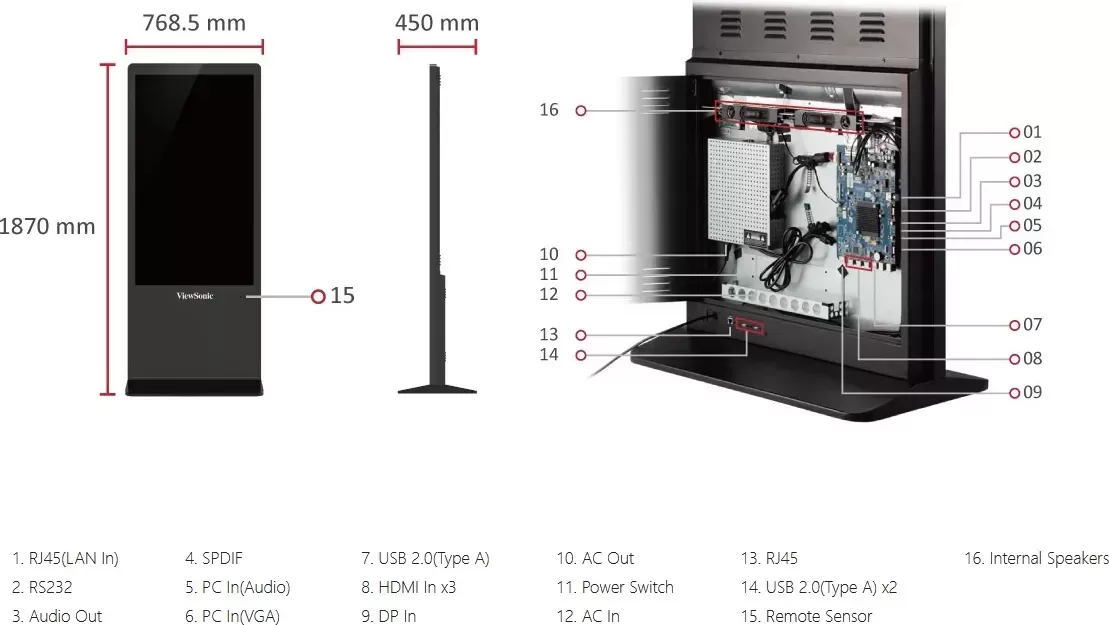

DIMENSIONS
30.3 x 73.6 x 17.7 in / 768.5 x 1870.0 x 400.0 mm
