Specification
Screen Size: 216''
Display Area (mm): 4800 (H) x 2700(V)
Native Resolution: 1920x1080
Panel Technology: Direct view LED
LED Package Type: SMD 3 in 1
Bonding Wire: Gold
Pixel Pitch (mm): 2.50
Refresh Rate: 4440Hz
Brightness (max.): 600 nits (8 levels adjustable)
Contrast Ratio (typ.): 6000:1
Orientation: Landscape / Portrait
Viewing Angles (typ.): H = 160, V = 160
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 64GB
(56GB available storage)
Embedded OS: Android 9.0
Resolution Support: VGA(640 x 480) to
1080p(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
Horizontal Frequency: 23-120 kHz
Vertical Scan Rate: 15-135 Hz
Input
HDMI: x5
(HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2)
USB Type A: x3
(USB2.0 x3)
RJ45 Input (Internet): x1
IR in: x1
Wi-Fi Input: 2.4G/5G Hz
USB Type C: x1
(Video input、 Power output (5V/2A))
HDBaseT: x1
(1080P@100m、4K30Hz@70m)
Output
HDMI out: x2
(HDMI 2.0 external x1,internal x1)
Speaker: 20W x2 (harman kardon)
Audio out (3.5mm): x1
USB Type A (Power): Shared with USB input
(5V/1.5A x3)
Control
RJ45 (LAN control): x1
USB Type A (Services): x1(shared with USB A input)
RS232 (DB 9-pin female): x1
IR Receiver: x1
Others
Power Supply Voltage: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
(vary by country)
Power Consumption: 2500W (typ), 4000W (max)
Operating Temperature: 0~40℃
LED Module Quantity: 128
Ingress Protection Rating: IP30(Front)
Net Weight: 661 lbs
(300 kg)
Gross Weight: 1129 lbs
(512 kg)

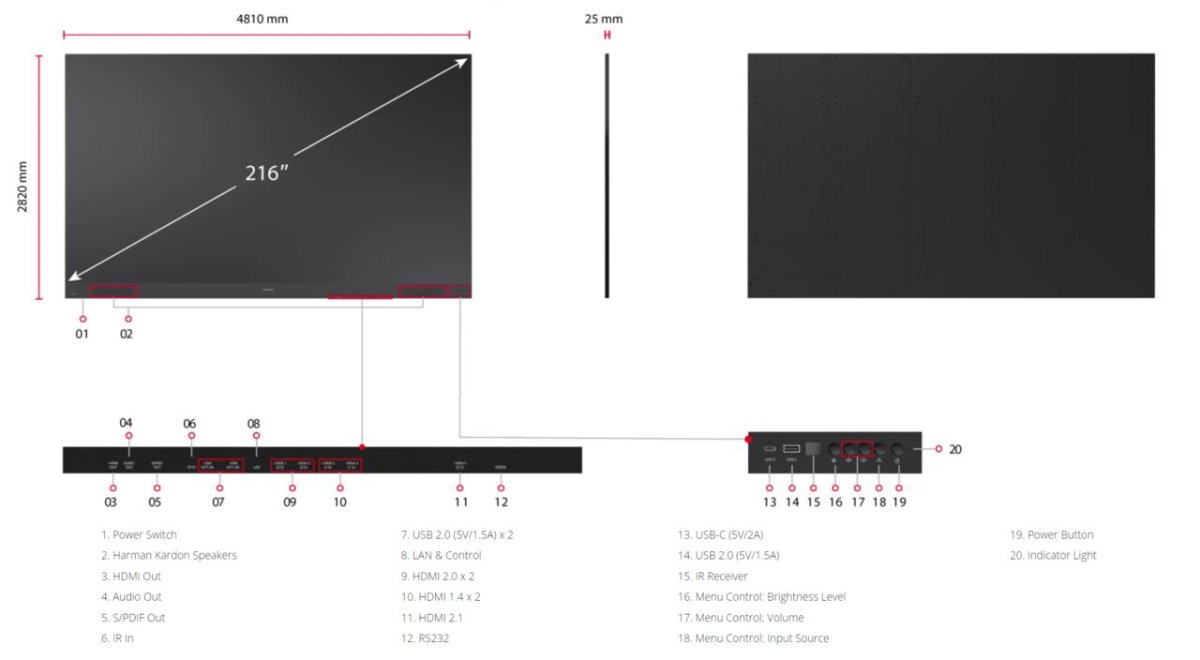

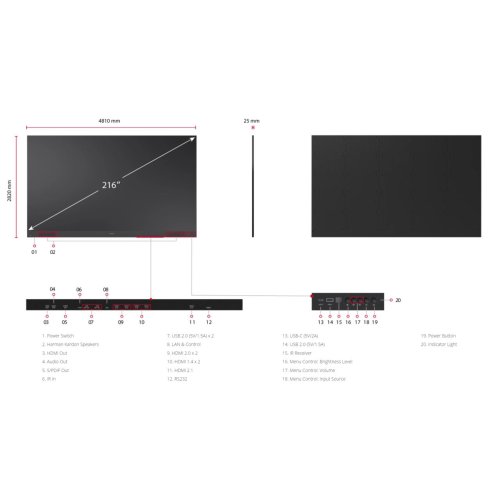

Screen Dimensions (WxHxD): 189.4x111x1 inches
(4810 x 2820 x 25 mm)
Screen Dimensions (WxHxD) with wall mount: 189.4x111x2.2 inches
(4810 x 2820 x 57 mm)
Packing Dimensions (WxHxD): 109.4x27.9x37 inches
(2780x710x940 mm)
Standard Accessories
Power Cord: x2
LAN Cable (Cat 5A): x1(5m)
IR Extender Cable: x1(3m)
Remote Control: x1
QSG: x1
Wall Mount: x1
Spare Parts: LED PCB Unit x7
Maintenance Tool: LD-MK-001 x1
Optional Accessories
Maintenance Tool: LD-MK-001
ViewBoard Cast Button(USB-C): VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
