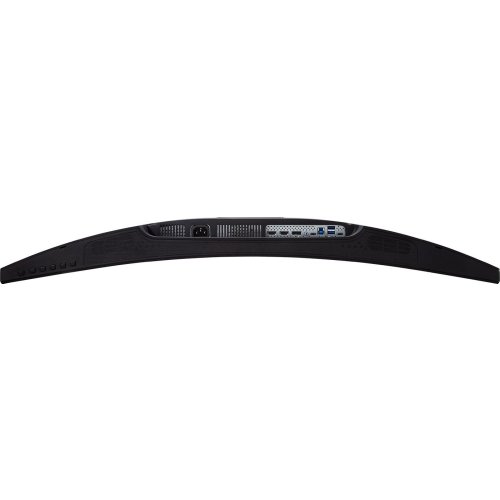

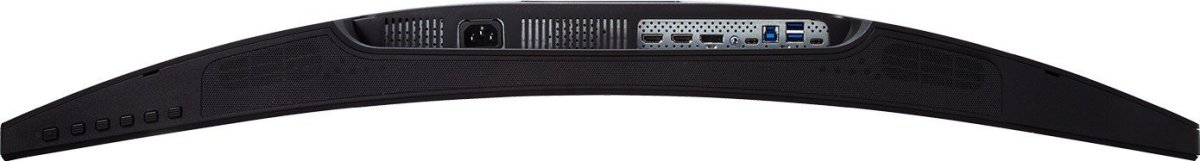

1. VESA Compatible (Wall Mount 100 x 100 mm)
2. Menu Controls
3. USB 3.1 Type A (x3)
4. USB 3.1 Type B
5. USB 3.1 Type C
6. HDMI (x2)
7. DisplayPort
8. Audio In
9. Aduio Out
10. DC In
11. Kensington Lock Slot

 PARAMETRY:

• LCD PANEL

  Monitor Size : 38”W (37.5” Viewable)

  Panel Technology : IPS TFT LCD

  Resolution : WQHD+ 3840 x 1600

  Display Area : 879.67 mm (H) x 366.53 mm (V)

  Aspect Ratio : 21:9

  Brightness : 300 cd/m2 (Typ)

  Contrast Ratio : 1000:1 (Typ)

  Dynamic Contrast Ratio : 20,000,000:1

  Viewing Angle : 178 degrees / 178 degrees (Typ)

  Refresh Rate : 60Hz

  Response Time : GTG: 5 ms (Typ)

  Colours : 1.07 Billion colours (10bit)

  Colour Gamut : Adobe RGB: 75.67% Coverage / 79.67% Size (Typ)

  NTSC:76.12% Coverage / 72.71% Size (Typ)

  sRGB:99.52% Coverage / 107.4% Size (Typ)

  REC709:99.52% Coverage / 107.4% Size (Typ)

  SMPTE-C:100% Coverage / 116.06% Size (Typ)

  EBU:98.04% Coverage / 106.19% Size (Typ)

  DCI-P3: 79.22% Coverage / 79.22% Size (Typ)

  Pixel Size : 0.229 mm (H) x 0.229 mm (V)

• INPUT SIGNAL

  Frequency : HDMI/ DisplayPort/ Type-C: Fh = 15 ~ 135KHz ; Fv = 24 ~ 75Hz

  Sync : HDMI: TMDS

  DisplayPort/ Type-C: Mini-Packet

• COMPATIBILITY

  PC : PC Compatibles (3840 x 1600 HDMI/DisplayPort Non-Interlaced)

  Mac® : Power Mac (up to 3840 x1600 HDMI/DisplayPort)

• CONNECTOR

  Digital : DisplayPort 1.4 HDR ready x 1

  HDMI 2.0 x 2

  Type-C x 1

  Analog : N/A

  Audio Out : 3.5mm Mini Phone Jack Audio out x 1

  Audio In : 3.5mm Mini Phone Jack Audio in x 1

• SPEAKERS

  5W * 2

• USB

  Upstream: USB 3.1 Gen 1 Type-C x 1 and Type-B x1

  Downstream: USB 3.1 Gen 1 Type-A x 3

• POWER

  Power : DC connector x 1

  Voltage : AC 100-240V (Universal); 50/60Hz

  Consumption : 66W

  Optimize : 57W

  Conserve : 48W

• MODEL COLOUR

  Black

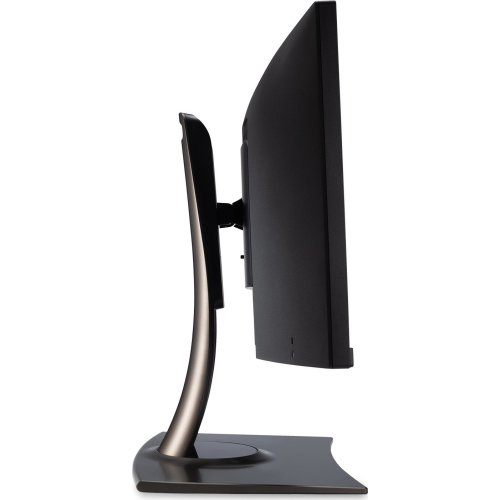

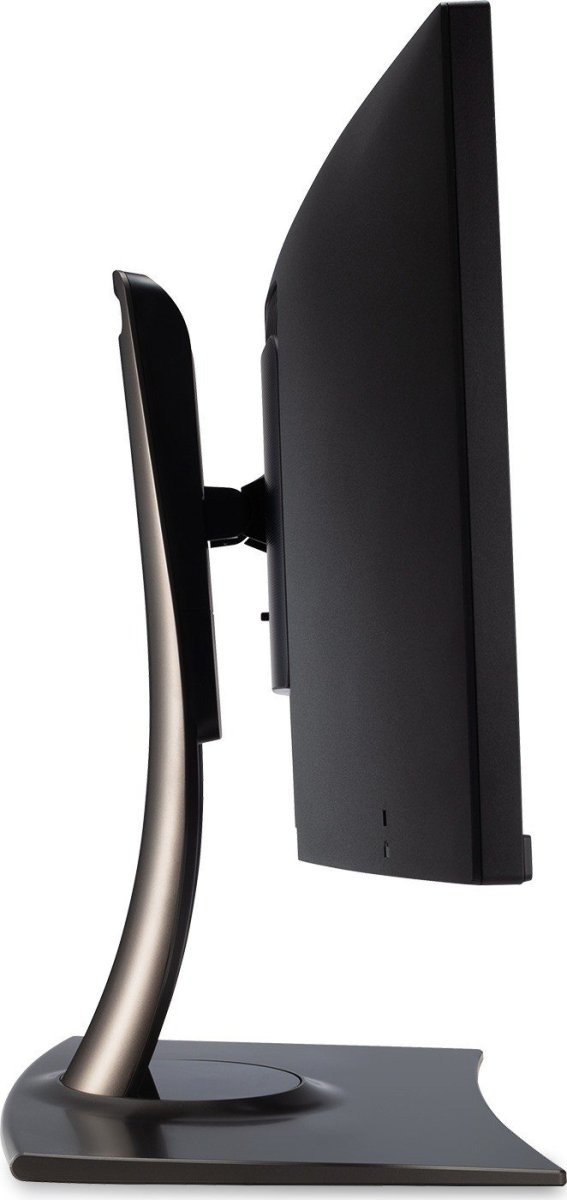

• ERGONOMICS

  Tilt : -1.0° ~ 21.0°

  Swivel : 120°

  Pivot : N/A

  Height Adjustment : 0~130 mm

• WALL MOUNT

  VESA® : 100 mm x 100 mm

• OPERATING CONDITIONS

  Temperature (º F / º C) : 32°F to 104°F (0°C to 40°C)

  Humidity : 20% to 90% (no condensation)

• DIMENSIONS (W X H X D) (MM)

  Physical With Stand (mm) : 896 mm (W) x 629 mm (H) x 299 mm (D)

  Physical Without Stand (mm) : 896 mm (W) x 398 mm (H) x 103 mm (D)

  Packaging (mm) : 1046 mm (W) x 490 mm (H) x 375 mm (D)

• WEIGHT

  Net With Stand (kg) : 12.69 kg

  Net Without Stand (kg) : 7.97 kg

  Gross (kg) : 19.88 kg

• REGULATIONS

  CB, CE, WEEE, RoHS, ErP, REACH, FCC-B, Energy Star, CU / EAC, UkrSEPRO

• PACKAGE CONTENTS

  LCD Display

  AC/DC Adapter

  Power Cable (1.8M)

  DisplayPort Cable (1.8M)

  HDMI 2.0 Cable (1.8M)

  USB3.1 Gen.1 Type C Cable(1.8M)

  USB 3.0 UpStream Cable (Type B to A) (1.8M)

  Audio Cable (1.8M)

  Quick Start Guide

  ViewSonic Wizard CD-ROM

  *Actual content may differ from market to market
