PARAMETRY:

• LCD PANEL

  Monitor Size : 43”W (42.5” Viewable)

  Panel Technology : IPS

  Resolution : UHD 3840 x 2160

  Display Area : 941 mm (H) x 529 mm (V)

  Aspect Ratio : 16:9

  Brightness : 350 cd/m2 (Typ)

  Contrast Ratio : 1100:1 (Typ)

  Dynamic Contrast Ratio : 120,000,000:1

  Viewing Angle : 178 degrees / 178 degrees (Typ)

  Response Time : GTG(AVR) : 5ms (Typ)

  Colours : 1.07 Billion colours (10-bit)

  Colour Gamut : 72% of NTSC (Typ)

  Pixel Pitch : 0.2451mm (H) x 0.2451mm (V)

• INPUT SIGNAL

  Frequency : Fh = 24 ~ 160KHz ; Fv = 50 ~ 75Hz

  Sync : TMDS

• COMPATIBILITY

  PC : Windows 10 certified

  Mac® : Power Mac tested

• CONNECTOR

  Digital : HDMI x 2

  DisplayPort x 1

  Mini DisplayPort x 1

  DisplayPort out x 1

  Analog : N/A

  Audio Out : Earphone out x 1 (3.5mm plug)

  Audio In : N/A

• SPEAKERS

  7W x 2

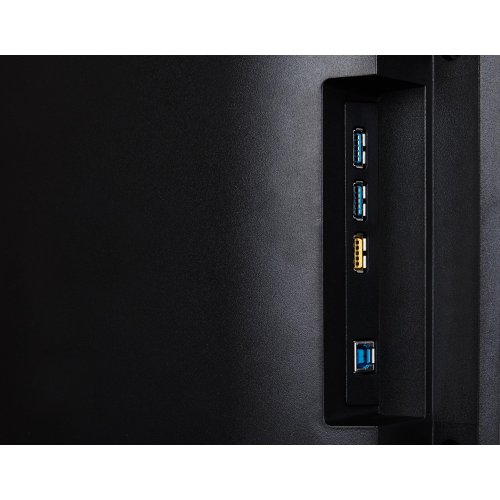

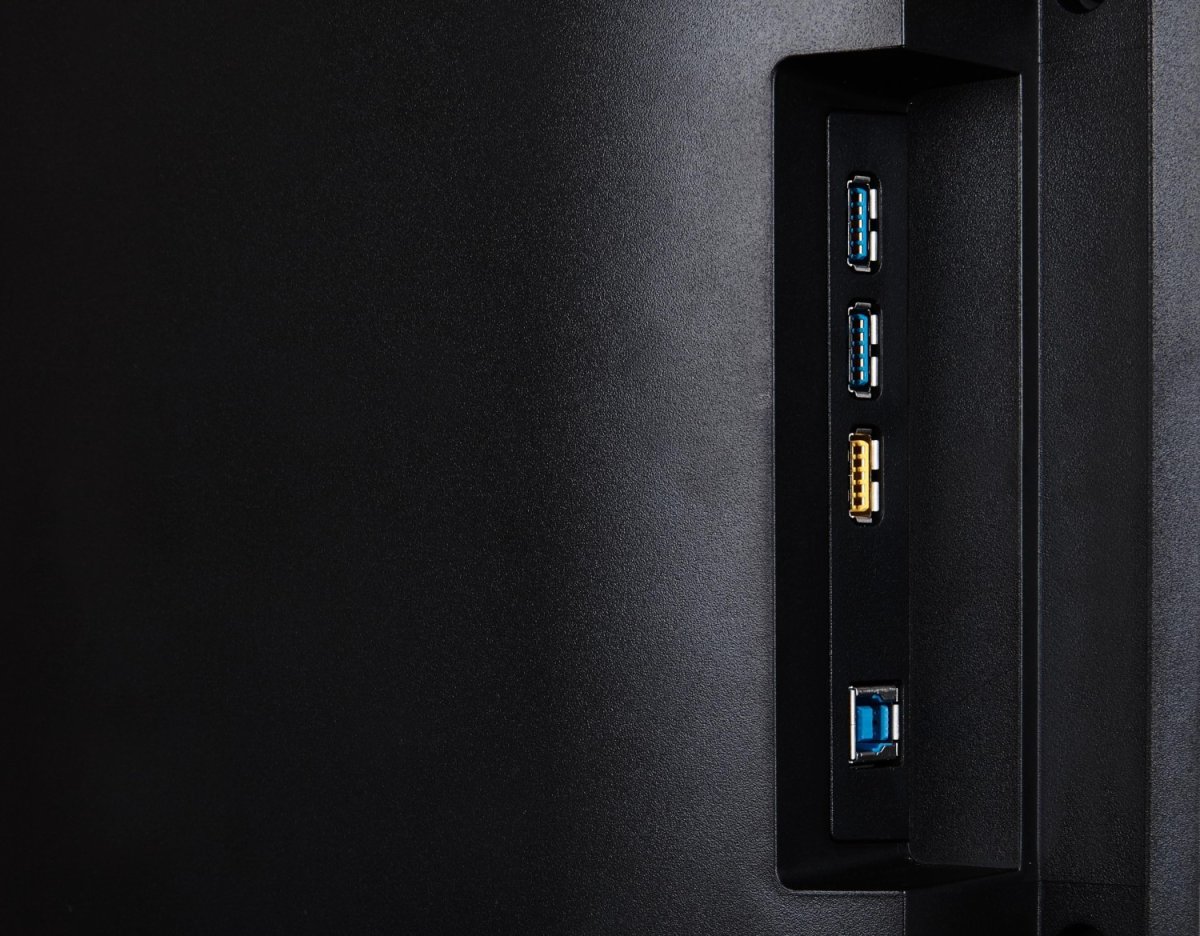

• USB

  USB 3.0 Type B upstream x 1

  USB 3.0 Type A downstream x 3 (including 1 with USB power charging function)

• POWER

  Power : 3-pin plug (CEE22) x 1

  Voltage : AC 100-240V (Universal); 50/60Hz

  Consumption : 84W

  Optimize : 66W

  Conserve : 52W

• ERGONOMICS

  Tilt : 12 ~ -5 degrees

  Swivel : N/A

  Rotation : N/A

  Height Adjustment : N/A

• WALL MOUNT

  VESA® : 200mm x 100mm

• OPERATING CONDITIONS

  Temperature (º F / º C) : 32°F to 104°F (0°C to 40°C)

  Humidity : 20% to 90% (no condensation)

• DIMENSIONS (W X H X D) (MM)

  Physical With Stand (mm) : 965.98mm (W) x 652.82mm (H) x 241.6mm (D)

  Physical Without Stand (mm) : 966mm (W) x 562mm (H) x 65mm (D)

  Packaging (mm) : 1102mm (W) x 790mm (H) x 324mm (D)

• WEIGHT

  Net With Stand (kg) : 14.42kg (31.80lbs)

  Net Without Stand (kg) : 11.3kg (24.91lbs)

  Gross (kg) : 19.37kg (42.71lbs)

• REGULATIONS

  FCC-B, ICES003, Energy Star, EPEAT Silver, CE, REACH, WEEE, EAC, UkrSEPRO, ROHS

• WARRANTY

  *Warranty offered may differ from market to market

• PACKAGE CONTENTS

  LCD Display

  Power Cable (1.5m)

  Mini DP to DP Cable (1.5m)

  HDMI Cable (1.5m)

  USB3.0 Cable (1.5m)

  Quick Start Guide

  *Actual content may differ from market to market

1. HDMI 2
2. HDMI 1
3. Mini DisplayPort
4. DisplayPort IN
5. DisplayPort OUT
6. Earphone/Audio
7. USB 3.0
8. Menu Control
9. Power
