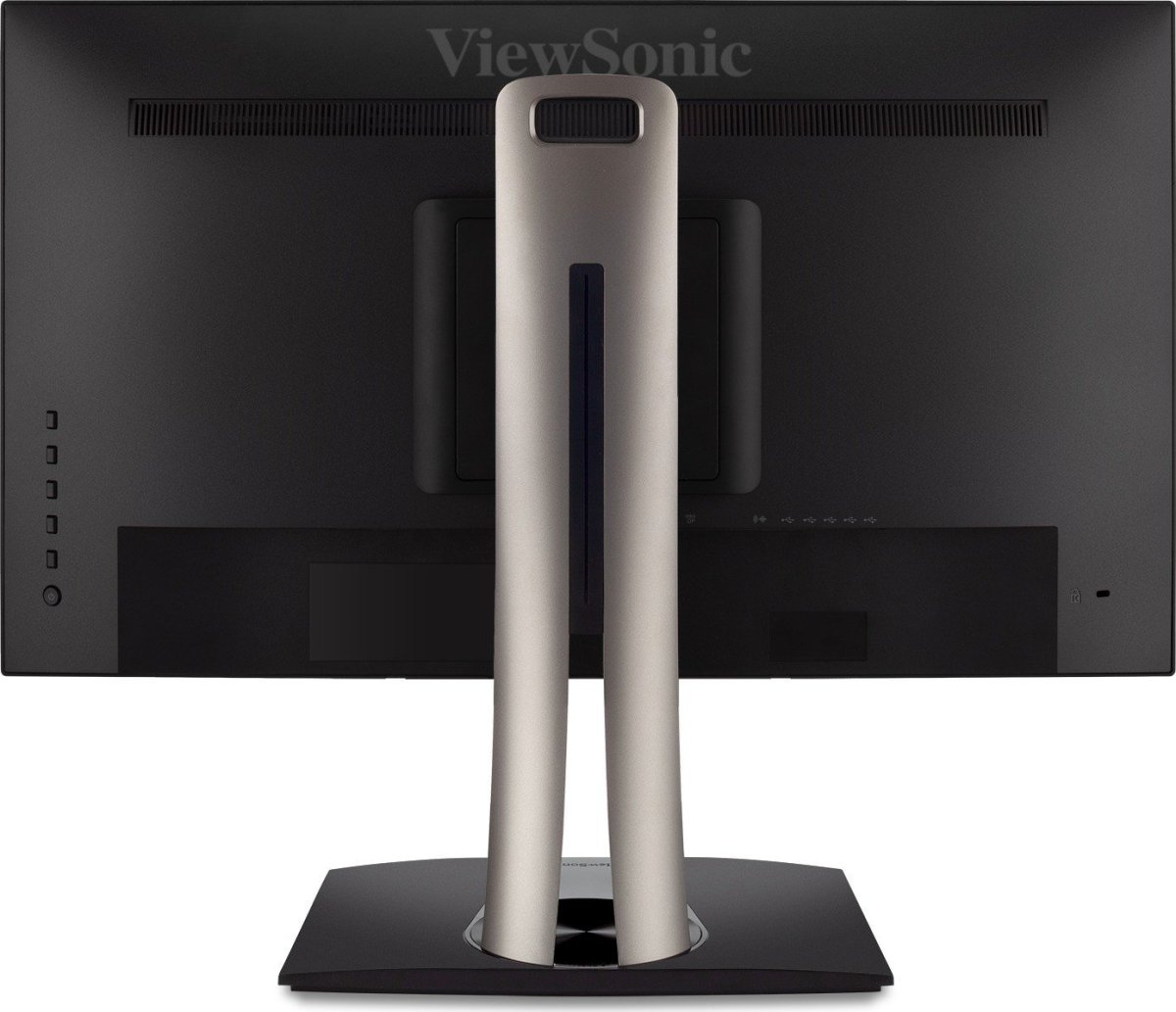

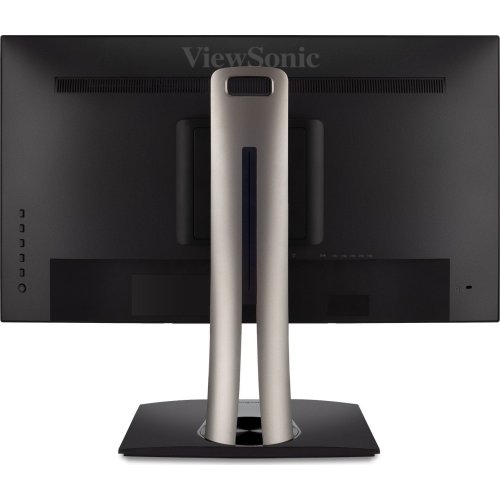

1. VESA Compatible (Wall Mount 100 x 100 mm)
2. Menu Controls

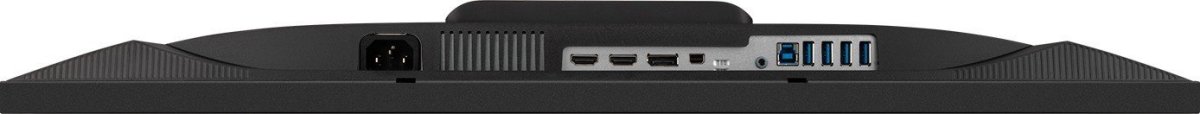

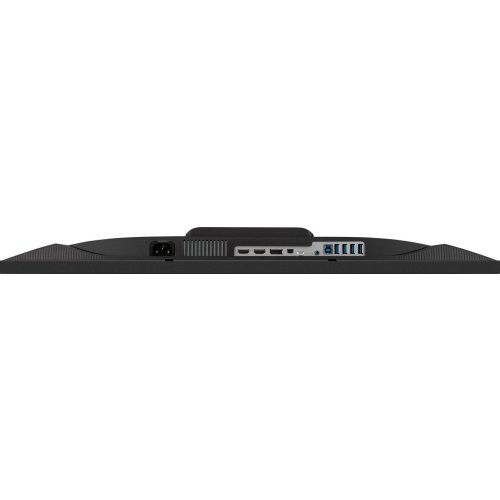

3. AC In
4. HDMI (x2)
5. DisplayPort In
6. Mini DisplayPort In
7. Audio Out
8. Audio In
9. USB 3.0 Type B
10. USB 3.0 Type A (x4)
11. Kensington Lock Slot

PARAMETRY:

• LCD PANEL

  Monitor Size : 32”W (31.5” Viewable)

  Panel Technology : IPS TFT LCD

  Resolution : UHD 3840 x 2160

  Display Area : 697.31mm (H) x 392.23mm (V)

  Aspect Ratio : 16:9

  Brightness : 350 cd/m2 (Typ)

  Contrast Ratio : 1300:1 (Typ)

  Dynamic Contrast Ratio : 20,000,000:1

  Viewing Angle : 178 degrees / 178 degrees (Typ)

  Refresh Rate : 24~75Hz

  Response Time : GTG(AVG): 5 ms

  Colours : 1.07 Billion colours

  Colour Gamut : NTSC: 75.44% Coverage

  AdobeRGB: 77.24% Coverage

  sRGB: 99.67% Coverage

  REC709: 99.67% Coverage

  SMPTE-C: 100% Coverage

  EBU:97.35% Coverage / 112% Size (Typ)

  Pixel Size : 0.1816mm (H) x 0.1816mm (V)

• INPUT SIGNAL

  Frequency : HDMI/ DisplayPort/ mini DP: Fh = 15 ~ 135KHz ; Fv = 24 ~ 75Hz

  Sync : HDMI: TMDS

  DisplayPort/ mini DP: Mini-Packet

• COMPATIBILITY

  PC : PC Compatibles (3840 x 2160 HDMI/DisplayPort Non-Interlaced)

  Mac® : Power Mac (up to 3840 x2160 HDMI/DisplayPort)

• CONNECTOR

  Digital : DisplayPort 1.4 x 1

  Mini DP 1.4 x 1

  HDMI 2.0 x 2

  Audio Out : 3.5mm Mini Phone Jack Audio out x 1

  Audio In : 3.5mm Mini Phone Jack Audio in x 1

• SPEAKERS

  5W*2 Box

• USB

  USB3.0 Type B upstream x1

  USB3.0 Type A downstream x 4

• POWER

  Power : 3-pin plug (CEE22) x 1

  Voltage : AC 100-240V (Universal); 50/60Hz

  Consumption : 51W

  Optimize : 43W

  Conserve : 38W

• MODEL COLOUR

  Black

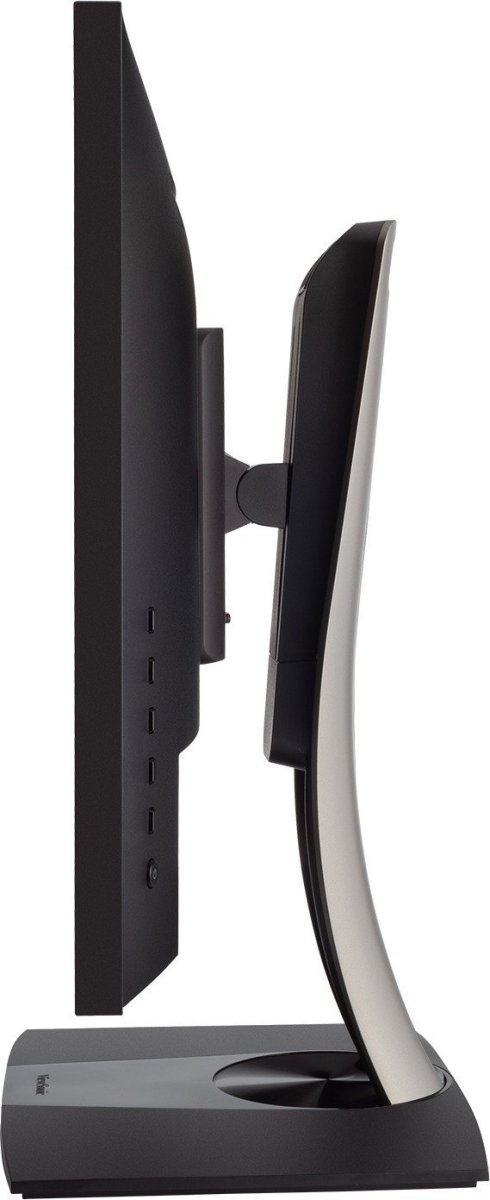

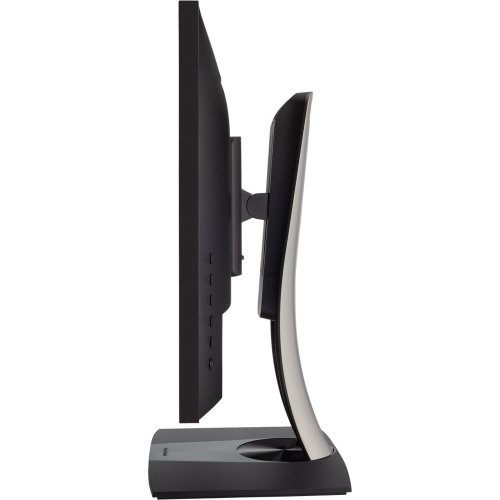

• ERGONOMICS

  Tilt : -5° ~ 21°

  Swivel : 120°

  Pivot : 0~90 degree (Clockwise and Counter Clockwise)

  Height Adjustment : 0~130mm

• WALL MOUNT

  VESA® : 100mm x 100mm

• OPERATING CONDITIONS

  Temperature (º F / º C) : 32°F to 104°F (0°C to 40°C)

  Humidity : 20% to 90% (no condensation)

• DIMENSIONS (W X H X D) (MM)

  Physical With Stand (mm) : 714 mm (W) x 636 mm (H) x 265 mm (D)

  Physical Without Stand (mm) : 714 mm (W) x 410 mm (H) x 53 mm (D)

  Packaging (mm) : 835 mm (W) x 528 mm (H) x 320 mm (D)

• WEIGHT

  Net With Stand (kg) : 10.33 kg

  Net Without Stand (kg) : 6.43 kg

  Gross (kg) : 14.65 kg

• REGULATIONS

  UL, cUL, FCC-B, Energy Star, CE, CB, RoHS, ErP, REACH, EEL, WEEE, CU/EAC, UkrSEPRO

• PACKAGE CONTENTS

  LCD Display

  Power Cable (cable length :1.8M)

  DP Cable (mini DP to DP) (cable length :1.8M)

  HDMI 2.0 Cable (cable length : 1.8M)

  USB 3.0 Upstream Cable (Type B to A) (cable length :1.8M)

  Audio Cable (cable length : 1.8M)

  Quick Start Guide

  ViewSonic Wizard CD-ROM

  *Actual content may differ from market to market
