SPECIFICATIONS

• SPECIFICATION

  Projection System: 0.47" 4K-UHD

  Native Resolution: 3840x2160

  DMD Type: DC3

  Brightness: 3500 ANSI Lumens

  Contrast Ratio: 3000000:1

  Display Colour: 1.07 Billion Colours

  Light Source Type: Laser Phosphor system

  Light Source Life (Normal): up to 20000

  Lamp Watt: Nichia MCD

  Lens: F=1.9-2.49, f=12-15.6mm

  Projection Offset: 100%+/-5%

  Throw Ratio: 1.13-1.47

  Optical Zoom: 1.3X

  Digital Zoom: 0.8x- 2.0x

  Image Size: 60"-300"

  Throw Distance: 1.5-8.79m

  (100"@2.5m)

  Keystone: +/- 40° (V)

  Audible Noise (Normal): 34dB

  Audible Noise (Eco): 32dB

  Input Lag: 50ms

  Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)

  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p,2160P

  Video Compatibility: NTSC, PAL, SECAM

  Horizontal Frequency: 15K-102KHz

  Vertical Scan Rate: 23-120Hz

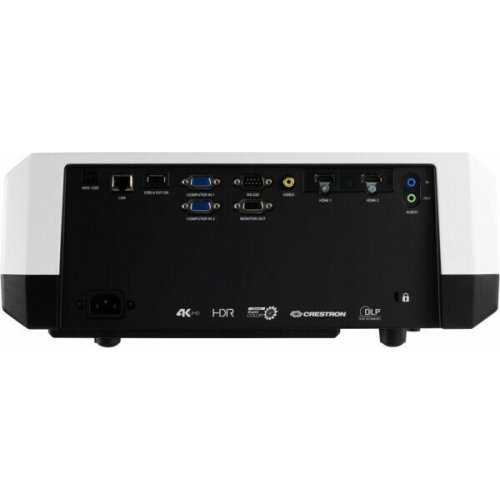

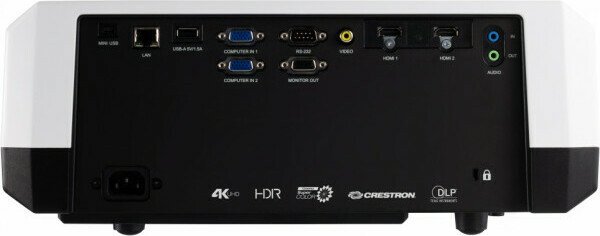

• INPUT

  Computer in (share with component): 2

  Composite: 1

  HDMI: 2

  (HDMI 2.0/HDCP 2.2 x1, HDMI2.0/HDCP 1.4 x1)

  Audio-in (3.5mm): 1

  USB Type A: 1

  (USB2.0 Reader, share with power)

  RJ45 Input: 1

  (LAN control)

• OUTPUT

  Monitor out: 1

  Audio out (3.5mm): 1

  Speaker: 2W

  USB Type A (Power): 1 (5V/ 1.5A)

• CONTROL

  RS232 (DB 9-pin male): 1

  RJ45: 1

  USB Type Mini B (Services): 1

• OTHERS

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz

  (AC in)

  Power Consumption: Normal: 260W

  Standby: <0.5W

  Operating Temperature: 0~40℃

  Net Weight: 7.14Kg

  Gross Weight: 9.11Kg

  Dimensions (WxDxH) with Adjustment Foot: 396x314x157mm

  Packing Dimensions: 499x402x261mm

  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Total 22 languages

  User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages

• STANDARD ACCESSORY

  Power Cord: 1

  VGA Cable: 1

  Remote Control: 1

  QSG: 1
