Specyfikacja techniczna

• SPECIFICATION

  Projection System: 0.47" 1080p

  Native Resolution: 1920x1080

  DMD Type: DC3

  Brightness: 4000 ANSI Lumens

  Contrast Ratio with SuperEco Mode: 12000:1

  Display Color: 1.07 Billion Colours

  Light Source Type: Lamp

  Light Source Life (Normal): 4000

  Light Source Life (SuperEco): 20000

  Lamp Watt: 245W

  Lens: F=2.0~2.05, f=15.843-17.445mm

  Projection Offset: 110%+/-6%

  Throw Ratio: 1.5-1.65

  Optical Zoom: 1.1x

  Digital Zoom: 0.8x-2.0x

  Image Size: 30"-300"

  Throw Distance: 1.00m-10.96m

  (100"@3.32m)

  Keystone: +/- 40° (V)

  Lens Shift V. Range: Yes (+/- 5%)

  Audible Noise (Normal): 32dB

  Audible Noise (Eco): 27dB

  Input Lag: 16ms

  Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

  *RB-Reduced Blanking

  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  Video Compatibility: NTSC, PAL, SECAM

  Horizontal Frequency: 15K-102KHz

  Vertical Scan Rate: 23-120Hz

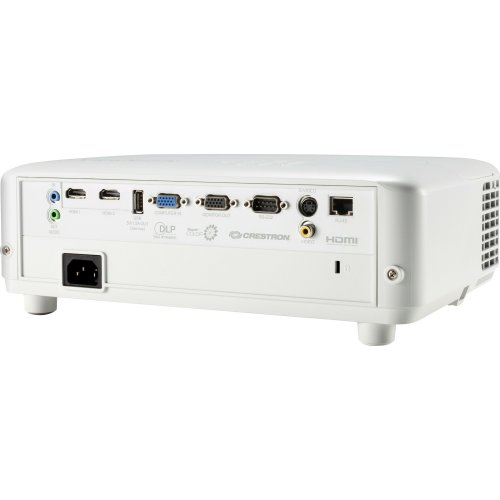

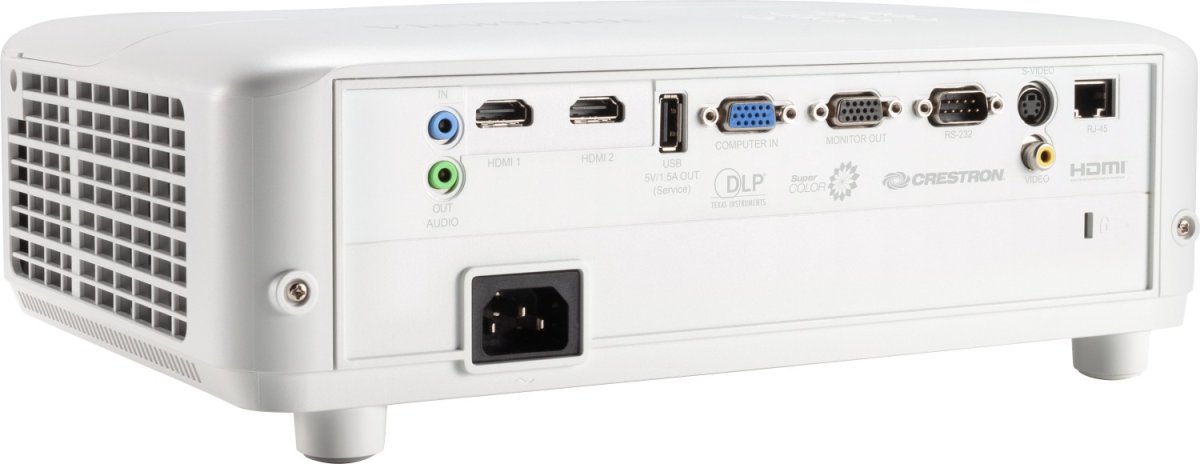

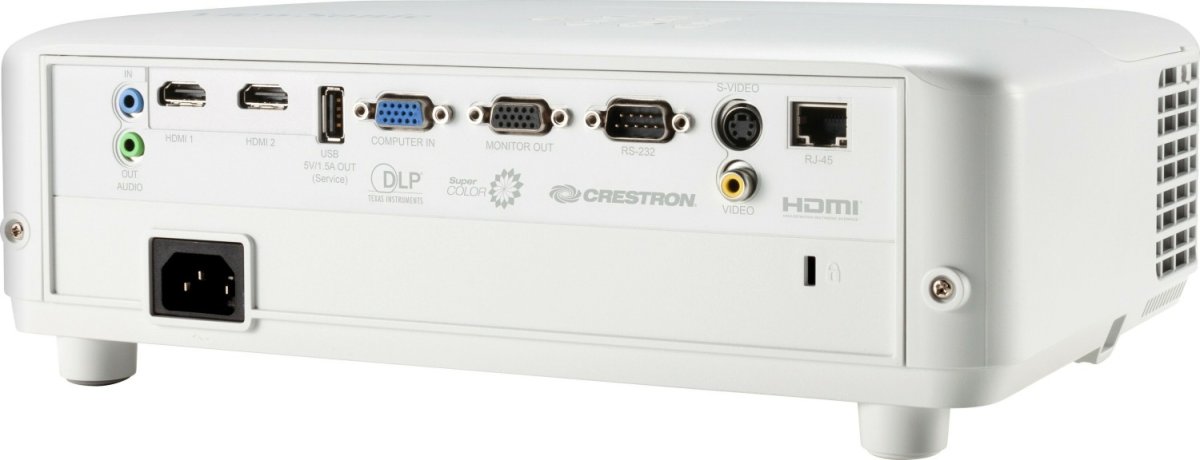

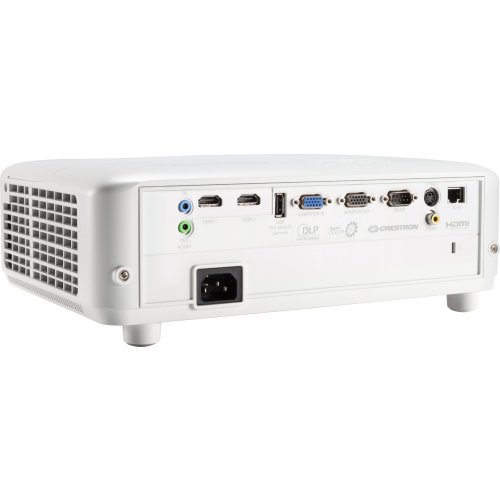

• INPUT

  Computer in (share with component): 1

  Composite: 1

  S-Video: 1

  HDMI: 2

  (HDMI 1.4/ HDCP 1.4)

  Audio-in (3.5mm): 1

  RJ45 Input: 1

  (LAN control)

• OUTPUT

  Monitor out: 1

  Audio out (3.5mm): 1

  Speaker: 10W

  USB Type A (Power): 1 (5V/ 1.5A)

• CONTROL

  RS232 (DB 9-pin male): 1

  RJ45: 1

• OTHERS

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz

  (AC in)

  Power Consumption: Normal: 355W

  Standby: <0.5W

  Operating Temperature: 0~40℃

  Net Weight: 2.79kg

  Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm

  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages

• STANDARD ACCESSORY

  Power Cord: 1

  VGA Cable: 1

  Remote Control: 1

  (w/ laser pointer)

  QSG: 1

• OPTIONAL ACCESSORY

  Lamp/Light Source: RLC-120
