Image Display
Projector Display System     0.55" Digital Micromirror Device DLP by Texas Instruments
Native Resolution     XGA (1024 x 768)
Number of Pixels     786,432
Lumens Brightness     2500
Contrast Ratio     2400:1 (With DCR)
Aspect Ratio     4:3 (16:9 Compatible)
System     NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60, SECAM
HDTV Compatibility     720p, 1080i (24 fps, 25fps, 30fps)
Lens System
Lens     F = 2.83, f = 7.73 mm
Focus/Zoom Adjusting     Manual/Manual 1.2x
Lens Shift     None
Recommended Projection Size     40 – 300"
Features
Keystone Correction     ±40° Vertical Digital
Ceiling Mountable     Yes
Rear Screen Projection     No
Projection Tilt Option     Tilt Adjustment Foot
Built-in Speaker     5 Watt x 2

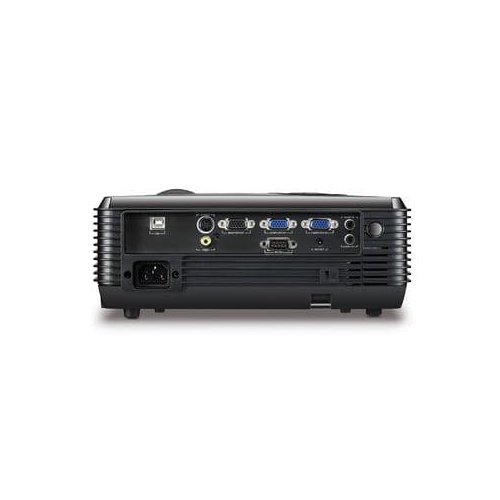

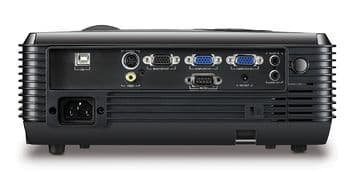

Input/Output Connectors
Input Terminals     Computer RGB (15-Pin Mini D-Sub Can Accept Component Input) x 2
Composite (RCA) x 1
S-Video (4-Pin Mini DIN) x 1
Audio (3.5mm Mini Jack) x 1
Control (RS-232 9-Pin D-sub) x 1
Control (RJ-45) x 1
Output Terminals     Computer RGB (15-Pin Mini D-Sub) x 1
Audio (3.5mm Mini Jack) x 1
Control Protocol     Detailed in Manual
General
Lamp (Bulb)     230 Watt
Fan Noise     29dB Eco Mode
30dB Normal Mode
Remote Control     IR Wireless
Power Requirements     100 – 240 V AC, 50/60 Hz Auto Switching
Dimensions (WxHxD)     11 x 4.5 x 8.58" (280 x 114 x 218 mm)
Weight     5.9 lb (2.68 kg)
